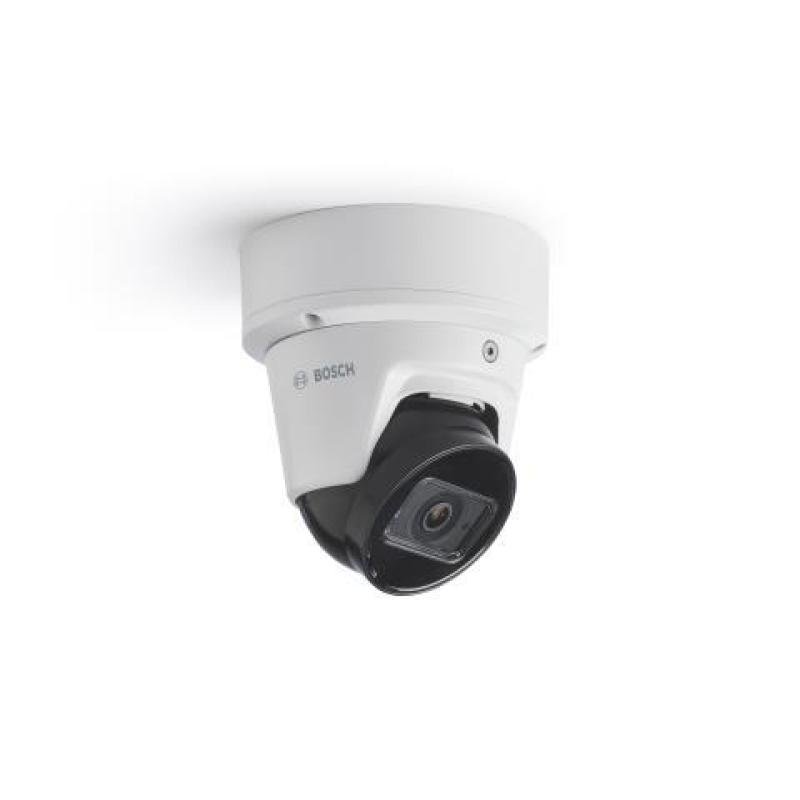

NET CAMERA TURRET 2MP/NTE-3502-F03L BOSCH

NET CAMERA TURRET 2MP/NTE-3502-F03L BOSCH
NET CAMERA TURRET 2MP/NTE-3502-F03L BOSCH
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
26,544ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 337430
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch FLEXIDOME IP turret 3000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 100°, Angle of rotation: 270°, Tilt angle range: 0 - 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Night vision distance: 15 m, LED type: IR, Infra-red wavelength: 850 nm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA TURRET 2MP/NTE-3502-F03L BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Housing material: Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Certification: EN 55032, CFR 47 FCC 15, B, AS/NZS CISPR 32 EN 50130-4, EN 50121-4 EN 50130-5 (IV); EN 60068-2-1, EN 60068-2-2, EN 60068-2-6, EN 60068-2-18, EN 60068-2-27, EN 60068-2-30, EN 60068-2-52, EN 60068-2-75, EN 60068-2-78, EN 60068-2-5 EN 62368-1 EN 60950-22 UL
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0
  • Field of view (FOV) angle: 100
  • Angle of rotation: 270
  • Tilt angle range: 0 - 78
  • Pan range: 0 - 350
  • White balance: Auto/Manual
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/25[30] - 1/15000
  • Adjustment shutter speed: Auto/Manual
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 1920 x 1080
  • Sensor type: CMOS
  • Number of lenses: 1
  • Night vision: Yes
  • Night vision distance: 15
  • LED type: IR
  • Number of illumination LEDs: 2
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 480/768 x 432
  • Supported video modes: 1080p/720p
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Voice codecs: AAC/G.711
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Di
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Composite video out: 1
  • Intelligent Video Surveillance (IVS) system features: People counting
  • Mirror: Yes
  • Security algorithms: 128-bit AES/256-bit AES/TLS
  • Behavior analysis: Line crossing detection
  • Power source type: DC,PoE
  • Power consumption (typical): 3.1
  • Power consumption (max): 9.5
  • Power consumption (Power over Ethernet (PoE)): 10.5
  • DC output voltage: 12
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -30 - 70
  • Operating relative humidity (H-H): 5 - 100
  • Storage relative humidity (H-H): 0 - 98
  • Height: 135
  • Diameter: 137
  • Weight: 1132.9
  • Compliance certificates: CE/RoHS
  • Number of cameras: 1
  • Units per Shipping Box: 12
  • Unit Calculated Volume: 0.009082
  • Unit Calculated Weight: 1.71
Specifications
Adjustment shutter speedAuto/Manual
Alarm input/outputYes
Angle of rotation270
Back Light Compensation (BLC)Yes
Behavior analysisLine crossing detection
Camera pan controlYes
Camera shutter speed1/25[30] - 1/15000
Camera shutter typeElectronic
Camera tilt controlYes
Card reader integratedYes
CertificationEN 55032, CFR 47 FCC 15, B, AS/NZS CISPR 32 EN 50130-4, EN 50121-4 EN 50130-5 (IV); EN 60068-2-1, EN 60068-2-2, EN 60068-2-6, EN 60068-2-18, EN 60068-2-27, EN 60068-2-30, EN 60068-2-52, EN 60068-2-75, EN 60068-2-78, EN 60068-2-5 EN 62368-1 EN 60950-22 UL
Compatible memory cardsMicroSDHC/MicroSDXC
Compliance certificatesCE/RoHS
Composite video out1
Connectivity technologyWired
Day/night modeYes
DC output voltage12
Diameter137
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle100
Form factorDome
Frame rate30
Height135
Housing materialPolycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresPeople counting
International Protection (IP) codeIP66
LED typeIR
Maximum resolution1920 x 1080
Minimum illumination0
MirrorYes
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance15
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)1920 x 1080
Number of illumination LEDs2
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)5 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Pan range0 - 350
Placement supportedOutdoor
Power consumption (max)9.5
Power consumption (Power over Ethernet (PoE))10.5
Power consumption (typical)3.1
Power source typeDC,PoE
Privacy maskingYes
Product colourWhite
Protection featuresImpact resistant
Quality of Service (QoS) supportYes
Security algorithms128-bit AES/256-bit AES/TLS
Sensor typeCMOS
Storage relative humidity (H-H)0 - 98
Storage temperature (T-T)-30 - 70
SummaryBosch FLEXIDOME IP turret 3000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 100°, Angle of rotation: 270°, Tilt angle range: 0 - 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Night vision distance: 15 m, LED type: IR, Infra-red wavelength: 850 nm
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 480/768 x 432
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Di
Supported video modes1080p/720p
Tilt angle range0 - 78
Total megapixels2
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video streamingYes
Voice codecsAAC/G.711
Weight1132.9
White balanceAuto/Manual
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

The FLEXIDOME IP turret 3000i IR is built for high quality, 24/7 performance, with a range of reliable surveillance features, including
Essential Video Analytics.
The compact and minimalist design provides ease of installation.

  • 5MP resolution with image quality up to 30 fps for highly detailed images
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • High Dynamic Range (120 dB) for challenging bright and dark scenes
  • Built-in IR illuminator with 15 m (49 ft) viewing distance

NameNET CAMERA TURRET 2MP/NTE-3502-F03L BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/5fc59f14-7d87-451d-b07b-36165875e3a7.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/5fc59f14-7d87-451d-b07b-36165875e3a7.Jpeg
Unit Calculated Volume0.009082
Unit Calculated Weight1.71
Units per Shipping Box12
Vendor Homepagehttps://www.boschsecurity.com/
