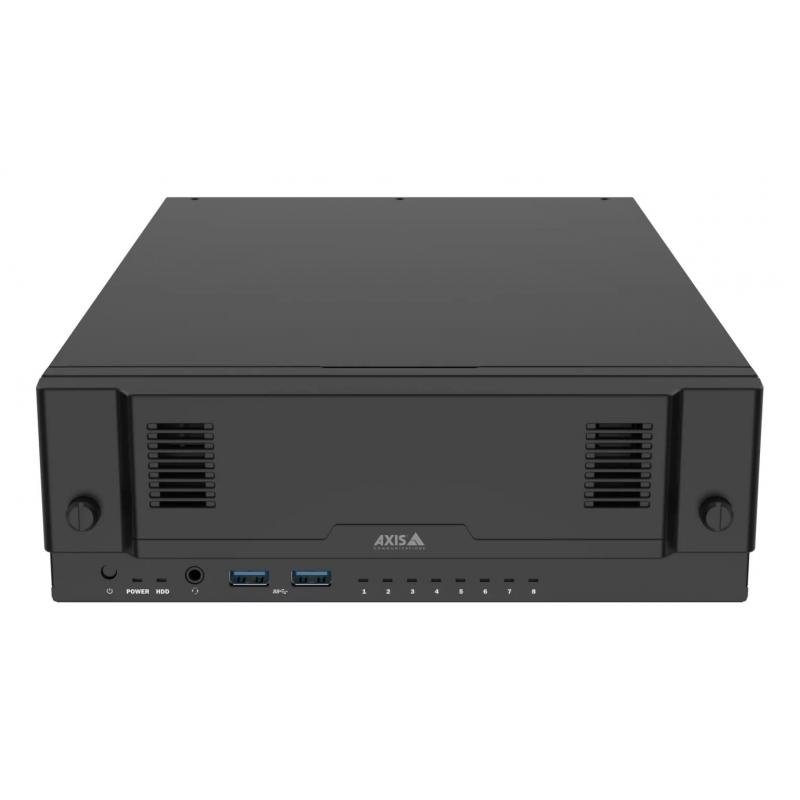

S2208 Mk II 4 TB

S2208 Mk II 4 TB
S2208 Mk II 4 TB
  • Video input channels: 8
  • Number of HDDs supported: 2
  • Ethernet LAN (RJ-45) ports: 2
229,709ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 433486
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: Axis S2208 Mk II 4 TB. Video input channels: 8 channels, Maximum resolution: 7680 x 4320 pixels, Internal memory: 16 MB. HDD capacity: 4 GB, Maximum storage capacity: 8 TB, HDD interface: SATA. Networking standards: IEEE 802.3at. Brand compatibility: Ajax, Product colour: Black, Certification: UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM. Power consumption (max): 270 W, Power consumption (typical): 75 W, AC input voltage: 100 - 240 V
  • Vendor Homepage: https://www.axis.com/products/axis-s2208-mk-ii
  • Name: NET CAMERA STATION S2208 MK II/4TB 02807-002 AXIS
  • Category Code: NVR
  • Model: 02807-002
  • Model name: S2208 Mk II 4 TB
  • Video input channels: 8
  • Maximum resolution: 7680 x 4320
  • Internal memory: 16
  • Internal memory type: DDR5
  • Number of HDDs installed: 1
  • HDD capacity: 4
  • Number of HDDs supported: 2
  • Total installed storage capacity: 4
  • Maximum storage capacity: 8
  • HDD interface: SATA
  • HDD size: 3.5
  • Ethernet LAN (RJ-45) ports: 2
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 8
  • HDMI output: Yes
  • HDMI ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • DC-in jack: Yes
  • Networking standards: IEEE 802.3at
  • Brand compatibility: Ajax
  • Product colour: Black
  • Reset button: Yes
  • Certification: UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
  • Built-in processor: Yes
  • Power consumption (max): 270
  • Power consumption (typical): 75
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Output current: 3.5
  • Total Power over Ethernet (PoE) budget: 135
  • Windows operating systems supported: Yes
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Storage temperature (T-T): -40 - 65
  • Storage relative humidity (H-H): 10 - 90
  • Compliance certificates: Trade Agreements Act (TAA)
  • Safety warning: CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252
  • Width: 330
  • Depth: 230
  • Height: 78
  • Weight: 5800
  • AC adapter included: Yes
  • Quick installation guide: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.05043
  • Unit Calculated Weight: 9
Specifications
AC adapter includedYes
AC input frequency50/60
AC input voltage100 - 240
Brand compatibilityAjax
Built-in processorYes
CertificationUL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Compliance certificatesTrade Agreements Act (TAA)
DC-in jackYes
Depth230
Ethernet LAN (RJ-45) ports2
HDD capacity4
HDD interfaceSATA
HDD size3.5
HDMI outputYes
HDMI ports quantity2
Height78
Internal memory16
Internal memory typeDDR5
Maximum resolution7680 x 4320
Maximum storage capacity8
Networking standardsIEEE 802.3at
Number of HDDs installed1
Number of HDDs supported2
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Output current3.5
Power consumption (max)270
Power consumption (typical)75
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
Product colourBlack
Quick installation guideYes
Reset buttonYes
Safety warningCAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252
Storage relative humidity (H-H)10 - 90
Storage temperature (T-T)-40 - 65
SummaryAxis S2208 Mk II 4 TB. Video input channels: 8 channels, Maximum resolution: 7680 x 4320 pixels, Internal memory: 16 MB. HDD capacity: 4 GB, Maximum storage capacity: 8 TB, HDD interface: SATA. Networking standards: IEEE 802.3at. Brand compatibility: Ajax, Product colour: Black, Certification: UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM. Power consumption (max): 270 W, Power consumption (typical): 75 W, AC input voltage: 100 - 240 V
Total installed storage capacity4
Total Power over Ethernet (PoE) budget135
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Video input channels8
Weight5800
Width330
Windows operating systems supportedYes
Specs
Category CodeNVR
Description

This 8-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, an 8-port PoE switch, and 4 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile
This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With eight channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It includes an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.

  • All-in-one solution with integrated PoE switch
  • 8 AXIS Camera Station Pro licenses included
  • Silent- won’t disturb operations
  • High cybersecurity features and standards
