01582-002

01582-002
01582-002
  • Video input channels: 16
  • Number of HDDs supported: 4
  • Ethernet LAN (RJ-45) ports: 18
  • Rack mounting: Yes
Врз основа на 0 коментари. - Напиши коментар
254,552ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 302578
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01582-002. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. HDD capacity: 4 TB, Total installed storage capacity: 8 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 1U, Product colour: Black, Certification: CNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15.... AC input frequency: 50 - 60 Hz, Power: 520 W, Output current: 6.5 A
  • Vendor Homepage: https://www.axis.com/products/axis-s2216
  • Name: NET CAMERA STATION S2216/01582-002 AXIS
  • Category Code: NVR
  • Model name: 01582-002
  • Video input channels: 16
  • Video recording modes: 1080p
  • Maximum resolution: 3840 x 2160
  • Internal memory: 8000
  • Number of HDDs installed: 2
  • HDD capacity: 4000
  • Number of HDDs supported: 4
  • Total installed storage capacity: 8000
  • Ethernet LAN (RJ-45) ports: 18
  • Ethernet LAN data rates: 10/100/1000
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 16
  • HDMI ports quantity: 1
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Fiber ports quantity: 1
  • DisplayPorts quantity: 1
  • Line-in: Yes
  • Networking standards: IEEE 802.3at
  • Rack mounting: Yes
  • Rack capacity: 1U
  • Product colour: Black
  • Certification: CNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, IEC/EN 60950-1, IEC/EN 62368-1, KC-Mark, UL 62368-1
  • Built-in processor: Yes
  • AC input frequency: 50 - 60
  • Output current: 6.5
  • Output voltage: 100-240
  • Power: 520
  • Total Power over Ethernet (PoE) budget: 260
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Storage temperature (T-T): -40 - 65
  • Width: 476
  • Depth: 440
  • Height: 45
  • Weight: 11000
  • Cables included: AC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.09298
  • Unit Calculated Weight: 14.8
Specifications
AC input frequency50 - 60
Built-in processorYes
Cables includedAC
CertificationCNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, IEC/EN 60950-1, IEC/EN 62368-1, KC-Mark, UL 62368-1
Depth440
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports18
Ethernet LAN data rates10/100/1000
Fiber ports quantity1
HDD capacity4000
HDMI ports quantity1
Height45
Internal memory8000
Line-inYes
Maximum resolution3840 x 2160
Networking standardsIEEE 802.3at
Number of HDDs installed2
Number of HDDs supported4
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Output current6.5
Output voltage100-240
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Product colourBlack
Rack capacity1U
Rack mountingYes
Storage temperature (T-T)-40 - 65
SummaryAxis 01582-002. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 1080p. HDD capacity: 4 TB, Total installed storage capacity: 8 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 1U, Product colour: Black, Certification: CNS 13438, EAC, EN 55024, , EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15.... AC input frequency: 50 - 60 Hz, Power: 520 W, Output current: 6.5 A
Total installed storage capacity8000
Total Power over Ethernet (PoE) budget260
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Video input channels16
Video recording modes1080p
Weight11000
Width476
Specs
Category CodeNVR
Description

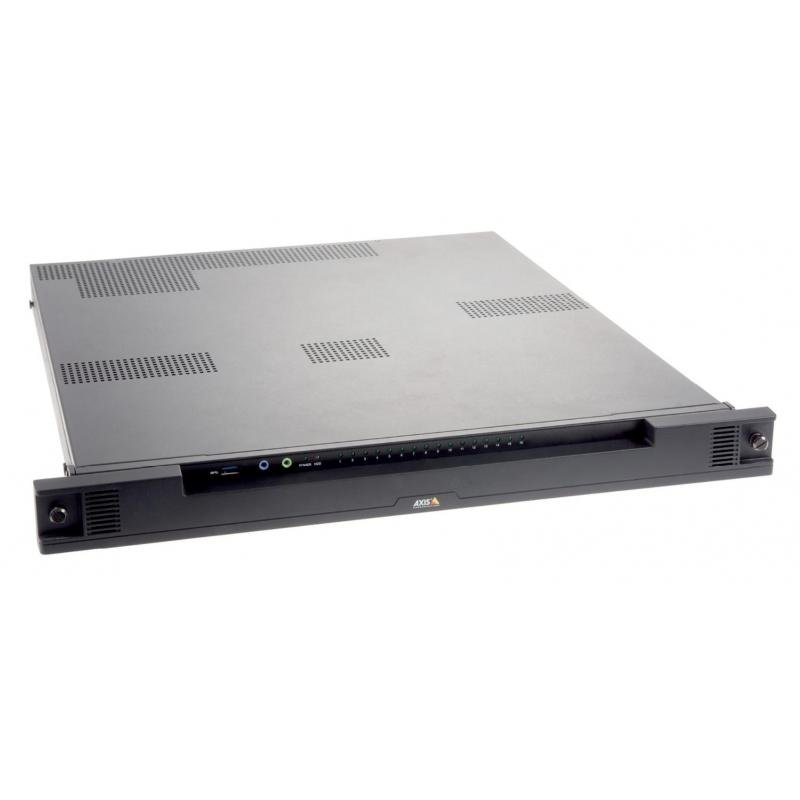

AXIS Camera Station S2216 Appliance is an all-in-one recording solution with integrated, manageable PoE switch designed to deliver reliable high-definition surveillance with up to 4K resolution. For quick and easy installation, AXIS S2216 is preconfigured and preloaded with AXIS Camera Station video management software, and includes licenses for 16 channels plus all necessary system software. AXIS Camera Station offers an intuitive user interface that allows users to take full advantage of Axis wide range of video surveillance cameras and other IP products. With the operating system stored on a solid-state drive (SSD) and 5-year warranty, AXIS S2216 provides a reliable surveillance solution.

  • AXIS Camera Station licenses included; All-in-one solution with integrated PoE switch; Full compatibility with Axis products; High-definition surveillance with up to 4K resolution

Model name01582-002
NameNET CAMERA STATION S2216/01582-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/6482cd86-19d9-4b0f-8f68-e98effcd64c1.Jpeg
Power520
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/6482cd86-19d9-4b0f-8f68-e98effcd64c1.Jpeg
Unit Calculated Volume0.09298
Unit Calculated Weight14.8
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-s2216
