Husky M20

Husky M20
Husky M20
  • Video input channels: 16
  • Wi-Fi: No
  • Number of HDDs supported: 2
  • Ethernet LAN (RJ-45) ports: 18
  • Rack mounting: Yes
Врз основа на 0 коментари. - Напиши коментар
142,871ден.
  • Достапност:
  • Бренд: MILESTONE
  • Шифра: 205843
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Milestone Husky M20. Video input channels: 16 channels, Maximum resolution: 1920 x 1200 pixels, Video recording modes: 720p, 1080p. HDD capacity: 2 TB, HDD interface: Serial ATA, Total installed storage capacity: 4.12 TB. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 2U, Product colour: Black, Certification: CE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC). Processor frequency: 3.7 GHz
  • Vendor Homepage: https://www.milestonesys.com/solutions/hardware-and-add-ons/network-video-recorders/husky-m20/
  • Name: NET VIDEO RECORDER 24CH/HM20-4T-16 MILESTONE
  • Category Code: NVR
  • Model name: Husky M20
  • Video input channels: 16
  • Alarm input channels: 1
  • Alarm output channels: 1
  • Video recording modes: 1080p/720p
  • Maximum resolution: 1920 x 1200
  • Internal memory: 8000
  • Video formats supported: H.264/M-JPEG/MPEG4/MxPEG
  • Operating system installed: Windows 10 IoT Enterprise
  • Maximum frame rate: 60
  • PTZ control: Yes
  • Throughput data rate: 200
  • Audio system: 2-way
  • Number of HDDs installed: 2
  • HDD capacity: 2000
  • Number of HDDs supported: 2
  • Total installed storage capacity: 4128
  • HDD interface: Serial ATA
  • Ethernet LAN (RJ-45) ports: 18
  • Copper ethernet cabling technology: 1000BASE-T/1000BASE-TX/100BASE-T/100BASE-TX/10BASE-T
  • Ethernet LAN data rates: 1000
  • Power over Ethernet (PoE): Yes
  • HDMI output: Yes
  • HDMI ports quantity: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • eSATA ports quantity: 1
  • Audio output: 1
  • eSATA: Yes
  • Line-in: Yes
  • Microphone in: Yes
  • Networking standards: IEEE 802.3at
  • Rack mounting: Yes
  • Rack capacity: 2U
  • LED indicators: Yes
  • On/off switch: Yes
  • Product colour: Black
  • Certification: CE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC)
  • Built-in processor: Yes
  • Processor cores: 2
  • Processor frequency: 3.7
  • AC input voltage: 100 - 240
  • Power: 500
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): -20 - 70
  • Storage temperature (T-T): 10 - 90
  • Storage relative humidity (H-H): 10 - 90
  • Width: 430
  • Depth: 330
  • Height: 88
  • Package width: 607
  • Package depth: 236
  • Package height: 472
  • Package weight: 13500
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0252
  • Unit Calculated Weight: 9.9
Specifications
AC input voltage100 - 240
Alarm input channels1
Alarm output channels1
Audio output1
Audio system2-way
Built-in processorYes
CertificationCE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC)
Copper ethernet cabling technology1000BASE-T/1000BASE-TX/100BASE-T/100BASE-TX/10BASE-T
Depth330
eSATAYes
eSATA ports quantity1
Ethernet LAN (RJ-45) ports18
Ethernet LAN data rates1000
HDD capacity2000
HDD interfaceSerial ATA
HDMI outputYes
HDMI ports quantity1
Height88
Internal memory8000
LED indicatorsYes
Line-inYes
Maximum frame rate60
Maximum resolution1920 x 1200
Microphone inYes
Networking standardsIEEE 802.3at
Number of HDDs installed2
Number of HDDs supported2
On/off switchYes
Operating relative humidity (H-H)-20 - 70
Operating system installedWindows 10 IoT Enterprise
Operating temperature (T-T)0 - 40
Package depth236
Package height472
Package weight13500
Package width607
Power over Ethernet (PoE)Yes
Processor cores2
Processor frequency3.7
Product colourBlack
PTZ controlYes
Rack capacity2U
Rack mountingYes
Storage relative humidity (H-H)10 - 90
Storage temperature (T-T)10 - 90
SummaryMilestone Husky M20. Video input channels: 16 channels, Maximum resolution: 1920 x 1200 pixels, Video recording modes: 720p, 1080p. HDD capacity: 2 TB, HDD interface: Serial ATA, Total installed storage capacity: 4.12 TB. Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.3at. Rack capacity: 2U, Product colour: Black, Certification: CE (class A), WEEE, FCC (class A)*,RCM, UL, VCCI (classA)**, Mexico (CoC). Processor frequency: 3.7 GHz
Throughput data rate200
Total installed storage capacity4128
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Video formats supportedH.264/M-JPEG/MPEG4/MxPEG
Video input channels16
Video recording modes1080p/720p
Width430
Specs
Category CodeNVR
Description

Why choose the Milestone Husky M20?
When you want a plug-and-play surveillance system

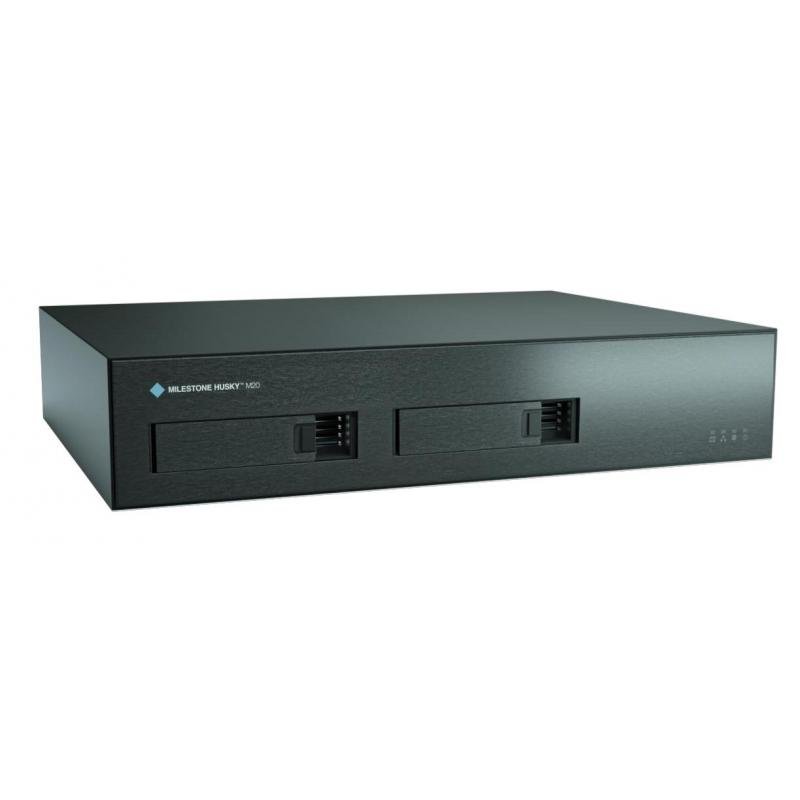

The Milestone Husky M20 is a standalone and rack mountable network video recorder (NVR) with support for up to 32 cameras. It features a custom design by Milestone, the industry leader in video management solutions, and comes pre-loaded with an NVR-optimized version of XProtect® Professional. The Husky M20 is an easy-to-use surveillance solution that lets you tailor the user experience to your employees’ responsibilities and technical abilities. Its replaceable hard drives make it easy for you to replace storage with minimal disruption to your business, and the three-year warranty ensures that you get the most out of your investment.

Model nameHusky M20
NameNET VIDEO RECORDER 24CH/HM20-4T-16 MILESTONE
PictureUrlhttps://static.elko.cloud/ProductImages/e69e1b01-1aab-46dc-a303-89c16147f5bb.Jpeg
Power500
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e69e1b01-1aab-46dc-a303-89c16147f5bb.Jpeg
Unit Calculated Volume0.0252
Unit Calculated Weight9.9
Units per Shipping Box1
Vendor Homepagehttps://www.milestonesys.com/solutions/hardware-and-add-ons/network-video-recorders/husky-m20/
