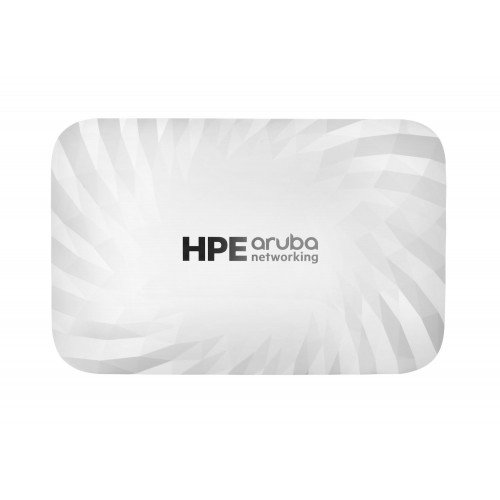

Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP

Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP
Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP
Врз основа на 0 коментари. - Напиши коментар
125,404ден.
  • Достапност:
  • Бренд: ARUBA BY HPE
  • Шифра: 459816
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: HPE Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: WMM, WPA2, WPA3-Enterprise, WPA3-Personal, OWE. Ethernet LAN data rates: 5000,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
  • Vendor Homepage: https://www.hpe.com/
  • Name: WRL ACCESS POINT AP-763 (RW)/INDOOR S4K10AR ARUBA BY HPE
  • Category Code: WAP
  • Model name: Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP
  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: Yes
  • Maximum data transfer rate: 5800
  • Maximum data transfer rate (6 GHz): 5800
  • Ethernet LAN data rates: 100/1000/2500/5000
  • Frequency band: 20/40/80/160 MHz channel bandwidths supported Aggregate peak data rate 5.8 Gbps using 6 GHz (4x4) with 160 MHz
  • Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11mc/IEEE 802.11n/IEEE 802.15.4
  • Bluetooth: Yes
  • Bluetooth version: 5.4
  • MIMO: Yes
  • GPS (satellite): Yes
  • MACsec support: Yes
  • Security algorithms: OWE/WMM/WPA2/WPA3-Enterprise/WPA3-Personal
  • Cloud-managed: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • USB 2.0 ports quantity: 1
  • Power over Ethernet (PoE): Yes
  • Placement: Ceiling,Wall
  • Product colour: White
  • Reset button: Yes
  • Recommended usage: Indoor
  • Antenna type: Internal
  • Antenna direction type: Omni-directional
  • Antenna gain level (max): 7.4
  • Compatible operating systems: HPE Aruba Networking Wireless Operating System 10
  • Compliance certificates: Federal Communications Commission (FCC)/ISED
  • Certification: Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6)
  • I/O ports: 1 x 5GbE USB 2.0 Reset button Serial console
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 2.18
Specifications
2.4 GHzYes
6 GHzYes
Antenna direction typeOmni-directional
Antenna gain level (max)7.4
BluetoothYes
CertificationWi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6)
Cloud-managedYes
Compatible operating systemsHPE Aruba Networking Wireless Operating System 10
Compliance certificatesFederal Communications Commission (FCC)/ISED
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates100/1000/2500/5000
Frequency band20/40/80/160 MHz channel bandwidths supported Aggregate peak data rate 5.8 Gbps using 6 GHz (4x4) with 160 MHz
GPS (satellite)Yes
I/O ports1 x 5GbE USB 2.0 Reset button Serial console
MACsec supportYes
Maximum data transfer rate5800
Maximum data transfer rate (6 GHz)5800
MIMOYes
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11mc/IEEE 802.11n/IEEE 802.15.4
PlacementCeiling,Wall
Power over Ethernet (PoE)Yes
Product colourWhite
Recommended usageIndoor
Reset buttonYes
Security algorithmsOWE/WMM/WPA2/WPA3-Enterprise/WPA3-Personal
SummaryHPE Aruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: WMM, WPA2, WPA3-Enterprise, WPA3-Personal, OWE. Ethernet LAN data rates: 5000,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
USB 2.0 ports quantity1
Specs
5 GHzYes
Antenna TypeInternal
Bluetooth version5.4
Category CodeWAP
Description

The HPE Aruba Networking 760 Series Hardened Access Points bring high performance Wi‑Fi 7 to challenging locations such as industrial sites, warehouses, and large public venues. These compact Wi-Fi 7 access points boost security, support Internet of Things (IoT) devices, and help provide accurate location services. HPE Aruba Networking Central helps drive efficient operations and provides AI-automation and machine learning (ML) insights for fine-tuned wireless connectivity. With integrated IoT radios, fast 5GbE wired connectivity, and a limited lifetime warranty, the 760 series is purpose‑built to deliver high-performance Wi‑Fi 7 across a range of environmental conditions: indoor industrial, outdoors, and hazardous environments, delivering up to 5.8 Gbps maximum aggregate data rates using 6 GHz (4x4). For extreme environments, the 760EX models are hazardous location compliant, ideal for environments such as oil rigs, industrial manufacturing, and transportation sites.

What is new supporting point:
High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
Industrial IoT‑ready platform with high‑power integrated Bluetooth and 802.15.4/Zigbee radios
Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
Dynamic power save mode helps reduce energy consumption

Model nameAruba Networking AP-763 (RW) Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP
NameWRL ACCESS POINT AP-763 (RW)/INDOOR S4K10AR ARUBA BY HPE
PictureUrlhttps://static.elko.cloud/ProductImages/c6eccf02-3fad-46e2-919d-a73c98911ac3.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c6eccf02-3fad-46e2-919d-a73c98911ac3.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight2.18
Units per Shipping Box1
Vendor Homepagehttps://www.hpe.com/
