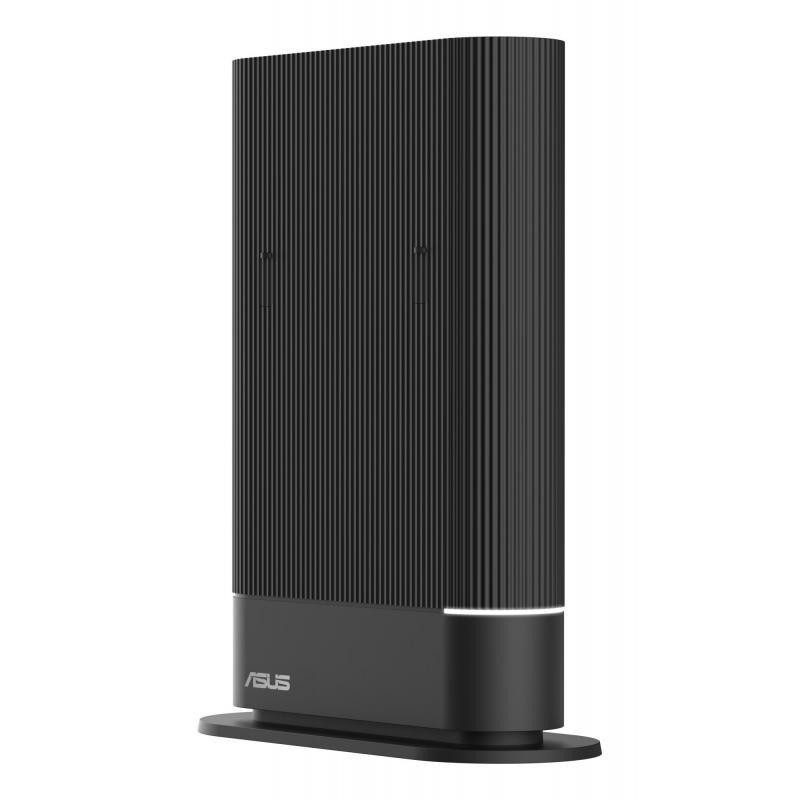

ProArt Router PRT-BE5000 Tabletop router

Technical Specifications

• Summary: ASUS ProArt Router PRT-BE5000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 4320 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11n, IEEE 802.11g, IEEE 802.11be. Security algorithms: WPA, WPA2, WPA3-Personal, WPA2-Enterprise, WPS, SSH, Firewall security: Maximum Firewall Keyword Filter : 64; Maximum Firewall Network Service Filter : 32; Maximum..., NAT functionality: PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through,.... Product type: Tabletop router, Product colour: Black, LED indicators: Power, WAN, LAN, WLAN
• Vendor Homepage: https://www.asus.com/networking-iot-servers/wifi-routers/all-series/proart-router-prt-be5000/
• Name: WRL ROUTER 5000MBPS/DUAL BAND PRT-BE5000 ASUS
• Category Code: WRO
• Model name: ProArt Router PRT-BE5000
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• WLAN data transfer rate (max): 4320
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
• WLAN data transfer rate (first band): 688
• WLAN data transfer rate (second band): 4320
• Modulation: 4096-QAM/OFDMA
• Ethernet WAN: Yes
• WAN connection type: RJ-45
• Ethernet LAN: Yes
• Ethernet LAN interface type: 2.5 Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000/2500
• Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n
• Dynamic DNS (DDNS): Yes
• VPN support: Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard
• Ethernet LAN (RJ-45) ports: 4
• DC-in jack: Yes
• Web-based management: Yes
• Bandwidth control: Yes
• Reset button: Yes
• Intelligent Mesh technology: Yes
• WPS push button: Yes
• MU-MIMO technology: Yes
• Traffic statistics: Yes
• Backup function: Yes
• Security algorithms: SSH/WPA/WPA2/WPA2-Enterprise/WPA3-Personal/WPS
• Firewall: Yes
• Firewall security: Maximum Firewall Keyword Filter : 64; Maximum Firewall Network Service Filter : 32; Maximum Firewall URL Filter : 64
• Schedule access: Yes
• Parental control: Yes
• Filtering: Yes
• MAC address filtering: Yes
• URL filtering: Yes
• IGMP snooping: Yes
• DMZ support: Yes
• Network address translation (NAT): Yes
• NAT functionality: PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
• DHCP server: Yes
• Product colour: Black
• LED indicators: Power,WAN,LAN,WLAN
• On/off switch: Yes
• Product type: Tabletop router
• Cables included: LAN (RJ-45)
• AC adapter included: Yes
• Warranty card: Yes
• Quick start guide: Yes
• Packaging content: PRT-BE5000 RJ-45 cable Power adapter Quick Start Guide Warranty card
• Antenna design: Internal
• Antennas quantity: 5
• Processor frequency: 2000
• Internal memory: 1000
• Flash memory: 12
• Power source type: DC
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Output voltage: 12
• Output current: 2
• Depth: 37.5
• Height: 200
• Weight: 476
• Width: 131
• Package width: 231
• Package depth: 176
• Package height: 106
• Package weight: 1160
• Package type: Box
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.004554
• Unit Calculated Weight: 1
