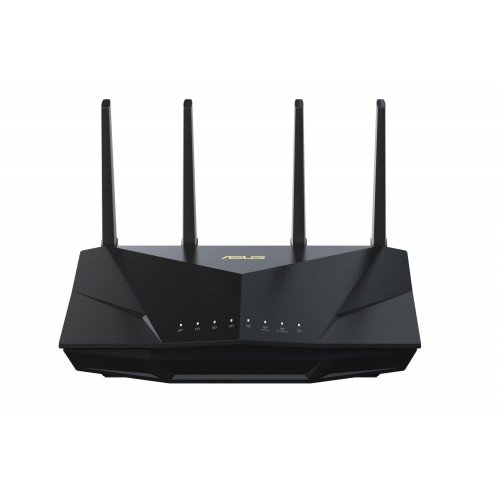

RT-AX5400 Tabletop router

Technical Specifications

• Summary: ASUS RT-AX5400. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: SSID, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS, Firewall security: Maximum Firewall keyword filter : 64, Maximum Firewall network service filter : 32, Maximum.... Supported network protocols: IPv6
• Vendor Homepage: https://www.asus.com/networking-iot-servers/wifi-routers/asus-wifi-routers/rt-ax5400/
• Name: WRL ROUTER 5400MBPS 1000M 4P/DUAL BAND RT-AX5400 ASUS
• Category Code: WRO
• Model name: RT-AX5400
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• WLAN data transfer rate (max): 4804
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• WLAN data transfer rate (first band): 574
• WLAN data transfer rate (second band): 4804
• Ethernet WAN: Yes
• 3G/4G USB modem compatibility: Yes
• WAN connection type: RJ-45
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000
• Cabling technology: 10/100/1000Base-T(X)
• Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
• Port forwarding: Yes
• Port triggering: Yes
• Dynamic DNS (DDNS): Yes
• VPN support: Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion
• Ethernet LAN (RJ-45) ports: 4
• USB port: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• DC-in jack: Yes
• Bandwidth control: Yes
• Quality of Service (QoS) support: Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• Intelligent Mesh technology: Yes
• WPS push button: Yes
• MU-MIMO technology: Yes
• Security algorithms: SSID/WPA/WPA2/WPA2-Enterprise/WPA3/WPA-Enterprise/WPS
• Firewall: Yes
• Firewall security: Maximum Firewall keyword filter : 64, Maximum Firewall network service filter : 32, Maximum Firewall URL filter : 64
• Guest access: Yes
• Schedule access: Yes
• Parental control: Yes
• Filtering: Yes
• MAC address filtering: Yes
• System event log: Yes
• DMZ support: Yes
• DHCP server: Yes
• Supported network protocols: IPv6
• Product colour: Black
• Indication light: Yes
• LED indicators: LAN,Power,WAN
• On/off switch: Yes
• Product type: Tabletop router
• Cables included: LAN (RJ-45)
• AC adapter included: Yes
• Antenna included: Yes
• Warranty card: Yes
• Quick start guide: Yes
• Antenna design: External
• Antennas quantity: 4
• Built-in processor: Yes
• Processor frequency: 1.5
• Processor cores: 3
• Internal memory: 512
• Flash memory: 256
• Works with Amazon Alexa: Yes
• Operating system installed: ASUSWRT
• Firmware upgradeable: Yes
• Power source type: DC
• AC input voltage: 110 - 240
• AC input frequency: 50 - 60
• Output voltage: 19
• Output current: 1.75
• External power adapter: Yes
• Depth: 161
• Height: 160
• Weight: 612.4
• Width: 226
• Package width: 335
• Package depth: 257
• Package height: 81
• Package weight: 950
• Package type: Box
• Number of products included: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008064
• Unit Calculated Weight: 1
