WRL ROUTER LTE 4G/RUTM11 TELTONIKA

Technical Specifications

• Description:

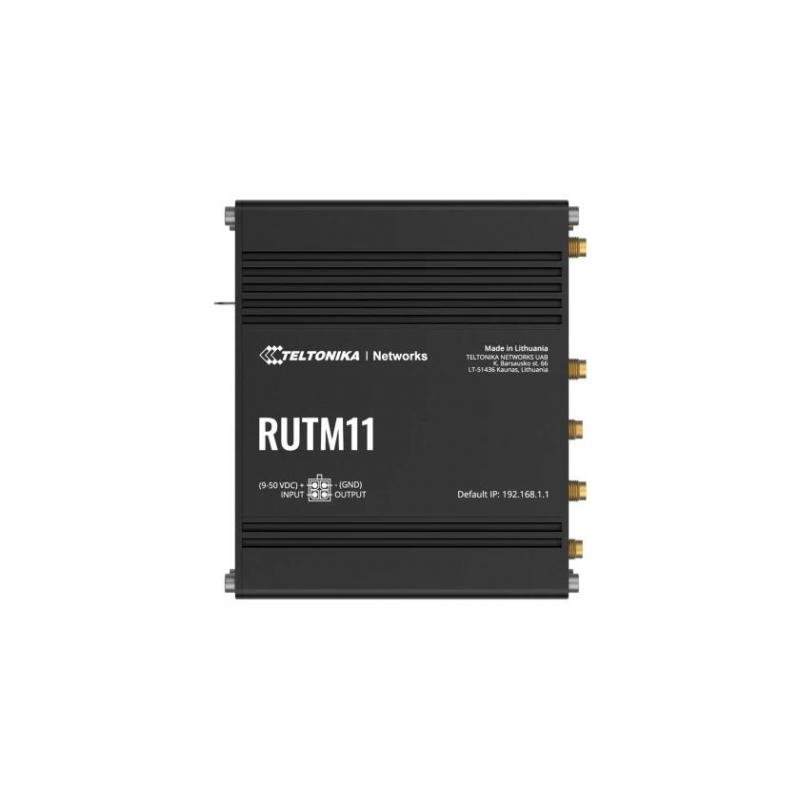

  RUTM11
  INDUSTRIAL 4G LTE ROUTER
  The RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.

  - CONNECTIVITY
  Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  - INTERFACES
  4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  - GNSS
  Location services and time synchronisation for precise data reading
  - WI-FI 5
  Dual-band Wi-Fi with mesh and fast-roaming functionalities

  • Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  • 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  • Dual-band Wi-Fi with mesh and fast-roaming functionalities

• Summary: Teltonika RUTM11. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Firewall security: Port forward, traffic rules, custom rules, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts.... Processor manufacturer: MediaTek, Processor model: MIPS 1004Kc, Processor frequency: 880 MHz
• Vendor Homepage: https://teltonika-networks.com/products/routers/rutm11
• Name: WRL ROUTER LTE 4G/RUTM11 TELTONIKA
• Category Code: ROU
• Model: RUTM11
• Ethernet WAN: Yes
• DSL WAN: No
• SIM card slot: Yes
• 3G/4G USB modem compatibility: No
• SFP WAN: No
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Ethernet interface type: Gigabit Ethernet
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet LAN data rates: 10/100/1000
• Static route: Yes
• VLAN support: Yes
• Traffic control: Yes
• Port forwarding: Yes
• Auto MDI/MDI-X: Yes
• Mobile network generation: 4G
• 4G standard: LTE
• Short Message Service (SMS): Yes
• Web-based management: Yes
• Quality of Service (QoS) support: Yes
• Universal Plug and Play (UPnP): Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• Firmware upgradeable: Yes
• Ethernet LAN (RJ-45) ports: 4
• Gigabit Ethernet (copper) ports quantity: 4
• WAN ports quantity: 1
• USB ports quantity: 1
• USB version: 2.0
• DMZ support: Yes
• Routing protocols: BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
• VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• DHCP client: Yes
• DHCP server: Yes
• Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Firewall: Yes
• Firewall security: Port forward, traffic rules, custom rules
• Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
• MAC address filtering: Yes
• IP address filtering: Yes
• ARP attack prevention: Yes
• ICMP attack prevention: Yes
• Network address translation (NAT): Yes
• Built-in processor: Yes
• Processor manufacturer: MediaTek
• Processor model: MIPS 1004Kc
• Processor frequency: 880
• Storage media: Flash
• Flash memory: 256
• Internal memory: 256
• Internal memory type: DDR3
• Operating system installed: RutOS
• Product colour: Black
• LED indicators: Yes
• Power consumption (typical): 3.9
• Power consumption (max): 12.3
• Power source type: DC
• Power plug type: Type E
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 115
• Depth: 95.1
• Height: 44.2
• Weight: 460
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003888
• Unit Calculated Weight: 0.9
