WRL ROUTER LTE CAT 6/RUTM09 TELTONIKA

Technical Specifications

• Description:

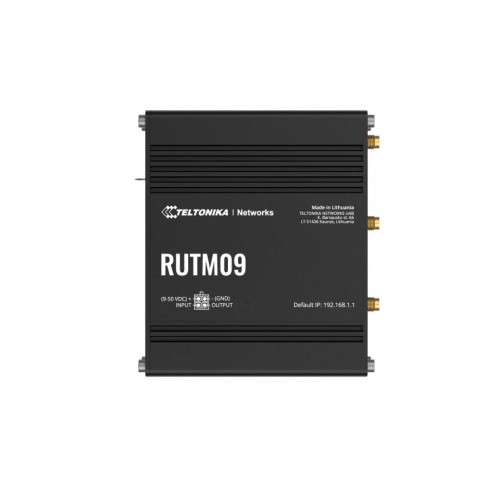

  RUTM09
  4G LTE ROUTER
  The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.

  - CONNECTIVITY
  Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  - PERFORMANCE-DRIVEN
  Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
  - INTERFACES
  4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  - GNSS
  Location services and time synchronisation for precise data reading

  • Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  • Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
  • 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  • Location services and time synchronisation for precise data reading

• Summary: Teltonika RUTM09. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE,.... Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, Firewall security: Port forward, traffic rules, custom rules, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts.... Processor manufacturer: MediaTek, Processor model: MIPS 1004Kc, Processor frequency: 880 MHz
• Vendor Homepage: https://teltonika-networks.com/products/routers/rutm09
• Name: WRL ROUTER LTE CAT 6/RUTM09 TELTONIKA
• Category Code: ROU
• Model: RUTM09
• Ethernet WAN: Yes
• DSL WAN: No
• SIM card slot: Yes
• 3G/4G USB modem compatibility: No
• SFP WAN: No
• Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
• Ethernet interface type: Gigabit Ethernet
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet LAN data rates: 10/100/1000
• Static route: Yes
• VLAN support: Yes
• Traffic control: Yes
• Port forwarding: Yes
• Auto MDI/MDI-X: Yes
• Mobile network generation: 4G
• 4G standard: LTE
• Short Message Service (SMS): Yes
• Web-based management: Yes
• Quality of Service (QoS) support: Yes
• Universal Plug and Play (UPnP): Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• Firmware upgradeable: Yes
• Ethernet LAN (RJ-45) ports: 4
• Gigabit Ethernet (copper) ports quantity: 4
• WAN/Ethernet LAN ports quantity: 3
• WAN ports quantity: 1
• USB ports quantity: 1
• USB version: 2.0
• DMZ support: Yes
• Routing protocols: BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
• VoIP protocols: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• DHCP client: Yes
• DHCP server: Yes
• Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Security algorithms: 128-bit AES/192-bit AES/256-bit AES/AES/DES
• Firewall: Yes
• Firewall security: Port forward, traffic rules, custom rules
• Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
• MAC address filtering: Yes
• IP address filtering: Yes
• ARP attack prevention: Yes
• ICMP attack prevention: Yes
• Network address translation (NAT): Yes
• Built-in processor: Yes
• Processor manufacturer: MediaTek
• Processor model: MIPS 1004Kc
• Processor frequency: 880
• Storage media: Flash
• Flash memory: 256
• Internal memory: 256
• Internal memory type: DDR3
• Operating system installed: RutOS
• Product colour: Black
• LED indicators: Yes
• Power consumption (typical): 3.9
• Power consumption (max): 12.3
• Power source type: DC
• Power plug type: Type E
• Operating temperature (T-T): -40 - 75
• Operating relative humidity (H-H): 10 - 90
• Width: 115
• Depth: 95.1
• Height: 44.2
• Weight: 457
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003888
• Unit Calculated Weight: 2
