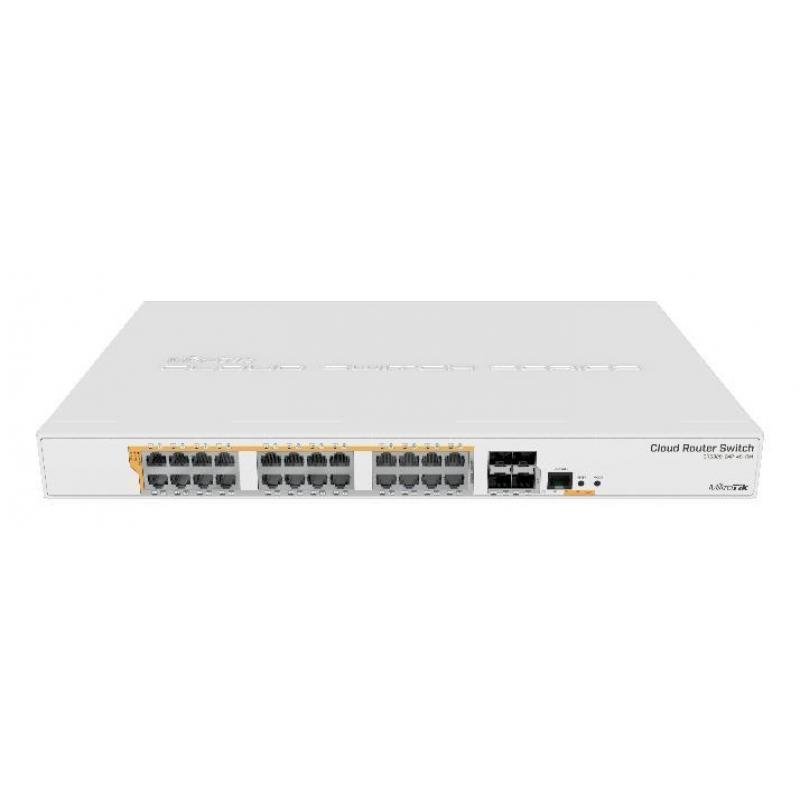

NET ROUTER/SWITCH 24 POE+/SFP+/CRS328-24P-4S+RM MIKROTIK

NET ROUTER/SWITCH 24 POE+/SFP+/CRS328-24P-4S+RM MIKROTIK
NET ROUTER/SWITCH 24 POE+/SFP+/CRS328-24P-4S+RM MIKROTIK
  • Switch type: Managed
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 128
Врз основа на 0 коментари. - Напиши коментар
34,316ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 236894
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CRS328-24P-4S+RM. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Vendor Homepage: https://mikrotik.com/product/crs328_24p_4s_rm
  • Name: NET ROUTER/SWITCH 24 POE+/SFP+/CRS328-24P-4S+RM MIKROTIK
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.1Q/IEEE 802.3ad
  • Port mirroring: Yes
  • Auto-sensing: Yes
  • Broadcast storm control: Yes
  • Link aggregation: Yes
  • VLAN support: Yes
  • Number of VLANs: 4000
  • Switching capacity: 128
  • Throughput: 64000
  • Forwarding rate: 95.2
  • MAC address table: 16000
  • Jumbo frames support: Yes
  • Jumbo frames: 10218
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Management protocols: SNMP
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: White
  • LED indicators: Yes
  • Number of fans: 2
  • Built-in processor: Yes
  • Processor manufacturer: ARM
  • Processor frequency: 800
  • Internal memory: 512
  • Flash memory: 16
  • Mean time between failures (MTBF): 200000
  • Power source: AC
  • Power supply included: Yes
  • Number of power supply units: 2
  • AC input voltage: 100 - 240
  • Power consumption (max): 44
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Passive PoE/PoE+
  • Power over Ethernet (PoE) ports quantity: 24
  • Power over Ethernet (PoE) voltage: 26
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 450
  • Operating temperature (T-T): -20 - 60
  • Width: 443
  • Depth: 300
  • Height: 44
  • Cables included: AC
  • Rack mount kit: Yes
  • Harmonized System (HS) code: 85176990
  • Units per Pallet: 88
  • Units per Shipping Box: 2
  • Unit Calculated Volume: 0.03088
  • Unit Calculated Weight: 5.28
Specifications
AC input voltage100 - 240
Access Control List (ACL)Yes
Auto-sensingYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Built-in processorYes
Cables includedAC
Console portRJ-45
Depth300
Flash memory16
Form factor1U
Harmonized System (HS) code85176990
Height44
IGMP snoopingYes
Internal memory512
Jumbo frames10218
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
MAC address table16000
Management protocolsSNMP
Mean time between failures (MTBF)200000
Networking standardsIEEE 802.1Q/IEEE 802.3ad
Number of fans2
Number of power supply units2
Number of VLANs4000
Operating temperature (T-T)-20 - 60
Port mirroringYes
Power consumption (max)44
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) power per port30
Power over Ethernet (PoE) type supportedPassive PoE/PoE+
Power over Ethernet (PoE) voltage26
Power supply includedYes
Processor frequency800
Processor manufacturerARM
Product colourWhite
Quality of Service (QoS) supportYes
Rack mount kitYes
Rack mountingYes
SFP+ module slots quantity4
SummaryMikrotik CRS328-24P-4S+RM. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Switch layerL2/L3
System event logYes
Throughput64000
Total Power over Ethernet (PoE) budget450
VLAN supportYes
Width443
Specs
Category CodeSWI
Description

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

  • CPU temperature monitor
  • Current Monitor
  • PCB temperature monitor
  • Voltage Monitor
  • Mode button

Forwarding rate95.2
NameNET ROUTER/SWITCH 24 POE+/SFP+/CRS328-24P-4S+RM MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/70ad2937-2e1a-4c63-a809-8a16ec2f0759.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity128
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/70ad2937-2e1a-4c63-a809-8a16ec2f0759.Jpeg
Unit Calculated Volume0.03088
Unit Calculated Weight5.28
Units per Pallet88
Units per Shipping Box2
Vendor Homepagehttps://mikrotik.com/product/crs328_24p_4s_rm
