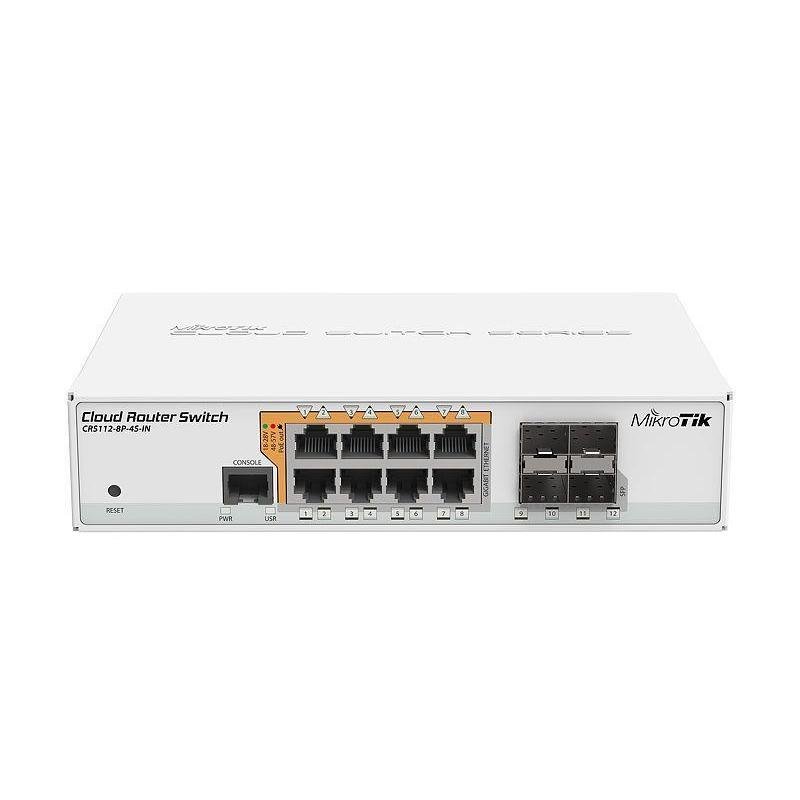

MIKROTIK 4SFP CRS112-8P-4S-IN

MIKROTIK 4SFP CRS112-8P-4S-IN
MIKROTIK 4SFP CRS112-8P-4S-IN
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • SFP module slots quantity: 4
Врз основа на 0 коментари. - Напиши коментар
13,930ден.
  • Достапност:
  • Бренд: MIKROTIK
  • Шифра: 235119
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Mikrotik CRS112-8P-4S-IN. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
  • Vendor Homepage: https://mikrotik.com/product/crs112_8p_4s_in#fndtn-downloads
  • Name: NET ROUTER/SWITCH 8PORT 1000M/4SFP CRS112-8P-4S-IN MIKROTIK
  • Category Code: SWI
  • Model: MIKROTIK 4SFP CRS112-8P-4S-IN
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Product colour: White
  • Built-in processor: Yes
  • Processor frequency: 400
  • Internal memory: 128
  • Flash memory: 16
  • Compatible operating systems: RouterOS L5
  • DC input voltage: 18 - 57
  • Power consumption (max): 10
  • Power over Ethernet (PoE): Yes
  • Operating temperature (T-T): -20 - 60
  • AC adapter included: Yes
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 10
  • Unit Calculated Volume: 0.005392
  • Unit Calculated Weight: 1.62
Specifications
AC adapter includedYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Compatible operating systemsRouterOS L5
DC input voltage18 - 57
Flash memory16
Harmonized System (HS) code85176990
Internal memory128
Networking standardsIEEE 802.3af/IEEE 802.3at
Operating temperature (T-T)-20 - 60
Power connectorDC-in jack
Power consumption (max)10
Power over Ethernet (PoE)Yes
Processor frequency400
Product colourWhite
SFP module slots quantity4
SummaryMikrotik CRS112-8P-4S-IN. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Specs
Category CodeSWI
Description

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

ModelMIKROTIK 4SFP CRS112-8P-4S-IN
NameNET ROUTER/SWITCH 8PORT 1000M/4SFP CRS112-8P-4S-IN MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/cc9c4823-9bd5-4ac0-8c3a-284a33adb04e.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/cc9c4823-9bd5-4ac0-8c3a-284a33adb04e.Jpeg
Unit Calculated Volume0.005392
Unit Calculated Weight1.62
Units per Shipping Box10
Vendor Homepagehttps://mikrotik.com/product/crs112_8p_4s_in#fndtn-downloads
