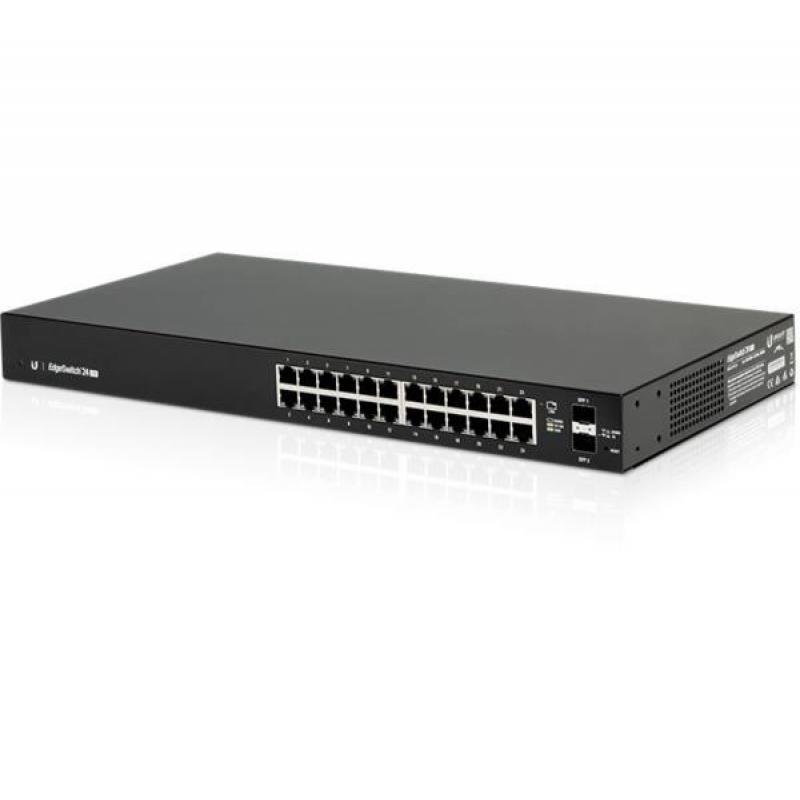

NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI

NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI
NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • SFP module slots quantity: 2
  • Switching capacity: 52
Врз основа на 0 коментари. - Напиши коментар
15,232ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 197488
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti EdgeSwitch 24 Lite. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.15.1, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... DC input voltage: 16 - 25 V. Wall mountable, Rack mounting, Form factor: 1U
  • Vendor Homepage: https://eu.store.ui.com/collections/routing-switching/products/edgeswitch-24-lite?_pos=1&_sid=1409cbd95&_ss=r
  • Name: NET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 24
  • SFP module slots quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.15.1/IEEE 802.1ab/IEEE 802.1ak/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Broadcast storm control: Yes
  • Ethernet LAN data rates: 10,100,1000
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Private VLAN/Tagged VLAN/Voice VLAN
  • Switching capacity: 52
  • Forwarding rate: 38.69
  • Jumbo frames support: Yes
  • DHCP features: DHCP server/DHCP snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Authentication: Guest VLAN,Port-based authentication
  • Authentication type: IEEE 802.1x,RADIUS
  • MAC address filtering: Yes
  • Security algorithms: 802.1x RADIUS/SSH-1.5/SSH-2/SSL/TLS
  • Multicast support: Yes
  • Management protocols: SNMP v1/v2/v3, Telnet
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Activity/Link/Speed
  • Wall mountable: Yes
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • DC input voltage: 16 - 25
  • Power consumption (max): 25
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 5 - 95
  • Width: 443
  • Depth: 221
  • Height: 43
  • Weight: 2510
  • Certification: ETSI300-019-1.4 CE, FCC, IC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.009922
  • Unit Calculated Weight: 3.27
Specifications
10G supportYes
AC input frequency50 - 60
AC input voltage100 - 240
Access Control List (ACL)Yes
AuthenticationGuest VLAN,Port-based authentication
Authentication typeIEEE 802.1x,RADIUS
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationETSI300-019-1.4 CE, FCC, IC
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
DC input voltage16 - 25
Depth221
DHCP featuresDHCP server/DHCP snooping
Ethernet LAN data rates10,100,1000
Flow control supportYes
Form factor1U
Full duplexYes
Gigabit Ethernet (copper) ports quantity24
Half duplexYes
Harmonized System (HS) code85176990
Height43
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsActivity/Link/Speed
Link aggregationYes
MAC address filteringYes
Management protocolsSNMP v1/v2/v3, Telnet
Multicast supportYes
Networking standardsIEEE 802.15.1/IEEE 802.1ab/IEEE 802.1ak/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power consumption (max)25
Power supply includedYes
Product colourBlack
Quality of Service (QoS) supportYes
Rack mountingYes
Security algorithms802.1x RADIUS/SSH-1.5/SSH-2/SSL/TLS
SFP module slots quantity2
Spanning tree protocolYes
SummaryUbiquiti EdgeSwitch 24 Lite. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.15.1, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... DC input voltage: 16 - 25 V. Wall mountable, Rack mounting, Form factor: 1U
Switch layerL2/L3
Virtual LAN featuresPrivate VLAN/Tagged VLAN/Voice VLAN
VLAN supportYes
Wall mountableYes
Web-based managementYes
Weight2510
Width443
Specs
Category CodeSWI
Description

Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

  • (24) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Maximum Power Consumption: 25W
  • Rack- or Wall-Mountable
  • DC Input Option (Redundant or Stand-Alone)

Forwarding rate38.69
NameNET SWITCH 24PORT 1000M 2SFP/ES-24-LITE UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/85d45aaa-3817-408b-a8f7-67f02b92e4f6.Jpeg
Switch typeManaged
Switching capacity52
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/85d45aaa-3817-408b-a8f7-67f02b92e4f6.Jpeg
Unit Calculated Volume0.009922
Unit Calculated Weight3.27
Units per Shipping Box1
Vendor Homepagehttps://eu.store.ui.com/collections/routing-switching/products/edgeswitch-24-lite?_pos=1&_sid=1409cbd95&_ss=r
