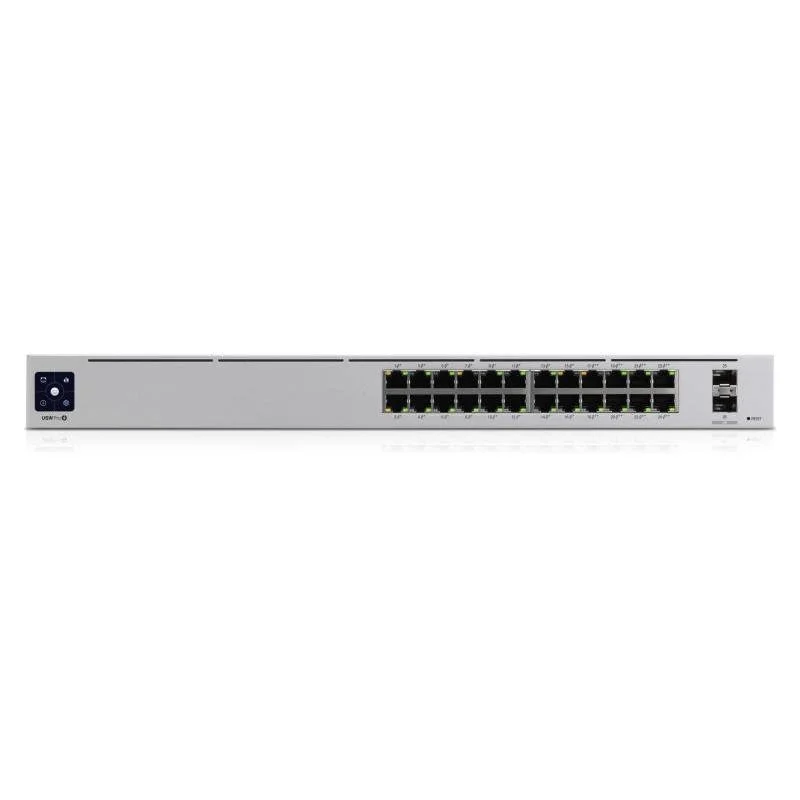

NET SWITCH 24PORT 1000M 2SFP/POE USW-PRO-24-POE UBIQUITI

Technical Specifications

• Summary: Ubiquiti UniFi Pro 24-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://switch.ui.com/gen2/
• Name: NET SWITCH 24PORT 1000M 2SFP/POE USW-PRO-24-POE UBIQUITI
• Category Code: SWI
• Model name: USW-Pro-24-PoE
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 2
• Power connector: AC-in jack
• Networking standards: IEEE 802.3af/IEEE 802.3at
• 10G support: Yes
• Port mirroring: Yes
• Full duplex: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• IPv4 routes: 64
• Link aggregation: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Number of VLANs: 1000
• Switching capacity: 88
• Throughput: 44000
• Forwarding rate: 65.472
• MAC address table: 16000
• Static route: Yes
• Jumbo frames support: Yes
• Packet buffer memory: 2
• DHCP features: DHCP relay/DHCP server/DHCP snooping
• IGMP snooping: Yes
• Authentication type: IEEE 802.1x,RADIUS
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Silver
• Reset button: Yes
• LED indicators: Activity/Link/PoE/Speed/System
• Display type: LCM
• Power source: AC
• Power supply included: Yes
• Redundant power supply (RPS) support: Yes
• Number of power supply units: 1
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 450
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 16
• Power over Ethernet 4PPoE (PoE++) ports quantity: 8
• Power over Ethernet (PoE) power per port: 64
• Total Power over Ethernet (PoE) budget: 400
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 285.4
• Height: 43.7
• Weight: 4300
• Certification: CE, FCC, IC
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 2
• Unit Calculated Volume: 0.03005
• Unit Calculated Weight: 6.5
