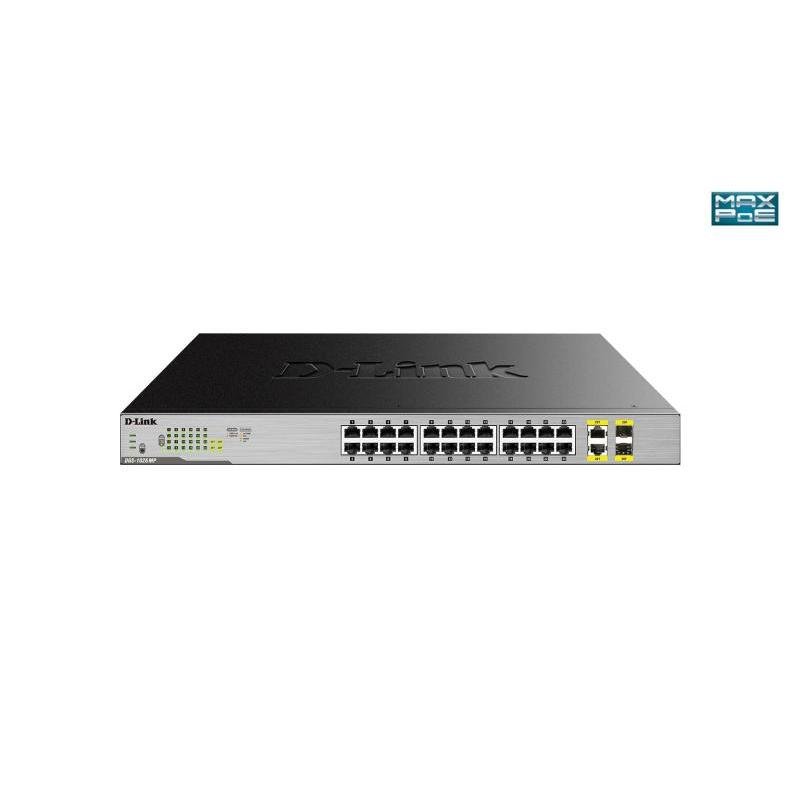

NET SWITCH 24PORT 10/100/1000/2COMBO DGS-1026MP D-LINK

NET SWITCH 24PORT 10/100/1000/2COMBO DGS-1026MP D-LINK
NET SWITCH 24PORT 10/100/1000/2COMBO DGS-1026MP D-LINK
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 52
Врз основа на 0 коментари. - Напиши коментар
34,518ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 229933
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
  • Vendor Homepage: https://www.dlink.com/uk/en/business-solutions/switching/unmanaged-switches/rackmount/dgs-1026mp-26-port-gigabit-max-poe-switch
  • Name: NET SWITCH 24PORT 10/100/1000/2COMBO DGS-1026MP D-LINK
  • Category Code: SWI
  • Model name: DGS-1026MP
  • Switch type: Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Auto MDI/MDI-X: Yes
  • Switching capacity: 52
  • Throughput: 38.69
  • Forwarding rate: 38.69
  • MAC address table: 8192
  • Store-and-forward: Yes
  • Packet buffer memory: 0.512
  • Rack mounting: Yes
  • Product colour: Black/Grey
  • LED indicators: Activity/Link/PoE/Power/Power fail/Speed
  • Number of fans: 2
  • Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1
  • Buffer size: 512
  • Mean time between failures (MTBF): 205975
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Power consumption (max): 444.1
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 370
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Heat dissipation: 1515
  • Width: 440
  • Depth: 250.4
  • Height: 44
  • Weight: 3100
  • Package width: 388
  • Package depth: 506
  • Package height: 90
  • Package weight: 3697
  • Compliance certificates: BSMI/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/VCCI
  • Master (outer) cases per pallet (air): 30
  • Master (outer) cases per pallet (sea): 40
  • Pallet gross length: 1100
  • Pallet gross weight (air): 281820
  • Pallet gross weight (sea): 369760
  • Pallet gross width: 1200
  • Pallet height (air): 1365
  • Pallet height (sea): 1775
  • Products per pallet (air): 60
  • Products per pallet (sea): 80
  • Products per shipping (inner) case: 2
  • Shipping (inner) case gross weight: 8794
  • Shipping (inner) case height: 410
  • Shipping (inner) case length: 520
  • Shipping (inner) case net weight: 8394
  • Shipping (inner) case width: 205
  • Certification: FCC Class A CE CCC RoHS VCCI BSMI RCM
  • Harmonized System (HS) code: 85176990
  • Unit Calculated Volume: 0.01766
  • Unit Calculated Weight: 4.47
Specifications
AC input frequency50/60
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Buffer size512
CertificationFCC Class A CE CCC RoHS VCCI BSMI RCM
Combo SFP ports quantity2
Compliance certificatesBSMI/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/VCCI
Depth250.4
Harmonized System (HS) code85176990
Heat dissipation1515
Height44
LED indicatorsActivity/Link/PoE/Power/Power fail/Speed
MAC address table8192
Master (outer) cases per pallet (air)30
Master (outer) cases per pallet (sea)40
Mean time between failures (MTBF)205975
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of fans2
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 50
Package depth506
Package height90
Package weight3697
Package width388
Packet buffer memory0.512
Pallet gross length1100
Pallet gross weight (air)281820
Pallet gross weight (sea)369760
Pallet gross width1200
Pallet height (air)1365
Pallet height (sea)1775
Power consumption (max)444.1
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30
Power over Ethernet plus (PoE+) ports quantity24
Power supply includedYes
Product colourBlack/Grey
Products per pallet (air)60
Products per pallet (sea)80
Products per shipping (inner) case2
Rack mountingYes
SafetyUL/CSA 60950-1, EN 60950-1, IEC 60950-1
Shipping (inner) case gross weight8794
Shipping (inner) case height410
Shipping (inner) case length520
Shipping (inner) case net weight8394
Shipping (inner) case width205
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-40 - 70
Store-and-forwardYes
SummaryD-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
Throughput38.69
Total Power over Ethernet (PoE) budget370
Weight3100
Width440
Specs
Category CodeSWI
Description

26 Port Gigabit Max PoE Switch

DGS-1026MP

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

Power over Ethernet
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

Expand Your Network
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

Energy Efficient
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

Hassle-Free Setup
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

Forwarding rate38.69
Model nameDGS-1026MP
NameNET SWITCH 24PORT 10/100/1000/2COMBO DGS-1026MP D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/eaa16ef6-96e2-4d77-9f9b-8806ce2def62.Jpeg
Power sourceAC
Switch typeUnmanaged
Switching capacity52
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/eaa16ef6-96e2-4d77-9f9b-8806ce2def62.Jpeg
Unit Calculated Volume0.01766
Unit Calculated Weight4.47
Vendor Homepagehttps://www.dlink.com/uk/en/business-solutions/switching/unmanaged-switches/rackmount/dgs-1026mp-26-port-gigabit-max-poe-switch
