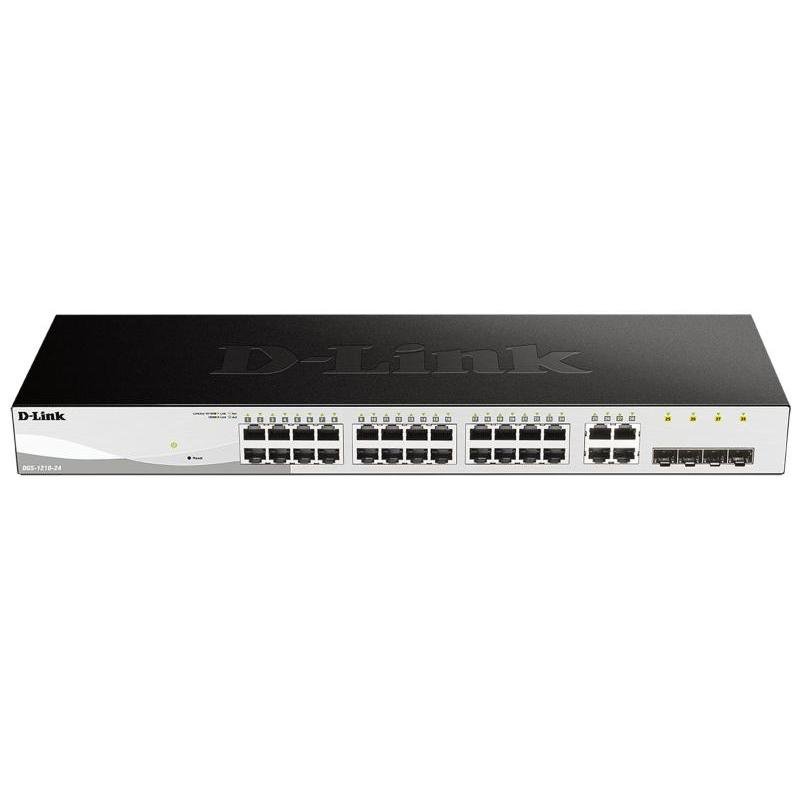

NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK

NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK
NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 20
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
13,712ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 378248
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link DGS-1210-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://eu.dlink.com/uk/en/products/dgs-1210-series-gigabit-smart-switches
  • Name: NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK
  • Category Code: SWI
  • Model name: DGS-1210-24/E
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • MIB support: 1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
  • Basic switching RJ-45 Ethernet ports quantity: 20
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 4
  • Power connector: DC-in jack
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Cable types supported: Cat5/Cat5e
  • Port mirroring: Yes
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Head-of-line (HOL) blocking: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Number of VLANs: 256
  • Switching capacity: 56
  • Forwarding rate: 41.7
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Packet buffer memory: 0.5
  • DHCP features: DHCP client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • Noise level: 0
  • Mean time between failures (MTBF): 992594
  • AC input voltage: 100 - 240
  • Power consumption (max): 16.94
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Heat dissipation: 82.23
  • Width: 440
  • Depth: 140
  • Height: 44
  • Weight: 2150
  • Package width: 249
  • Package depth: 493
  • Package height: 72
  • Package weight: 3241
  • Certification: CE Class A, cUL, CE LVD
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.008918
  • Unit Calculated Weight: 3
Specifications
AC input voltage100 - 240
Access Control List (ACL)Yes
ARP inspectionYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
Cable types supportedCat5/Cat5e
CertificationCE Class A, cUL, CE LVD
Combo SFP ports quantity4
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth140
DHCP featuresDHCP client
Flow control supportYes
Form factor1U
Full duplexYes
Head-of-line (HOL) blockingYes
Heat dissipation82.23
Height44
IGMP snoopingYes
Link aggregationYes
MAC address table8000
Mean time between failures (MTBF)992594
MIB support1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
Multicast supportYes
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Noise level0
Number of VLANs256
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Package depth493
Package height72
Package weight3241
Package width249
Packet buffer memory0.5
Port mirroringYes
Power connectorDC-in jack
Power consumption (max)16.94
Product colourBlack
Quality of Service (QoS) supportYes
Rack mountingYes
Spanning tree protocolYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-20 - 70
Store-and-forwardYes
SummaryD-Link DGS-1210-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Switch layerL2
System event logYes
Web-based managementYes
Weight2150
Width440
Specs
Category CodeSWI
Description

With increased PoE output and advanced Layer 2 management and security features, D‑Link’s DGS‑1210 Smart Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.

Advanced Layer 2 Management
The DGS-1210 Smart family features advanced network management accessible via the Web-based UI that equip your business with network capabilities such as VLANs, Spanning Tree Protocol (STP), link aggregation, and dual configuration files.

With powerful security features including IGMP snooping, access control lists, and port security the DGS-1210 Smart family is a versatile solution for access-edge network environments.

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.

PoE and PoE+, with budgets up to 193W
The DGS-1210 Smart Series includes a range of PoE-enabled switches for business looking to power VoIP phones, wireless access points or network cameras.

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1210 Smart series to save power without any sacrifices. The majority of the family utilises a fanless design, helping reduce energy usage.

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

  • Layer 2 management and security
  • Web-based User-Interface
  • PoE options up to 193W power budget
  • Dual config files

Forwarding rate41.7
Model nameDGS-1210-24/E
NameNET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/8f152bab-bcb0-4fb5-b51a-86ec3bb9892a.Jpeg
Switch typeManaged
Switching capacity56
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/8f152bab-bcb0-4fb5-b51a-86ec3bb9892a.Jpeg
Unit Calculated Volume0.008918
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://eu.dlink.com/uk/en/products/dgs-1210-series-gigabit-smart-switches
