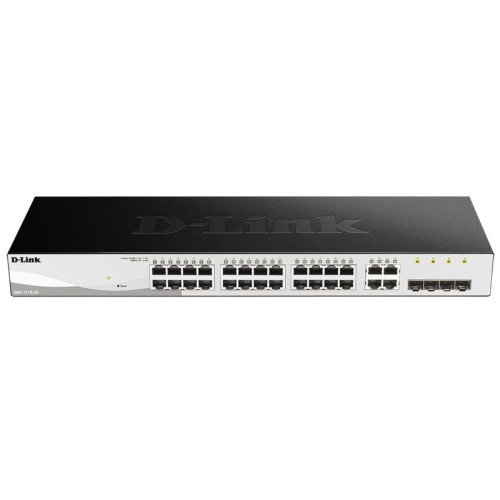

NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK

Technical Specifications

• Summary: D-Link DGS-1210-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.dlink.com/uk/en/products/dgs-1210-series-gigabit-smart-switches
• Name: NET SWITCH 24PORT 10/100/1000/4COMBO DGS-1210-24/E D-LINK
• Category Code: SWI
• Model name: DGS-1210-24/E
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• System event log: Yes
• MIB support: 1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
• Basic switching RJ-45 Ethernet ports quantity: 20
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 4
• Power connector: DC-in jack
• Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Cable types supported: Cat5/Cat5e
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• Number of VLANs: 256
• Switching capacity: 56
• Forwarding rate: 41.7
• MAC address table: 8000
• Store-and-forward: Yes
• Packet buffer memory: 0.5
• DHCP features: DHCP client
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Black
• Noise level: 0
• Mean time between failures (MTBF): 992594
• AC input voltage: 100 - 240
• Power consumption (max): 16.94
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 82.23
• Width: 440
• Depth: 140
• Height: 44
• Weight: 2150
• Package width: 249
• Package depth: 493
• Package height: 72
• Package weight: 3241
• Certification: CE Class A, cUL, CE LVD
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008918
• Unit Calculated Weight: 3
