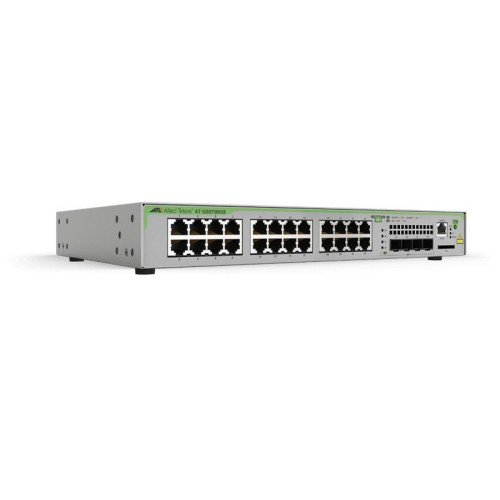

NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED

Technical Specifications

• Summary: Allied Telesis GS970M. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
• Vendor Homepage: https://www.alliedtelesis.com/products/switches/gs970m-series
• Name: NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED
• Category Code: SWI
• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 4
• Console port: RJ-45
• Networking standards: IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1x/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Port mirroring: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN
• Number of VLANs: 4094
• Switching capacity: 56
• Throughput: 41.7
• MAC address table: 16000
• Latency (10-100 Mbps): 8.6
• Latency (1 Gbps): 4.3
• Jumbo frames support: Yes
• Jumbo frames: 10000
• Packet buffer memory: 1.5
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Authentication: MAC-based authentication,Web-based authentication
• BPDU filtering/protection: Yes
• Loop protection: Yes
• MAC address filtering: Yes
• Security algorithms: 128-bit AES/192-bit AES/256-bit AES/3DES/AES/DES/MD5/SHA-1/SHA-2/SHA-256
• SSH/SSL support: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Grey
• LED indicators: Yes
• Memory type: DDR-SDRAM
• Internal memory: 512
• Flash memory: 64
• Noise level: 34
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 26
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 5 - 90
• Storage relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3000
• Non-operating altitude: 0 - 4000
• Heat dissipation: 89
• Width: 341
• Depth: 231
• Height: 44
• Weight: 2400
• Package width: 430
• Package depth: 360
• Package height: 150
• Package weight: 4000
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02198
• Unit Calculated Weight: 7
