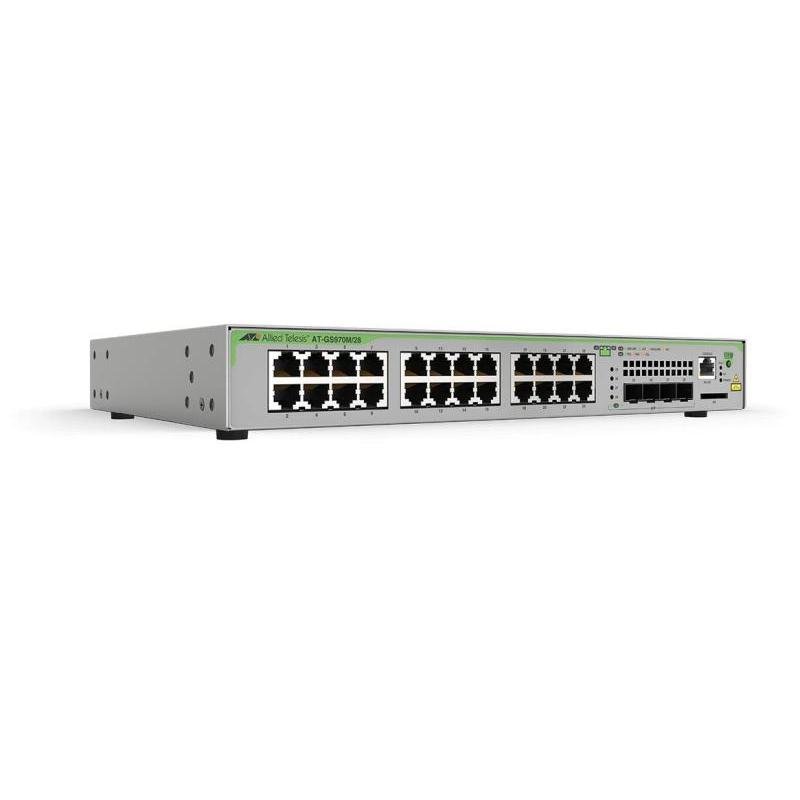

NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED

NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED
NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED
  • Switch type: Managed
  • Switch layer: L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
70,661ден.
  • Достапност:
  • Бренд: ALLIED
  • Шифра: 278008
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Allied Telesis GS970M. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
  • Vendor Homepage: https://www.alliedtelesis.com/products/switches/gs970m-series
  • Name: NET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED
  • Category Code: SWI
  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1x/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN
  • Number of VLANs: 4094
  • Switching capacity: 56
  • Throughput: 41.7
  • MAC address table: 16000
  • Latency (10-100 Mbps): 8.6
  • Latency (1 Gbps): 4.3
  • Jumbo frames support: Yes
  • Jumbo frames: 10000
  • Packet buffer memory: 1.5
  • DHCP features: DHCP client/DHCP server
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Authentication: MAC-based authentication,Web-based authentication
  • BPDU filtering/protection: Yes
  • Loop protection: Yes
  • MAC address filtering: Yes
  • Security algorithms: 128-bit AES/192-bit AES/256-bit AES/3DES/AES/DES/MD5/SHA-1/SHA-2/SHA-256
  • SSH/SSL support: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Grey
  • LED indicators: Yes
  • Memory type: DDR-SDRAM
  • Internal memory: 512
  • Flash memory: 64
  • Noise level: 34
  • AC input voltage: 100 - 240
  • AC input frequency: 50 - 60
  • Power consumption (max): 26
  • Operating temperature (T-T): 0 - 50
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Operating altitude: 0 - 3000
  • Non-operating altitude: 0 - 4000
  • Heat dissipation: 89
  • Width: 341
  • Depth: 231
  • Height: 44
  • Weight: 2400
  • Package width: 430
  • Package depth: 360
  • Package height: 150
  • Package weight: 4000
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02198
  • Unit Calculated Weight: 7
Specifications
AC input frequency50 - 60
AC input voltage100 - 240
Access Control List (ACL)Yes
ARP inspectionYes
AuthenticationMAC-based authentication,Web-based authentication
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
BPDU filtering/protectionYes
Combo SFP ports quantity4
Console portRJ-45
Depth231
DHCP featuresDHCP client/DHCP server
Flash memory64
Flow control supportYes
Form factor1U
Harmonized System (HS) code85176990
Heat dissipation89
Height44
IGMP snoopingYes
Internal memory512
Jumbo frames10000
Jumbo frames supportYes
Latency (1 Gbps)4.3
Latency (10-100 Mbps)8.6
LED indicatorsYes
Link aggregationYes
Loop protectionYes
MAC address filteringYes
MAC address table16000
Memory typeDDR-SDRAM
Multicast supportYes
Networking standardsIEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1x/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Noise level34
Non-operating altitude0 - 4000
Number of VLANs4094
Operating altitude0 - 3000
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)0 - 50
Package depth360
Package height150
Package weight4000
Package width430
Packet buffer memory1.5
Port mirroringYes
Power consumption (max)26
Product colourGrey
Quality of Service (QoS) supportYes
Rack mountingYes
Security algorithms128-bit AES/192-bit AES/256-bit AES/3DES/AES/DES/MD5/SHA-1/SHA-2/SHA-256
Spanning tree protocolYes
SSH/SSL supportYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-20 - 70
SummaryAllied Telesis GS970M. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
Switch layerL3
System event logYes
Throughput41.7
Virtual LAN featuresPort-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN
VLAN supportYes
Web-based managementYes
Weight2400
Width341
Specs
Category CodeSWI
Description

The GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.

- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF)
- Flexible deployment with 10, 18 and 28 port models
- High-speed gigabit network access for power users
- Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones
- Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical - User Interface (GUI)
- AlliedWare Plus™ Enterprise-class operating system
- Eco-friendly for reduced running costs
- Network Access Control (NAC) for edge security
- Ethernet Protection Switched Ring (EPSRing™) enables resilient high-speed ring-based networks
- Static Routing and RIP support Layer 3 environments

NameNET SWITCH 24PORT 10/100/1000T/+4SFP AT-GS970M/28PS-50 ALLIED
PictureUrlhttps://static.elko.cloud/ProductImages/27bc88f5-5c45-43d3-ba99-69b265d091b6.Jpeg
Switch typeManaged
Switching capacity56
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/27bc88f5-5c45-43d3-ba99-69b265d091b6.Jpeg
Unit Calculated Volume0.02198
Unit Calculated Weight7
Units per Shipping Box1
Vendor Homepagehttps://www.alliedtelesis.com/products/switches/gs970m-series
