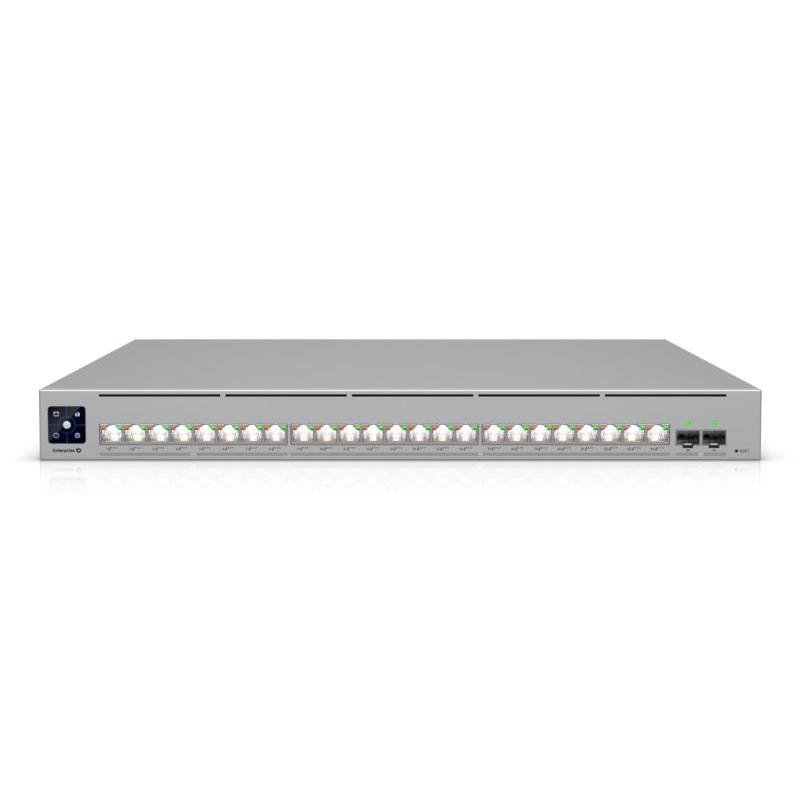

ECS-24-POE

Technical Specifications

• Summary: Ubiquiti UniFi ECS-24-POE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 128000 entries, Switching capacity: 460 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3bt. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
• Vendor Homepage: https://eu.store.ui.com/eu/en/category/switching-enterprise/collections/enterprise-campus-24/products/ecs-24-poe
• Name: NET SWITCH 24PORT POE ENTERPR/CAMPUS ECS-24-POE UBIQUITI
• Category Code: SWI
• Model: ECS-24-POE
• Model name: Enterprise Campus 24 PoE
• Switch type: Managed
• Switch layer: L2/L3
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• 2.5G Ethernet (copper) ports quantity: 8
• 10G Ethernet (copper) ports quantity: 16
• SFP module slots quantity: 2
• SFP28 ports quantity: 2
• Power connector: AC-in jack
• Networking standards: IEEE 802.1x/IEEE 802.3bt
• 10G support: Yes
• Port mirroring: Yes
• Broadcast storm control: Yes
• Ethernet LAN data rates: 10,100,1000,2500,5000,10000
• Flow control support: Yes
• IPv4 routes: 256000
• Link aggregation: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Voice VLAN
• Switching capacity: 460
• Throughput: 230
• Forwarding rate: 342.24
• MAC address table: 128000
• Static route: Yes
• Jumbo frames support: Yes
• Packet buffer memory: 8
• DHCP features: DHCP guarding/DHCP relay/DHCP snooping
• IGMP snooping: Yes
• Loop protection: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Form factor: 1U
• Product colour: Grey
• Housing material: SGCC
• Reset button: Yes
• LED indicators: Activity/Link/Status
• Redundant fans support: Yes
• Display type: LCM
• Number of fans: 4
• Power source: AC
• Power supply included: Yes
• Redundant power supply (RPS) support: Yes
• Number of power supply units: 2
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power consumption (max): 2400
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: PoE+/PoE++ (4PPoE)
• Power over Ethernet (PoE) power per port: 90
• Total Power over Ethernet (PoE) budget: 1050
• Operating temperature (T-T): -5 - 40
• Operating relative humidity (H-H): 10 - 90
• Width: 442.4
• Depth: 496
• Height: 43.7
• Weight: 9460
• Cables included: Power
• Rack mount kit: Yes
• Rack rails: Yes
• Mounting brackets included: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.1063
• Unit Calculated Weight: 17
