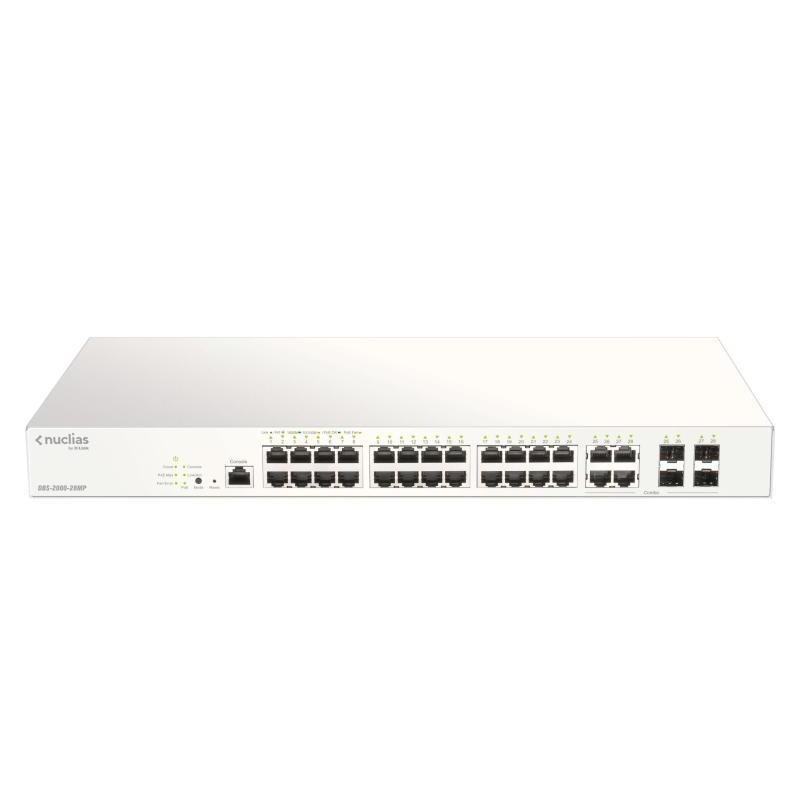

NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK

NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK
достава за 24h
NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Switching capacity: 56
Врз основа на 0 коментари. - Напиши коментар
53,923ден.
  • Достапност: Има залиха
  • Бренд: D-LINK
  • Шифра: 382169
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3at. Rack mounting
  • Vendor Homepage: https://www.dlink.com/en/products/dbs-2000-28mp-28-port-nuclias-cloud-managed-poe-switch
  • Name: NET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK
  • Category Code: SWI
  • Model name: DBS-2000-28MP
  • Switch type: Managed
  • Switch layer: L2
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 4
  • Console port: RJ-45
  • Networking standards: IEEE 802.3ad/IEEE 802.3at
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Auto MDI/MDI-X: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Switching capacity: 56
  • Forwarding rate: 41.7
  • Packet buffer memory: 4.1
  • IGMP snooping: Yes
  • Security algorithms: WPA/WPA2
  • Rack mounting: Yes
  • Product colour: Grey
  • LED indicators: Yes
  • Built-in processor: Yes
  • Processor frequency: 500
  • Memory type: DDR3-SDRAM
  • Internal memory: 256
  • Flash memory: 32
  • Mean time between failures (MTBF): 277967
  • AC input voltage: 100 - 240
  • Power consumption (max): 446.1
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 370
  • Operating temperature (T-T): -5 - 50
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 0 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Operating altitude: 0 - 1500
  • Heat dissipation: 1521.99
  • Width: 440
  • Depth: 250
  • Height: 44
  • Weight: 3940
  • Package width: 365
  • Package depth: 521
  • Package height: 92
  • Package weight: 5126
  • Master (outer) cases per pallet (air): 24
  • Master (outer) cases per pallet (sea): 40
  • Pallet gross length: 1100
  • Pallet gross weight (air): 409500
  • Pallet gross weight (sea): 670000
  • Pallet gross width: 1200
  • Pallet height (air): 1314
  • Pallet height (sea): 2100
  • Products per pallet (air): 72
  • Products per pallet (sea): 120
  • Products per shipping (inner) case: 3
  • Shipping (inner) case gross weight: 16250
  • Shipping (inner) case height: 393
  • Shipping (inner) case length: 539
  • Shipping (inner) case net weight: 15378
  • Shipping (inner) case width: 295
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01732
  • Unit Calculated Weight: 4
Specifications
AC input voltage100 - 240
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorYes
Combo SFP ports quantity4
Console portRJ-45
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Depth250
Flash memory32
Harmonized System (HS) code85176990
Heat dissipation1521.99
Height44
IGMP snoopingYes
Internal memory256
LED indicatorsYes
Link aggregationYes
Master (outer) cases per pallet (air)24
Master (outer) cases per pallet (sea)40
Mean time between failures (MTBF)277967
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.3ad/IEEE 802.3at
Operating altitude0 - 1500
Operating relative humidity (H-H)0 - 95
Operating temperature (T-T)-5 - 50
Package depth521
Package height92
Package weight5126
Package width365
Packet buffer memory4.1
Pallet gross length1100
Pallet gross weight (air)409500
Pallet gross weight (sea)670000
Pallet gross width1200
Pallet height (air)1314
Pallet height (sea)2100
Power consumption (max)446.1
Power over Ethernet (PoE) power per port30
Processor frequency500
Product colourGrey
Products per pallet (air)72
Products per pallet (sea)120
Products per shipping (inner) case3
Rack mountingYes
Security algorithmsWPA/WPA2
Shipping (inner) case gross weight16250
Shipping (inner) case height393
Shipping (inner) case length539
Shipping (inner) case net weight15378
Shipping (inner) case width295
Spanning tree protocolYes
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-20 - 70
SummaryD-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3at. Rack mounting
Switch layerL2
Total Power over Ethernet (PoE) budget370
Web-based managementYes
Weight3940
Width440
Specs
Category CodeSWI
Description

Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

  • 24 x 10/100/1000BASE-T PoE ports
  • 4 x 10/100/1000BASE-T ports
  • 370W PoE power budget
  • Supports IEEE 802.3at PoE
  • Zero-Touch Deployment
  • Cloud Management w/99.9% SLA
  • WPA/WPA2/WPA3 Encryption
  • Innovative D-Link Green Energy-saving features
  • Intuitive Web Portal for comprehensive switch management
  • Multilingual Support

Forwarding rate41.7
Model nameDBS-2000-28MP
NameNET SWITCH 28PORT 100/1000/4SFP DBS-2000-28MP D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/1364a8b0-add9-4763-924e-807c8b0e0063.Jpeg
Switch typeManaged
Switching capacity56
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1364a8b0-add9-4763-924e-807c8b0e0063.Jpeg
Unit Calculated Volume0.01732
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://www.dlink.com/en/products/dbs-2000-28mp-28-port-nuclias-cloud-managed-poe-switch
