- Switch type: Managed
- Switch layer: L2
- Basic switching RJ-45 Ethernet ports quantity: 48
- Switching capacity: 104
- Достапност:
- Бренд: D-LINK
- Шифра: 153112
- Гарантен рок: 12 месеци
- Достава: 13-16 дена
Technical Specifications

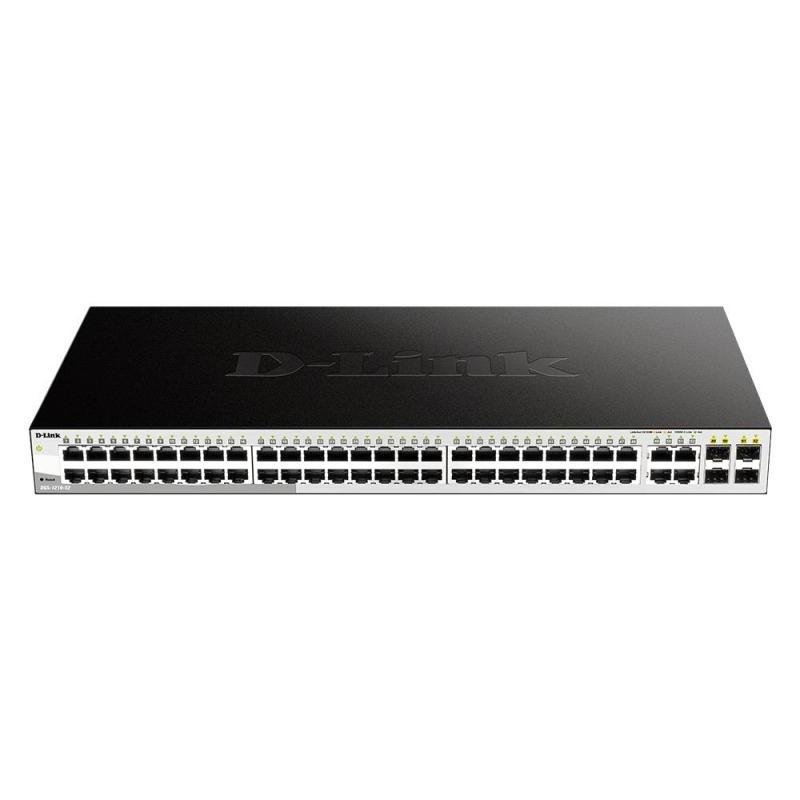

- Summary: D-Link 52-Port Gigabit Smart Managed Switch including 4 x 100/1000Mbps Combo Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
- Vendor Homepage: https://www.dlink.com/en/products/dgs-1210-series-gigabit-smart-plus-switches
- Name: NET SWITCH 52PORT 10/100/1000/DGS-1210-52D-LINK
- Category Code: SWI
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
- MIB support: Y
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
- Power connector: AC-in jack
- Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Broadcast storm control: Yes
- Flow control support: Yes
- Head-of-line (HOL) blocking: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 256
- Switching capacity: 104
- Forwarding rate: 77.4
- MAC address table: 16000
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 12
- DHCP features: DHCP client/DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Loop protection: Yes
- MAC address filtering: Yes
- Multicast support: Yes
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Memory type: DDR3-SDRAM
- Internal memory: 256
- Flash memory: 32
- Noise level: 0
- Mean time between failures (MTBF): 400667
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240
- AC input frequency: 50/60
- Power consumption (max): 34.85
- Operating temperature (T-T): -5 - 50
- Storage temperature (T-T): -40 - 70
- Operating relative humidity (H-H): 0 - 95
- Storage relative humidity (H-H): 0 - 95
- Heat dissipation: 118.92
- Width: 440
- Depth: 210
- Height: 44
- Weight: 3460
- Units per Shipping Box: 1
- Unit Calculated Volume: 0.02035
- Unit Calculated Weight: 4
| Specifications | |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Access Control List (ACL) | Yes |
| ARP inspection | Yes |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Combo SFP ports quantity | 4 |
| Configuring Location Settings (CLI) | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Depth | 210 |
| DHCP features | DHCP client/DHCP server |
| Flash memory | 32 |
| Flow control support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 118.92 |
| Height | 44 |
| IGMP snooping | Yes |
| Internal memory | 256 |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 |
| Mean time between failures (MTBF) | 400667 |
| Memory type | DDR3-SDRAM |
| MIB support | Y |
| Multicast support | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Noise level | 0 |
| Number of VLANs | 256 |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -5 - 50 |
| Packet buffer memory | 12 |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 34.85 |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Spanning tree protocol | Yes |
| Stackable | Yes |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Store-and-forward | Yes |
| Summary | D-Link 52-Port Gigabit Smart Managed Switch including 4 x 100/1000Mbps Combo Ports. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U |
| Switch layer | L2 |
| System event log | Yes |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 3460 |
| Width | 440 |
| Specs | |
| Auto-negotiation | Yes |
| Category Code | SWI |
| Description | Smart Managed with a Plus
|
| Forwarding rate | 77.4 |
| Name | NET SWITCH 52PORT 10/100/1000/DGS-1210-52D-LINK |
| PictureUrl | https://static.elko.cloud/ProductImages/c836206d-ee42-4e9a-9564-e000657f6224.Jpeg |
| Power source | AC |
| Switch type | Managed |
| Switching capacity | 104 |
| thumbnailImagePath | https://static.elko.cloud/ProductImagesThumbs/c836206d-ee42-4e9a-9564-e000657f6224.Jpeg |
| Unit Calculated Volume | 0.02035 |
| Unit Calculated Weight | 4 |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dlink.com/en/products/dgs-1210-series-gigabit-smart-plus-switches |
