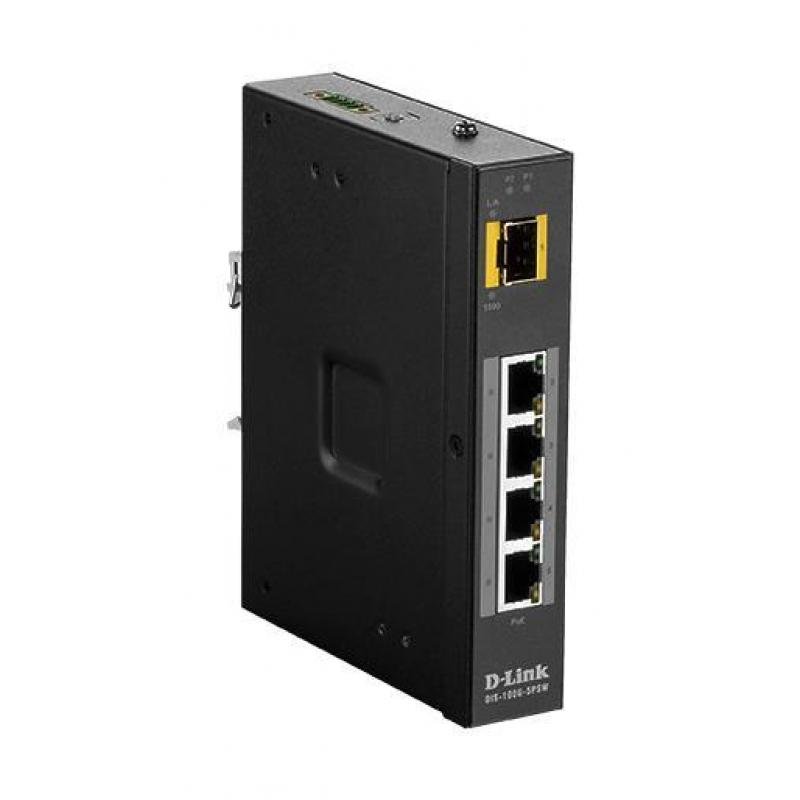

DIS-100G-5PSW

DIS-100G-5PSW
DIS-100G-5PSW
  • Switch type: Unmanaged
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • SFP module slots quantity: 1
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
34,651ден.
  • Достапност:
  • Бренд: D-LINK
  • Шифра: 371648
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable
  • Vendor Homepage: https://eu.dlink.com/uk/en/products/dis-100g-5psw
  • Name: NET SWITCH 5PORT 100/1000/DIS-100G-5PSW D-LINK
  • Category Code: SWI
  • Model: DIS-100G-5PSW
  • Switch type: Unmanaged
  • Switch layer: L2
  • Traffic shaping: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Fiber optic connector: LC
  • Networking standards: IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Switching capacity: 10
  • Forwarding rate: 7.44
  • MAC address table: 2000
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Multicast support: Yes
  • Product colour: Black
  • LED indicators: LAN/PoE/Power
  • DIN rail mounting: Yes
  • Wall mountable: Yes
  • Electromagnetic compatibility: FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
  • DC input voltage: 12 - 58
  • Power consumption (max): 120.2
  • Power protection features: Over current/Reverse polarity
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Power over Ethernet (PoE) voltage range: 54 - 58
  • Total Power over Ethernet (PoE) budget: 120
  • Operating temperature (T-T): -40 - 75
  • Storage temperature (T-T): -40 - 85
  • Operating relative humidity (H-H): 5 - 95
  • Storage relative humidity (H-H): 0 - 95
  • Heat dissipation: 410.12
  • Width: 139
  • Depth: 29
  • Height: 107
  • Weight: 375
  • Package width: 181
  • Package depth: 210
  • Package height: 75
  • Package weight: 700
  • Master (outer) cases per pallet (air): 30
  • Master (outer) cases per pallet (sea): 48
  • Pallet gross length: 1200
  • Pallet gross weight (air): 251300
  • Pallet gross weight (sea): 391880
  • Pallet gross width: 1100
  • Pallet height (air): 1335
  • Pallet height (sea): 2055
  • Products per pallet (air): 300
  • Products per pallet (sea): 480
  • Products per shipping (inner) case: 10
  • Shipping (inner) case gross weight: 7810
  • Shipping (inner) case height: 240
  • Shipping (inner) case length: 390
  • Shipping (inner) case net weight: 7000
  • Shipping (inner) case width: 380
  • Certification: IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002646
  • Unit Calculated Weight: 0.7
Specifications
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationIEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE
DC input voltage12 - 58
Depth29
DIN rail mountingYes
Electromagnetic compatibilityFCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Fiber optic connectorLC
Flow control supportYes
Full duplexYes
Harmonized System (HS) code85176990
Heat dissipation410.12
Height107
Jumbo frames9000
Jumbo frames supportYes
LED indicatorsLAN/PoE/Power
MAC address table2000
Master (outer) cases per pallet (air)30
Master (outer) cases per pallet (sea)48
Multicast supportYes
Networking standardsIEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-40 - 75
Package depth210
Package height75
Package weight700
Package width181
Pallet gross length1200
Pallet gross weight (air)251300
Pallet gross weight (sea)391880
Pallet gross width1100
Pallet height (air)1335
Pallet height (sea)2055
Power consumption (max)120.2
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage range54 - 58
Power over Ethernet plus (PoE+) ports quantity4
Power protection featuresOver current/Reverse polarity
Product colourBlack
Products per pallet (air)300
Products per pallet (sea)480
Products per shipping (inner) case10
SFP module slots quantity1
Shipping (inner) case gross weight7810
Shipping (inner) case height240
Shipping (inner) case length390
Shipping (inner) case net weight7000
Shipping (inner) case width380
Storage relative humidity (H-H)0 - 95
Storage temperature (T-T)-40 - 85
Store-and-forwardYes
SummaryD-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4 PoE) & 1 x 100/1000BaseSFP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... DC input voltage: 12 - 58 V. Power over Ethernet (PoE). Wall mountable
Switch layerL2
Total Power over Ethernet (PoE) budget120
Traffic shapingYes
Wall mountableYes
Weight375
Width139
Specs
Auto-negotiationYes
Category CodeSWI
Description

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.

  • 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots
  • 120 W PoE Budget
  • Unmanaged plug-and-play simplicity
  • Withstands extreme temperatures
  • Certified for vibration, shock, free-fall, EMC

Forwarding rate7.44
ModelDIS-100G-5PSW
NameNET SWITCH 5PORT 100/1000/DIS-100G-5PSW D-LINK
PictureUrlhttps://static.elko.cloud/ProductImages/4dcb38ef-090e-477b-b398-55dd5eba6fa3.Jpeg
Switch typeUnmanaged
Switching capacity10
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/4dcb38ef-090e-477b-b398-55dd5eba6fa3.Jpeg
Unit Calculated Volume0.002646
Unit Calculated Weight0.7
Units per Shipping Box1
Vendor Homepagehttps://eu.dlink.com/uk/en/products/dis-100g-5psw
