NET SWITCH 5PORT 10/100/1000M/GEP-0523 LEVELONE

NET SWITCH 5PORT 10/100/1000M/GEP-0523 LEVELONE
достава за 24h
NET SWITCH 5PORT 10/100/1000M/GEP-0523 LEVELONE
  • Basic switching RJ-45 Ethernet ports quantity: 5
Врз основа на 0 коментари. - Напиши коментар
6,637ден.
  • Достапност: Има залиха
  • Бренд: LEVELONE
  • Шифра: 430883
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: LevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 52 - 57 V. Power over Ethernet (PoE)
  • Vendor Homepage: https://uk.level1.com/Switches/GEP-0523/p-4188.htm
  • Name: NET SWITCH 5PORT 10/100/1000M/GEP-0523 LEVELONE
  • Category Code: SWI
  • Model name: GEP-0523
  • Traffic classification: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
  • MAC address table: 8000
  • Store-and-forward: Yes
  • Maximum data transfer rate: 1000
  • Jumbo frames support: Yes
  • Jumbo frames: 9126
  • Packet buffer memory: 1
  • Product colour: Black
  • Mean time between failures (MTBF): 30000
  • Power supply included: Yes
  • DC input voltage: 52 - 57
  • Input current: 1.25
  • Power consumption (typical): 5
  • Power protection features: Over current/Short circuit
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 4
  • Total Power over Ethernet (PoE) budget: 60
  • Operating temperature (T-T): -20 - 70
  • Storage temperature (T-T): -20 - 70
  • Operating relative humidity (H-H): 5 - 90
  • Storage relative humidity (H-H): 5 - 90
  • Width: 96
  • Depth: 30
  • Height: 111
  • Weight: 350
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package width: 190
  • Package depth: 55
  • Package height: 230
  • Package weight: 750
  • Certification: CE,FCC
  • Harmonized System (HS) code: 85176990
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002736
  • Unit Calculated Weight: 2
Specifications
AC adapter includedYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE,FCC
DC input voltage52 - 57
Depth30
Harmonized System (HS) code85176990
Height111
Input current1.25
Jumbo frames9126
Jumbo frames supportYes
MAC address table8000
Maximum data transfer rate1000
Mean time between failures (MTBF)30000
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Operating relative humidity (H-H)5 - 90
Operating temperature (T-T)-20 - 70
Package depth55
Package height230
Package weight750
Package width190
Packet buffer memory1
Power consumption (typical)5
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power protection featuresOver current/Short circuit
Power supply includedYes
Product colourBlack
Quick start guideYes
Storage relative humidity (H-H)5 - 90
Storage temperature (T-T)-20 - 70
Store-and-forwardYes
SummaryLevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE Outputs, 60W. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 52 - 57 V. Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget60
Traffic classificationYes
Weight350
Width96
Specs
Category CodeSWI
Description

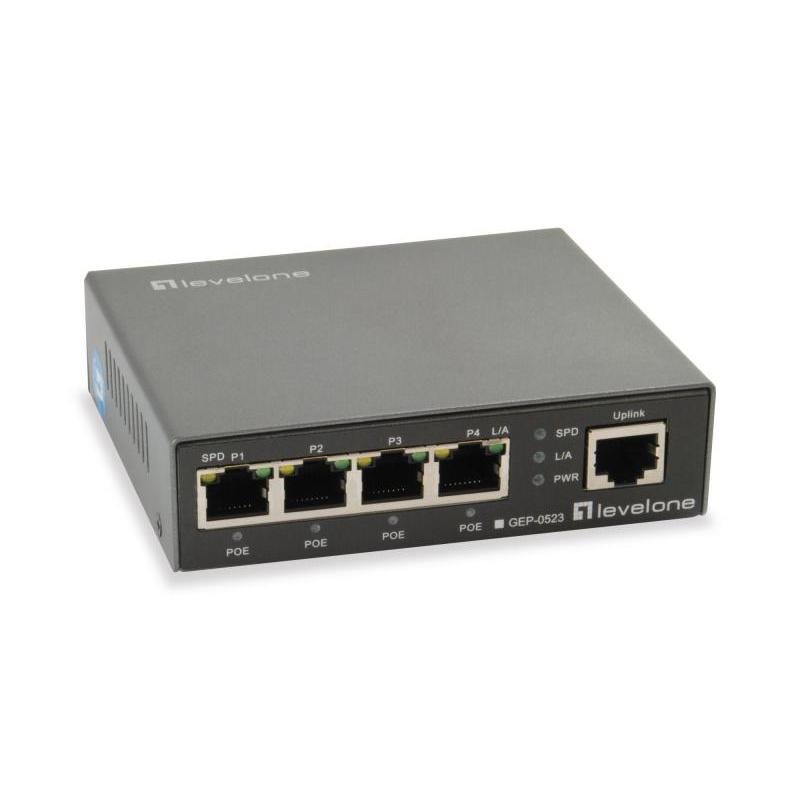

The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.

The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.

In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.

For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network.

  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • 10/100/1000Mbps wire speed transmission and reception
  • Auto-detection and protection of non-standard PoE devices
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Total PoE power budget: 60W, up to 30W per port
