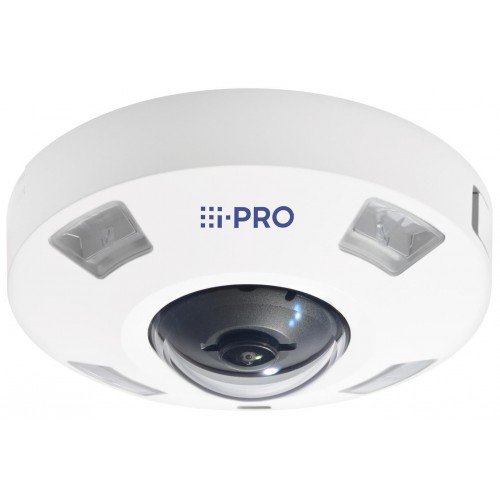

NET CAMERA 5MP FISHEYE AI OUTD/VANDAL 360DEG WV-S4556LA I-PRO

Technical Specifications

• Summary: i-PRO WV-S4556LA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 360°, Lens viewing angle, horizontal: 186°, Lens viewing angle, vertical: 186°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 4x, Fixed focal length: 0.84 mm, Detect distance (wide): 20.7 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s4556la
• Name: NET CAMERA 5MP FISHEYE AI OUTD/VANDAL 360DEG WV-S4556LA I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Dust resistant/Shock resistant/Water resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish/Traditional Chinese
• Number of languages: 9
• Minimum illumination: 0
• Field of view (FOV) angle: 360
• Lens viewing angle, horizontal: 186
• Lens viewing angle, vertical: 186
• Camera shutter speed: 16/30 - 1/10000
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/3
• Sensor type: CMOS
• Digital zoom: 4
• Maximum aperture number: 2.4
• Closest focusing distance: 0.3
• Detect distance (tele): 38
• Detect distance (wide): 20.7
• Fixed focal length: 0.84
• Identify distance (wide): 2.1
• Observe distance (tele): 13.2
• Observe distance (wide): 8.3
• Recognize distance (tele): 4.3
• Recognize distance (wide): 4.1
• Night vision: Yes
• Night vision distance: 14
• LED type: IR
• Maximum resolution: 2192 x 2192
• Total megapixels: 5
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 1280/1280 x 720 (HD 720)/1280 x 960/1600 x 1200 (UXGA)/2192 x 2192/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)/640 x 640/800 x 600 (SVGA)
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Privacy masking: Yes
• Voice codecs: AAC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Composite video out: 1
• Microphone in: Yes
• Headphone outputs: 1
• Alarm input channels: 3
• Alert notification type: E-mail,Push notification
• Digest authentication: Yes
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Security algorithms: 802.1x RADIUS/FIPS 140-2
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption: 260
• Power consumption (max): 12.4
• Power consumption (Power over Ethernet (PoE)): 12.5
• DC output voltage: 12
• DC output current: 1.03
• Operating temperature (T-T): -40 - 50
• Operating relative humidity (H-H): 10 - 100
• Height: 60.3
• Diameter: 154
• Weight: 870
• Height (with stand): 96.3
• Weight (with stand): 1300
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 1.6
