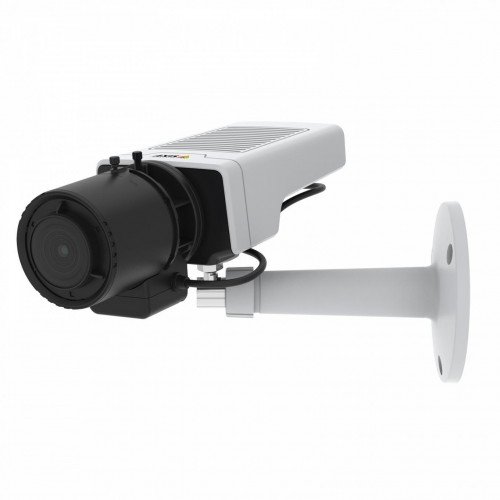

NET CAMERA M1137 MK II I-CS/5MP BOX 02581-001 AXIS

Technical Specifications

• Summary: Axis 02581-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm
• Vendor Homepage: https://www.axis.com/products/axis-m1137-mk-ii#support-and-resources
• Name: NET CAMERA M1137 MK II I-CS/5MP BOX 02581-001 AXIS
• Category Code: FNC
• Model: M1137 Mk
• Form factor: Box
• Mounting type: Wall
• Product colour: Black/White
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Minimum illumination: 0.17
• Lens viewing angle, horizontal: 112
• Lens viewing angle, vertical: 82
• Camera shutter speed: 1/33500 - 1/5
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Focal length range: 2.8 - 13
• Night vision: Yes
• Maximum resolution: 2592 x 1944
• Total megapixels: 5
• Video formats supported: H.264/H.265
• Video compression formats: MPEG4
• Supported graphics resolutions: 160 x 120
• Frame rate: 30
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Flash memory: 512
• Power source type: DC,PoE
• Power consumption (typical): 4.4
• Power consumption (max): 6.6
• Power consumption (Power over Ethernet (PoE)): 4.5
• DC output voltage: 10,12,15,16,24,28
• Operating temperature (T-T): -20 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 85
• Storage relative humidity (H-H): 5 - 95
• Width: 70
• Depth: 179
• Height: 59
• Width (with stand): 70
• Depth (with stand): 179
• Height (with stand): 179
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0027
• Unit Calculated Weight: 1
