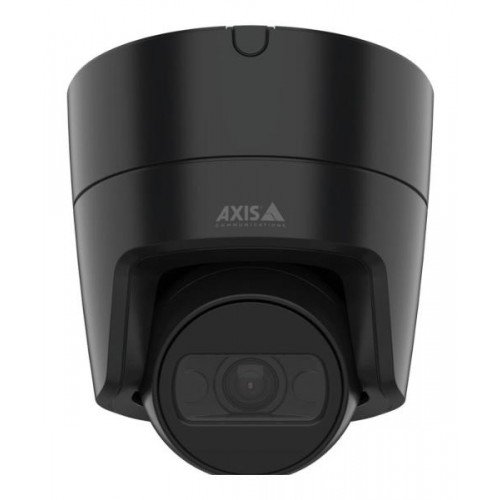

NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS

Technical Specifications

• Summary: Axis M3126-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 73°. Sensor type: CMOS, Optical sensor size: 50.8 / 7 mm (2 / 7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-m3126-lve#technical-specifications
• Name: NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS
• Category Code: FNC
• Model: 02919-001
• Form factor: Dome
• Mounting type: Wall
• Product colour: Black
• Housing material: Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK08
• Country of origin: Sweden
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Maximum operating distance: 47.4
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Built-in light: Yes
• Luminous flux: 0.19
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Angle of rotation: 95
• Lens viewing angle, horizontal: 130
• Lens viewing angle, vertical: 73
• Tilt angle range: 0 - 60
• Pan range: 0 - 180
• Camera pixel size: 2
• Camera shutter speed: 1/38500
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 1
• Optical sensor size: 2/7
• Sensor type: CMOS
• Number of lenses: 1
• Detect distance: 47.4
• Observe distance: 18.8
• Recognize distance: 9.5
• Focus: Manual
• Identify distance: 4.7
• Closest focusing distance: 0.5
• Fixed focal length: 2.4
• Night vision: Yes
• LED type: IR
• Number of illumination LEDs: 2
• Infra-red wavelength: 850
• Maximum resolution: 2688 x 1512
• Total megapixels: 4
• Video compression formats: AVC/H.264/H.265/HEVC/MPEG4
• Video recording: Yes
• Frame rate: 30
• Video intelligence analytic: Yes
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
• Text caption overlay: Yes
• Built-in speaker(s): Yes
• Audio system: 2-way
• Audio input channels: 2.0
• Audio output channels: 2.0
• Audio formats supported: AAC-LC/ADPCM/LPCM/OPUS/PCM
• Sample rate: 48
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1AE/IEEE 802.1x
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
• Wi-Fi: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• RAM capacity: 1024
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Password protection type: User
• Digest authentication: Yes
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Human detection/Line crossing detection/Moving object/Vehicle detection
• Mirror: Yes
• Motion sensor: Yes
• Motion sensor technology: Passive infrared (PIR) sensor
• Pixel counter: Yes
• Privacy protection: Yes
• Video motion detection: Yes
• Cloud-managed: Yes
• Management software: AXIS Object Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection, active tampering alarm
• Power source type: PoE
• Power consumption (typical): 4
• Power consumption (Power over Ethernet (PoE)): 10.5
• Operating temperature (T-T): -30 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 46
• Height: 93
• Diameter: 101
• Weight: 390
• Compliance certificates: BIS/BSMI/CE/cUL/EAC/Electromagnetic Compatibility (EMC)/KC/RCM/Trade Agreements Act (TAA)/UL/VCCI
• Number of cameras: 1
• Mounting kit: Yes
• Doesnt contain: PVC
• Warranty period: 5
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001587
• Unit Calculated Weight: 0.54
