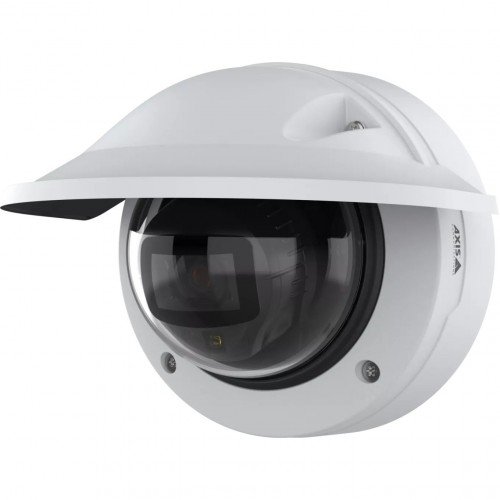

NET CAMERA P3275-LVE DOME 29MM/03151-001 AXIS

Technical Specifications

• Summary: Axis P3275-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 29°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-p3275-lve
• Name: NET CAMERA P3275-LVE DOME 29MM/03151-001 AXIS
• Category Code: FNC
• Model: P3275-LVE 29 mm
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: Black/White
• LED indicators: Yes
• Housing material: Plastic/Polycarbonate (PC)
• Protection features: Impact resistant/Vandal proof
• International Protection (IP) code: IP66
• IK code: IK10
• Weatherproof: Yes
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• People counting function: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.02
• Angle of rotation: 190
• Lens viewing angle, horizontal: 29
• Lens viewing angle, vertical: 16.4
• Tilt angle range: -50 - 80
• Pan range: -190 - 190
• Camera shutter speed: 1/37000 - 2
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Number of lenses: 1
• Lens diameter: 29
• Focal length range: 10.8 - 28.2
• Auto focus: Yes
• Maximum aperture number: 1.76
• Minimum aperture number: 1.7
• Closest focusing distance: 3
• Detect distance (tele): 394
• Detect distance (wide): 149
• Identify distance (tele): 39
• Identify distance (wide): 15
• Observe distance (tele): 157
• Observe distance (wide): 59
• Recognize distance (tele): 79
• Recognize distance (wide): 30
• Night vision: Yes
• Night vision distance: 45
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Supported graphics resolutions: 1280 x 800/1440 x 1080/1920 x 1080 (HD 1080)
• Frame rate: 60
• Video streaming: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8
• Internal memory: 2000
• Microphone in: Yes
• Terminal block port: Yes
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Line crossing detection/Moving object
• Privacy protection: Yes
• Security algorithms: 256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP
• Power source type: PoE
• Power consumption (typical): 3.4
• Power consumption (max): 10
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 183
• Depth: 156
• Height: 107
• Weight: 850
• Compliance certificates: CE/cUL/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: BFR/PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00646
• Unit Calculated Weight: 1.2
