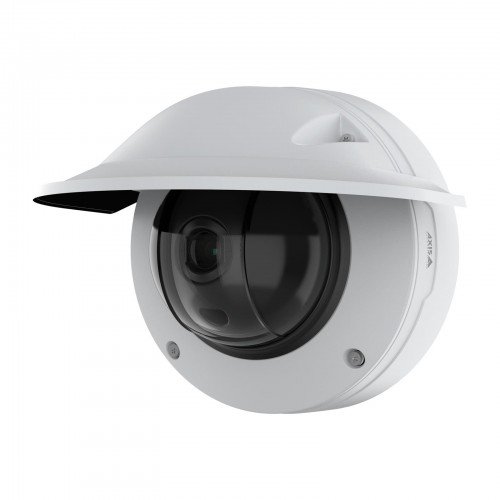

NET CAMERA Q3536-LVE DOME/02224-001 AXIS

NET CAMERA Q3536-LVE DOME/02224-001 AXIS
NET CAMERA Q3536-LVE DOME/02224-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
87,014ден.
  • Достапност:
  • Шифра: 371771
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
AXIS
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: Axis 02224-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.08 lx, Angle of rotation: 175°, Tilt angle range: -43 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.6x
  • Vendor Homepage: https://www.axis.com/products/axis-q3536-lve
  • Name: NET CAMERA Q3536-LVE DOME/02224-001 AXIS
  • Category Code: FNC
  • Model: 02224-001
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • International Protection (IP) code: IP66
  • IK code: IK10+
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.08
  • Angle of rotation: 175
  • Tilt angle range: -43 - 80
  • Camera shutter speed: 1/91000 - 1
  • Number of sensors: 1
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.6
  • Number of lenses: 1
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: H.264/H.265
  • Video recording: Yes
  • Frame rate: 60
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726/OPUS/PCM
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8194
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Security algorithms: 802.1x RADIUS
  • Power source type: PoE
  • Power consumption (typical): 9
  • Power consumption (max): 23
  • Operating temperature (T-T): -50 - 60
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Diameter: 184
  • Weight: 2100
  • Number of cameras: 1
  • Mounting kit: Yes
  • Mounting brackets included: Yes
  • Drilling template included: Yes
  • Manual: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.013608
  • Unit Calculated Weight: 2.6
