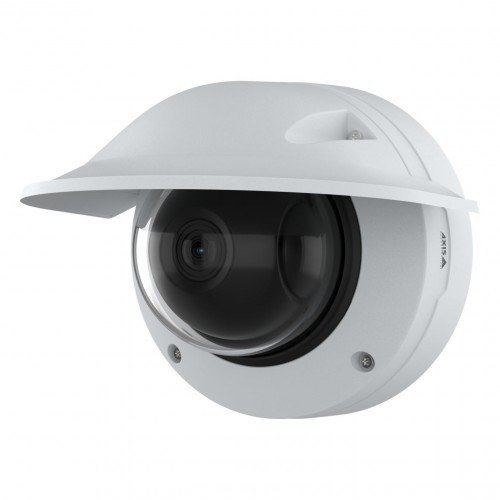

NET CAMERA Q3628-VE DOME/02617-001 AXIS

Technical Specifications

• Summary: Axis 02617-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.07 lx, Lens viewing angle, horizontal: 103 – 48, Lens viewing angle, vertical: 56.4 - 27.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-q3628-ve
• Name: NET CAMERA Q3628-VE DOME/02617-001 AXIS
• Category Code: FNC
• Model: Q3628-VE
• Form factor: Dome
• Mounting type: Wall/Pole
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Processor model: ARTPEC-8
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.07
• Lens viewing angle, horizontal: 103 - 48
• Lens viewing angle, vertical: 56.4 - 27.4
• Tilt angle range: -8 - 75
• Pan range: 0 - 190
• Camera shutter speed: 1/66500 - 2
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 1
• Optical sensor size: 1/1.2
• Progressive scan: Yes
• Sensor type: CMOS
• Focal length range: 6.2-12.9
• Maximum aperture number: 2.9
• Minimum aperture number: 1.6
• Night vision: Yes
• Maximum resolution: 3840 x 2160
• Total megapixels: 8
• Video compression formats: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 800/160 x 120/160 x 90/2880 x 2160/3840 x 2160
• Frame rate: 30
• Video streaming: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS
• Sample rate: 48
• Voice codecs: AGC
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
• Flash memory: 8192
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Password protection: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption (typical): 8
• Power consumption (max): 25
• DC output voltage: 10,28
• Compliance certificates: CE/KC/REACH/RoHS/UKCA
• Sustainability compliance: Yes
• Number of cameras: 1
• Mounting brackets included: Yes
• Screws included: Yes
• Manual: Yes
• Doesnt contain: BFR/PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01185
• Unit Calculated Weight: 2.82
