02543-001

Technical Specifications

• Summary: Axis 02543-001. Video input channels: 150 channels, Internal memory: 32768 MB, Operating system installed: Windows 10 IoT Enterprise. HDD capacity: 16 TB, Maximum storage capacity: 192 TB, RAID levels: 0, 1, 5, 6, 10. Ethernet LAN data rates: 1000,10000 Mbit/s. Rack capacity: 2U, Product colour: Silver, Certification: EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 2 and 15 Class A, ISED.... AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power supply: 1600 W
• Vendor Homepage: https://www.axis.com/products/axis-s1296-rack

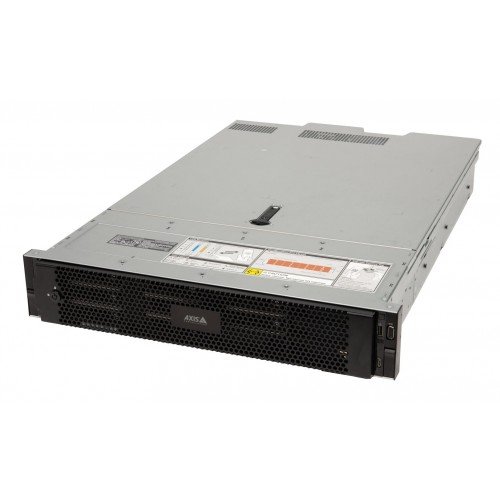

• Name: NET CAMERA STATION S1296/RACKED 192TB 02543-001 AXIS
• Category Code: NVR
• Model: S1296 Rack 192 TB
• Model name: 02543-001
• Video input channels: 150
• Internal memory: 32768
• Operating system installed: Windows 10 IoT Enterprise
• Maximum frame rate: 30
• Number of HDDs installed: 12
• HDD capacity: 16000
• Maximum storage capacity: 192
• RAID support: Yes
• RAID levels: 0/1/10/5/6
• Ethernet LAN (RJ-45) ports: 4
• Ethernet LAN data rates: 1000/10000
• USB 2.0 ports quantity: 2
• VGA (D-Sub) output ports: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Rack mounting: Yes
• Rack capacity: 2U
• Product colour: Silver
• Certification: EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 2 and 15 Class A, ISED ICES-003 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, VCCI 32-1 Class A, BSMI
• Built-in processor: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power supply: 1600
• Operating temperature (T-T): 10 - 35
• Operating relative humidity (H-H): 20 - 80
• Storage temperature (T-T): -40 - 65
• Width: 482
• Depth: 721.62
• Height: 87
• Weight: 25600
• AC adapter included: Yes
• Unit Calculated Volume: 0.2237
• Unit Calculated Weight: 27
