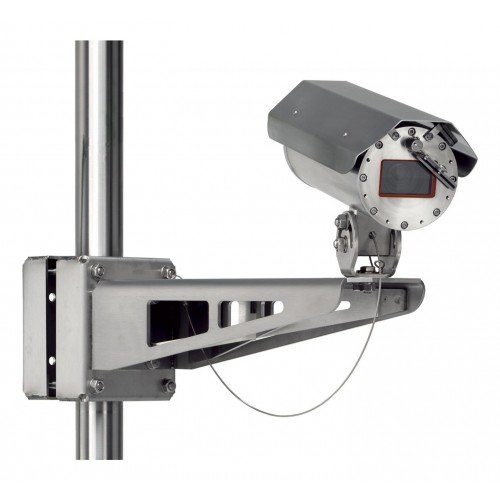

NET CAMERA XF Q1785 2MP BOX/EXCAM 01572-001 AXIS

Technical Specifications

• Summary: Axis 01572-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: Stainless steel, Form factor: Box. Minimum illumination: 0.03 lx, Camera shutter speed: 1/66500 - 1 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137 mm
• Vendor Homepage: https://www.axis.com/de-ch/products/excam-xf-q1785/
• Name: NET CAMERA XF Q1785 2MP BOX/EXCAM 01572-001 AXIS
• Category Code: FNC
• Model: ExCam XF Q1785
• Form factor: Box
• Mounting type: Pole clamp
• Product colour: Stainless steel
• Housing material: Stainless steel
• Protection features: Corrosion resistant/Explosion proof
• International Protection (IP) code: IP68
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Languages support: English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 11
• Plug and Play: Yes
• Certification: 55032 Class A, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 62479, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC/EN 60529 IP68, DIN EN/IEC 60079-0, DIN EN/IEC 60079-1, DIN EN/IEC 60079-7, DIN EN/IEC
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.03
• Camera shutter speed: 1/66500 - 1
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Number of lenses: 1
• Focal length range: 4.3 - 137
• Auto focus: Yes
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: AVC/H.264/M-JPEG/MPEG4
• Supported graphics resolutions: 160 x 90/1920 x 1080 (HD 1080)
• Supported video modes: 1080p
• Frame rate: 60
• Video streaming: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD
• Flash memory: 512
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• IP address filtering: Yes
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption (typical): 7.7
• Power consumption (max): 40
• Power consumption (Power over Ethernet (PoE)): 12.95
• Operating temperature (T-T): -60 - 60
• Storage temperature (T-T): -40 - 65
• Width: 171
• Depth: 396
• Height: 396
• Weight: 11100
• Number of cameras: 1
• Memory card included: MicroSDXC
• Included memory card size: 128
• Sun shield included: Yes
• Manual: Yes
• Harmonized System (HS) code: 85258900
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07356
• Unit Calculated Weight: 16
