GES-2118P

Technical Specifications

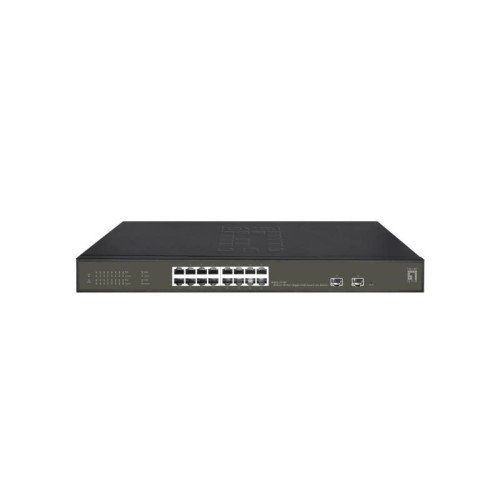

• Summary: LevelOne Hilbert 18-Port Gigabit PoE Smart Lite Switch, 16 PoE Outputs, 2 x Gigabit SFP, 802.3at/af PoE, 230W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting
• Vendor Homepage: https://www.level1.com/level1_en/ges-2118p-hilbert-18-port-gigabit-poe-smart-lite-switch-16-poe-outputs-2-x-gigabit-sfp-802-3at-af-poe-230w-poe-power-budget-52091003101
• Name: NET SWITCH 18PORT 16POE 1000M/GES-2118P LEVELONE
• Category Code: SWI
• Model: GES-2118P
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• SFP module slots quantity: 2
• Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• MAC address auto-aging supported: Yes
• MAC address auto-learning supported: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Tagged VLAN
• Number of VLANs: 32
• Switching capacity: 36
• MAC address table: 8000
• Number of queues: 4
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 4.1
• IGMP snooping: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Product colour: Black
• LED indicators: Activity/Link/PoE/Power/System
• Flash memory: 2
• Noise level: 30
• Mean time between failures (MTBF): 43800
• Power source: AC/PoE
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 250
• Surge protection: Yes
• Surge protection voltage: 8
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 16
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 230
• Operating temperature (T-T): 0 - 45
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 81.89
• Width: 440
• Depth: 190
• Height: 44.5
• Weight: 2400
• Cables included: AC
• Quick start guide: Yes
• Rack mount kit: Yes
• Package type: Box
• Package width: 503
• Package depth: 270
• Package height: 85
• Package weight: 3000
• Sustainability compliance: Yes
• Compliance certificates: CE/RoHS
• Master (outer) cases per pallet (air): 20
• Pallet gross length: 800
• Pallet gross width: 1200
• Pallet height (air): 1594
• Master (outer) case net weight: 750
• Country of origin: China
• Master (outer) case width: 515
• Master (outer) case length: 360
• Master (outer) case height: 290
• Master (outer) case gross weight: 12750
• Products per master (outer) case: 4
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01215
• Unit Calculated Weight: 2.8
