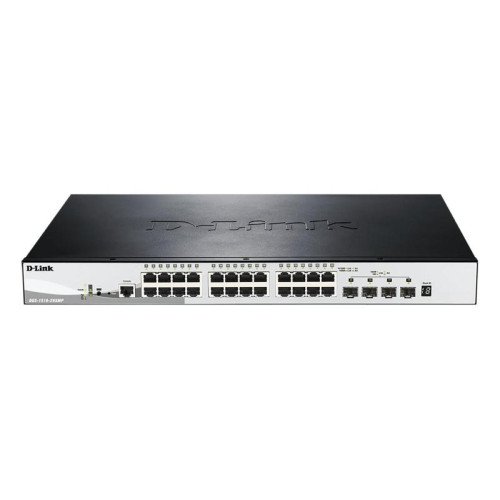

NET SWITCH 24PORT 10/100/1000/POE DGS-1510-28XMP D-LINK

Technical Specifications

• Summary: D-Link 28-Port Gigabit Stackable POE Smart Managed Switch including 4 x 10G SFP+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16384 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
• Vendor Homepage: https://www.dlink.com/uk/en/business-solutions/switching/smart-switches/dgs-1510-series-gigabit-stackable-smart-managed-switches#
• Name: NET SWITCH 24PORT 10/100/1000/POE DGS-1510-28XMP D-LINK
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2/L3
• Quality of Service (QoS) support: Yes
• Traffic classification: Yes
• System event log: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity: 4
• Fiber optic connector: SFP+
• Networking standards: IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3x
• 10G support: Yes
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Cable types supported: Cat5/Cat5e
• Port mirroring: Yes
• Full duplex: Yes
• Auto MDI/MDI-X: Yes
• Auto-negotiation: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Head-of-line (HOL) blocking: Yes
• Link aggregation: Yes
• MAC address auto-learning supported: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Protocol-based VLAN/Tagged VLAN
• Number of VLANs: 4094
• Switching capacity: 128
• Throughput: 95.24
• MAC address table: 16384
• Store-and-forward: Yes
• Number of queues: 8
• Jumbo frames support: Yes
• Jumbo frames: 9216
• Packet buffer memory: 1.5
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• Access Control List (ACL) rules: 768
• IGMP snooping: Yes
• Authentication: MAC-based authentication,Port-based authentication
• BPDU filtering/protection: Yes
• Security algorithms: 802.1x RADIUS/EAP/SNMP/SSH/SSH-2/SSL/TLS
• SSH/SSL support: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Stackable: Yes
• Product colour: Black/Grey
• LED indicators: Activity/Link/PoE/Power/Speed
• Number of fans: 2
• Safety: cUL, CB
• Physical stacking (units): 6
• Virtual stacking (units): 32
• Noise level: 56.9
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 436.3
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) ports quantity: 24
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 370
• Operating temperature (T-T): -5 - 50
• Storage temperature (T-T): -20 - 70
• Operating relative humidity (H-H): 0 - 95
• Storage relative humidity (H-H): 0 - 95
• Heat dissipation: 1487.78
• Width: 440
• Depth: 308
• Height: 44
• Weight: 4250
• Package width: 450
• Package depth: 510
• Package height: 121
• Package weight: 7060
• Master (outer) cases per pallet (air): 24
• Master (outer) cases per pallet (sea): 24
• Pallet gross length: 1100
• Pallet gross weight (air): 561620
• Pallet gross weight (sea): 561620
• Pallet gross width: 1200
• Pallet height (air): 2075
• Pallet height (sea): 2075
• Products per pallet (air): 72
• Products per pallet (sea): 72
• Products per shipping (inner) case: 3
• Shipping (inner) case gross weight: 22630
• Shipping (inner) case height: 485
• Shipping (inner) case length: 530
• Shipping (inner) case net weight: 14350
• Shipping (inner) case width: 385
• Certification: CE, FCC, C-Tick, VCCI, BSMI, CCC
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02754
• Unit Calculated Weight: 6.22
