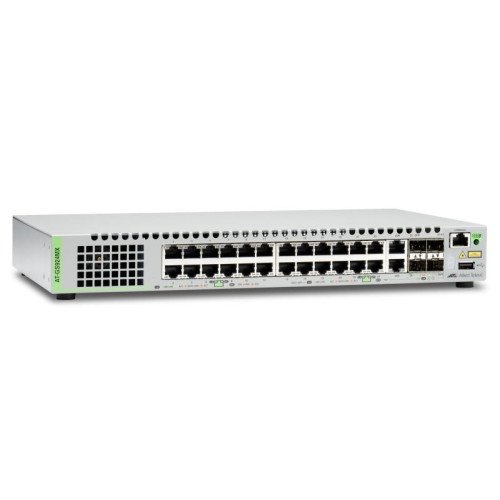

NET SWITCH 24PORT 10/100/1000T/2SFP AT-GS924MX-50 ALLIED

Technical Specifications

• Summary: Allied Telesis AT-GS924MX-50. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Rack mounting
• Vendor Homepage: https://www.alliedtelesis.com/products/gs924mx
• Name: NET SWITCH 24PORT 10/100/1000T/2SFP AT-GS924MX-50 ALLIED
• Category Code: SWI
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Traffic classification: Yes
• System event log: Yes
• MIB support: SNMP
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 2
• SFP+ module slots quantity: 2
• Networking standards: IEEE 802/IEEE 802.1ab/IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.1x/IEEE 802.2/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
• 10G support: Yes
• Port mirroring: Yes
• Full duplex: Yes
• IP routing: Yes
• Flow control support: Yes
• Link aggregation: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN
• Switching capacity: 92
• MAC address table: 16000
• Number of queues: 8
• Jumbo frames support: Yes
• DHCP features: DHCP client/DHCP server
• Access Control List (ACL): Yes
• IGMP snooping: Yes
• Authentication: Web-based authentication,MAC-based authentication
• BPDU filtering/protection: Yes
• Loop protection: Yes
• Security algorithms: 802.1x RADIUS/EAP
• SSH/SSL support: Yes
• Multicast support: Yes
• Management protocols: AMF MIB, SNMP, LLDP, TCP/IP, SMIv2
• Rack mounting: Yes
• Stackable: Yes
• Product colour: Grey
• LED indicators: Yes
• Safety: FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A, RCM, CE, EN60950-1 (TUV), UL 60950-1(cULus), EN60825-1
• Physical stacking (units): 4
• Memory type: DDR-SDRAM
• Internal memory: 512
• Flash memory: 64
• Noise level: 52.7
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 30.7
• Power plug type: Type C
• Operating temperature (T-T): 0 - 50
• Storage temperature (T-T): -25 - 70
• Operating relative humidity (H-H): 5 - 90
• Storage relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 2000
• Non-operating altitude: 0 - 4000
• Heat dissipation: 104.6
• Width: 339
• Depth: 211
• Height: 44
• Weight: 2500
• Cables included: AC
• Certification: CE, cULus, TUV, RCM
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.015
• Unit Calculated Weight: 3
