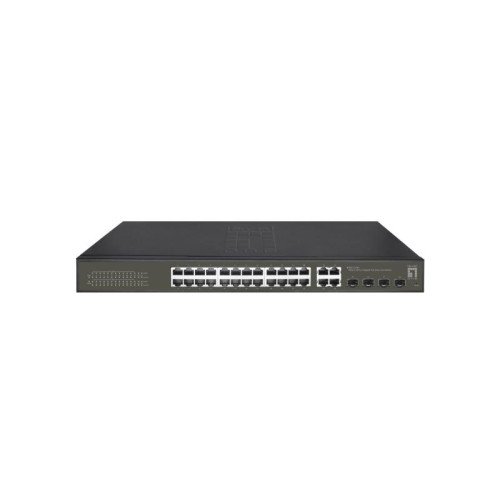

NET SWITCH 28PORT 24POE 1000M/GES-2128P LEVELONE

Technical Specifications

• Summary: LevelOne Hilbert 28-Port Gigabit PoE Smart Lite Switch, 24 PoE Outputs, 4 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 380W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting
• Vendor Homepage: https://www.level1.com/level1_en/ges-2128p-hilbert-28-port-gigabit-poe-smart-lite-switch-24-poe-outputs-4-x-gigabit-sfp-rj45-combo-802-3at-af-poe-380w-poe-power-budget-52091103101
• Name: NET SWITCH 28PORT 24POE 1000M/GES-2128P LEVELONE
• Category Code: SWI
• Model name: GES-2128P
• Switch type: Managed
• Switch layer: L2
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 24
• Combo SFP ports quantity: 4
• Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Broadcast storm control: Yes
• Flow control support: Yes
• Link aggregation: Yes
• MAC address auto-aging supported: Yes
• MAC address auto-learning supported: Yes
• Rate limiting: Yes
• VLAN support: Yes
• Virtual LAN features: Tagged VLAN
• Number of VLANs: 32
• Switching capacity: 56
• MAC address table: 8000
• Number of queues: 4
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 4.1
• IGMP snooping: Yes
• Multicast support: Yes
• Rack mounting: Yes
• Product colour: Black
• LED indicators: Activity/Link/PoE/Power/System
• Flash memory: 2
• Noise level: 30
• Mean time between failures (MTBF): 43800
• Power source: AC/PoE
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Power consumption (max): 400
• Surge protection: Yes
• Surge protection voltage: 8
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 24
• Power over Ethernet (PoE) power per port: 30
• Total Power over Ethernet (PoE) budget: 380
• Operating temperature (T-T): 0 - 45
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 90
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 88.71
• Width: 440
• Depth: 290
• Height: 44.5
• Weight: 3400
• Cables included: AC
• Quick start guide: Yes
• Rack mount kit: Yes
• Package type: Box
• Package width: 515
• Package depth: 380
• Package height: 93
• Package weight: 4100
• Compliance certificates: CE/RoHS
• Master (outer) cases per pallet (air): 16
• Pallet gross length: 800
• Pallet gross width: 1200
• Pallet height (air): 1744
• Certification: UKCA, FCC Class A
• Master (outer) case net weight: 750
• Country of origin: China
• Master (outer) case width: 540
• Master (outer) case length: 320
• Master (outer) case height: 400
• Master (outer) case gross weight: 13100
• Products per master (outer) case: 3
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01778
• Unit Calculated Weight: 4
