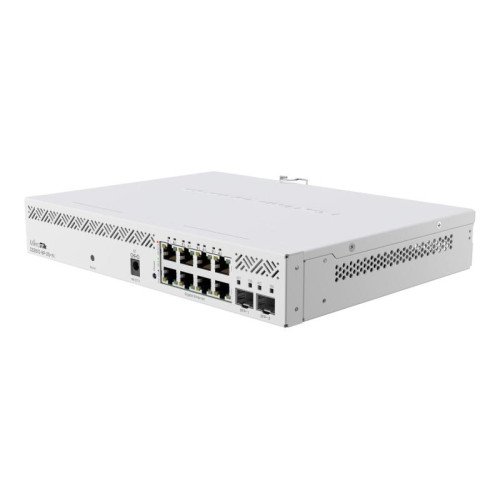

CSS610-8P-2S+IN

Technical Specifications

• Summary: Mikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting
• Vendor Homepage: https://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads
• Name: NET SWITCH 8PORT 1000M 2SFP+/CSS610-8P-2S+IN MIKROTIK
• Category Code: SWI
• Model: CSS610-8P-2S+IN
• Switch type: Managed
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Installed SFP+ modules quantity: 2
• Networking standards: IEEE 802.3af/IEEE 802.3at
• 10G support: Yes
• Broadcast storm control: Yes
• VLAN support: Yes
• Switching capacity: 56
• MAC address filtering: Yes
• Rack mounting: Yes
• Product colour: White
• Reset button: Yes
• LED indicators: Yes
• International Protection (IP) code: IP20
• Operating system installed: SwitchOS Lite
• Processor model: Marvell 88E6193X
• Flash memory: 0.064
• Fanless: Yes
• Mean time between failures (MTBF): 200000
• Power source: AC/DC
• Power supply included: Yes
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• DC input voltage: 48 - 57
• Input current: 2.2
• Power consumption (max): 162
• Power over Ethernet (PoE): Yes
• Power over Ethernet (PoE) type supported: Passive PoE
• Power over Ethernet (PoE) ports quantity: 8
• Total Power over Ethernet (PoE) budget: 140
• Storage temperature (T-T): -40 - 70
• Width: 272
• Depth: 216
• Height: 50
• Cables included: AC
• Rack mount kit: Yes
• Sustainability compliance: Yes
• Compliance certificates: CE/RoHS
• Certification: EAC
• Units per Pallet: 0
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.00741
• Unit Calculated Weight: 2.2
