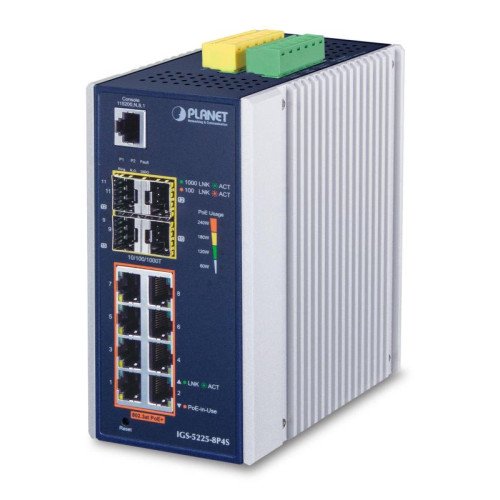

NET SWITCH 8PORT 1000M/IGS-5225-8P4S PLANET

Technical Specifications

• Summary: PLANET IGS-5225-8P4S. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
• Vendor Homepage: https://www.planet.com.tw/en/product/igs-5225-8p4s-v3
• Name: NET SWITCH 8PORT 1000M/IGS-5225-8P4S PLANET
• Category Code: SWI
• Model name: IGS-5225-8P4S
• Switch type: Managed
• Switch layer: L2+
• Quality of Service (QoS) support: Yes
• Web-based management: Yes
• ARP inspection: Yes
• Basic switching RJ-45 Ethernet ports quantity: 8
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• SFP module slots quantity: 4
• Fiber optic connector: SFP
• Console port: RJ-45
• Networking standards: IEEE 1588v2/IEEE 802.1ab/IEEE 802.1ad/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
• Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
• Port mirroring: Yes
• Full duplex: Yes
• Half duplex: Yes
• IP routing: Yes
• Auto MDI/MDI-X: Yes
• Flow control support: Yes
• Link aggregation: Yes
• MAC address auto-aging supported: Yes
• MAC address auto-learning supported: Yes
• Spanning tree protocol: Yes
• VLAN support: Yes
• Virtual LAN features: MAC address-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN
• Number of VLANs: 4094
• Fiber ethernet cabling technology: 100BASE-FX
• Switching capacity: 24
• Throughput: 17.85
• MAC address table: 8000
• Number of queues: 8
• Static route: Yes
• Number of static routes: 32
• Jumbo frames support: Yes
• Jumbo frames: 9000
• Packet buffer memory: 4
• DHCP features: DHCP relay/DHCP snooping
• Access Control List (ACL): Yes
• Access Control List (ACL) rules: 123
• IGMP snooping: Yes
• Authentication: MAC-based authentication
• Authentication type: IEEE 802.1x,RADIUS
• IP-MAC-Port binding: Yes
• Loop protection: Yes
• Security algorithms: SNMP/SNMPv3/SSH/SSL/TLS
• SSH/SSL support: Yes
• Multicast support: Yes
• Product colour: Blue/Silver
• Reset button: Yes
• LED indicators: LAN/PoE/Power
• DIN rail mounting: Yes
• International Protection (IP) code: IP30
• Wall mountable: Yes
• DC input voltage: 48 - 56
• Power consumption (max): 255.9
• Surge protection: Yes
• Surge protection voltage: 5
• Power over Ethernet (PoE): Yes
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) power per port: 36
• Total Power over Ethernet (PoE) budget: 240
• Operating temperature (T-T): -40 - 75
• Storage temperature (T-T): -40 - 85
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Heat dissipation: 872.62
• Width: 76.8
• Depth: 107.33
• Height: 152
• Weight: 1093
• Certification: FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.005154
• Unit Calculated Weight: 1.5
