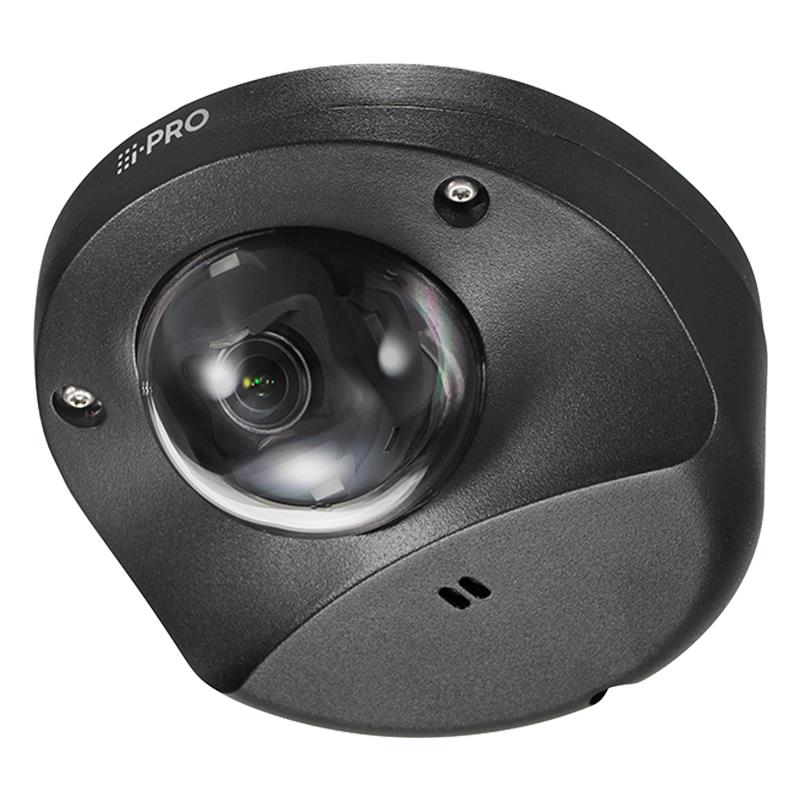

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S32302-F2L1 I-PRO

Technical Specifications

• Summary: i-PRO WV-S32302-F2L1. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 270°, Vertical field of view (optical module): 74°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). White balance (panoramic camera): ATW, AWC
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s32302-f2l1
• Name: NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-S32302-F2L1 I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Infrared (IR) cut-off filter: Yes
• Dynamic range: 144
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.03
• Angle of rotation: 270
• Vertical field of view (optical module): 74
• Horizontal field of view (optical module): 132
• Tilt angle range: 0 - 90
• Pan range: -45 - 45
• White balance: ATW/AWC
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• White balance (panoramic camera): ATW/AWC
• Zoom capability: Yes
• Optical zoom: 3
• Detect distance: 17.1
• Observe distance: 6.8
• Recognize distance: 3.4
• Focal length range: 2.4
• Identify distance: 1.7
• Normal focusing range: 0.5
• Night vision: Yes
• Night vision distance: 20
• Maximum resolution: 2688 x 1520
• Total megapixels: 16
• Video compression formats: H.264/H.265
• Video intelligence analytic: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Voice codecs: AGC
• Audio detection: Yes
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
• Ethernet LAN (RJ-45) ports: 1
• Intelligent Video Surveillance (IVS) system features: Scene change
• Video motion detection: Yes
• Power source type: DC,PoE
• Operating temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 10 - 100
• Width: 300
• Depth: 90
• Weight: 3300
• Compliance certificates: National Defense Authorization Act (NDAA)
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.8
