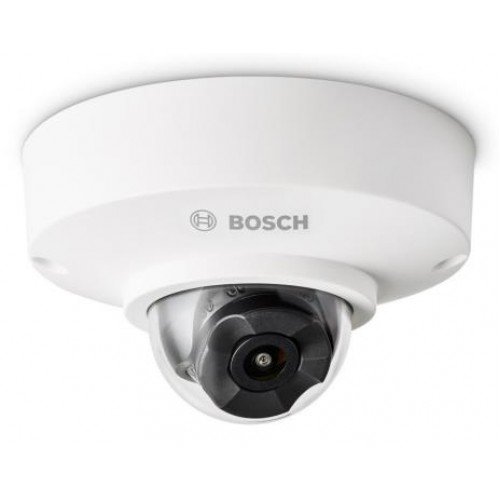

NET CAMERA 2MP DOME/NUV-3702-F04H BOSCH

Technical Specifications

• Summary: Bosch NUV-3702-F04H. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 106°, Lens viewing angle, vertical: 56°, Tilt angle range: 0 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Maximum resolution: 1920 x 1080 pixels, Total megapixels: 2 MP, Video compression formats: H.264, M-JPEG, H.265, HEVC
• Vendor Homepage: https://www.bosch-professional.com/
• Name: NET CAMERA 2MP DOME/NUV-3702-F04H BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Polycarbonate (PC)
• Protection features: Scratch resistant
• IK code: IK08
• Country of origin: Thailand
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Day/night mode: Yes
• Dynamic range: 120
• Certification: CE, FCC, UL, WEEE, RCM, VCCI, UKCA, BIS, KCC, SASO, CMIM
• Lens viewing angle, horizontal: 106
• Lens viewing angle, vertical: 56
• Tilt angle range: 0 - 75
• Pan range: 0 - 355
• Number of Privacy masking areas: 8
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 1920 x 1080
• Sensor type: CMOS
• Number of lenses: 1
• Night vision: Yes
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1920 x 1080 (HD 1080)/512 x 288
• Frame rate: 30
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Maximum memory card size: 2000
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Power source type: PoE
• Power consumption (Power over Ethernet (PoE)): 4.5
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -30 - 70
• Operating relative humidity (H-H): 5 - 93
• Storage relative humidity (H-H): 5 - 95
• Height: 66
• Diameter: 110
• Weight: 230
• Number of cameras: 1
• Doesnt contain: PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002016
• Unit Calculated Weight: 0.4
