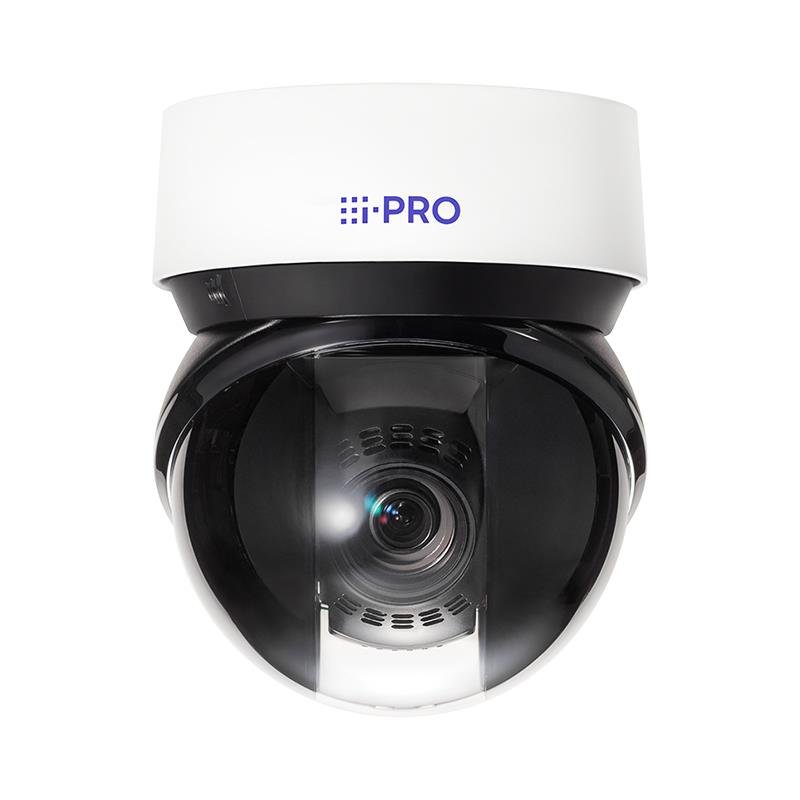

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-S66300-Z4L I-PRO

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-S66300-Z4L I-PRO
NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-S66300-Z4L I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
203,931ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454035
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S66300-Z4L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Spherical. Tilt angle range: -20 - 90°, Tilt preset speed: 500 °/sec, Tilt manual speed: 0.065 - 150 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Focal length range: 4.25 - 170 mm, Detect distance (wide): 60.3 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66300-z4l
  • Name: NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-S66300-Z4L I-PRO
  • Category Code: FNC
  • Form factor: Spherical
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Dynamic range: 144
  • Minimum illumination: 0
  • Tilt angle range: -20 - 90
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 500
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 700
  • White balance: ATW/AWC
  • Camera shutter speed: 1/60 - 1/10000
  • Number of Privacy masking areas: 32
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Focal length range: 4.25 - 170
  • Detect distance (tele): 2199.9
  • Detect distance (wide): 60.3
  • Identify distance (tele): 220
  • Identify distance (wide): 6
  • Observe distance (tele): 880
  • Observe distance (wide): 24.1
  • Recognize distance (tele): 440
  • Recognize distance (wide): 12.1
  • Night vision: Yes
  • Night vision distance: 350
  • LED type: IR
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption (Power over Ethernet (PoE)): 45.9
  • Operating temperature (T-T): -50 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 205
  • Diameter: 167
  • Weight: 3000
  • Compliance certificates: CE/Federal Communications Commission (FCC)
  • Number of cameras: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 3.4
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Back Light Compensation (BLC)Yes
Camera shutter speed1/60 - 1/10000
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesCE/Federal Communications Commission (FCC)
Connectivity technologyWired
Detect distance (tele)2199.9
Detect distance (wide)60.3
Diameter167
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.25 - 170
Form factorSpherical
Height205
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)220
Identify distance (wide)6
IK codeIK10
Image stabilizerYes
International Protection (IP) codeIP66
LED typeIR
Maximum memory card size512
Maximum resolution2048 x 1536
Minimum illumination0
Mounting typeCeiling
Night visionYes
Night vision distance350
Number of cameras1
Number of Privacy masking areas32
Number of users14
Observe distance (tele)880
Observe distance (wide)24.1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/2.8
Optical zoom40
Pan manual speed0.065 - 150
Pan preset speed700
Pan range0 - 360
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))45.9
Power source typePoE
Product colourWhite
PTZ controlYes
Recognize distance (tele)440
Recognize distance (wide)12.1
Sensor typeCMOS
Summaryi-PRO WV-S66300-Z4L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Spherical. Tilt angle range: -20 - 90°, Tilt preset speed: 500 °/sec, Tilt manual speed: 0.065 - 150 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Focal length range: 4.25 - 170 mm, Detect distance (wide): 60.3 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
Tilt angle range-20 - 90
Tilt manual speed0.065 - 150
Tilt preset speed500
Total megapixels2
TypeIP security camera
Web browserYes
Weight3000
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

  • 2MP 40x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 2 Edge AI analytic apps
  • AI auto tracking
  • Built-in IR-LED (250m/820ft)
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-S66300-Z4L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/19bf8aa4-e6bc-4042-8905-27c8f66dfe62.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/19bf8aa4-e6bc-4042-8905-27c8f66dfe62.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight3.4
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66300-z4l
