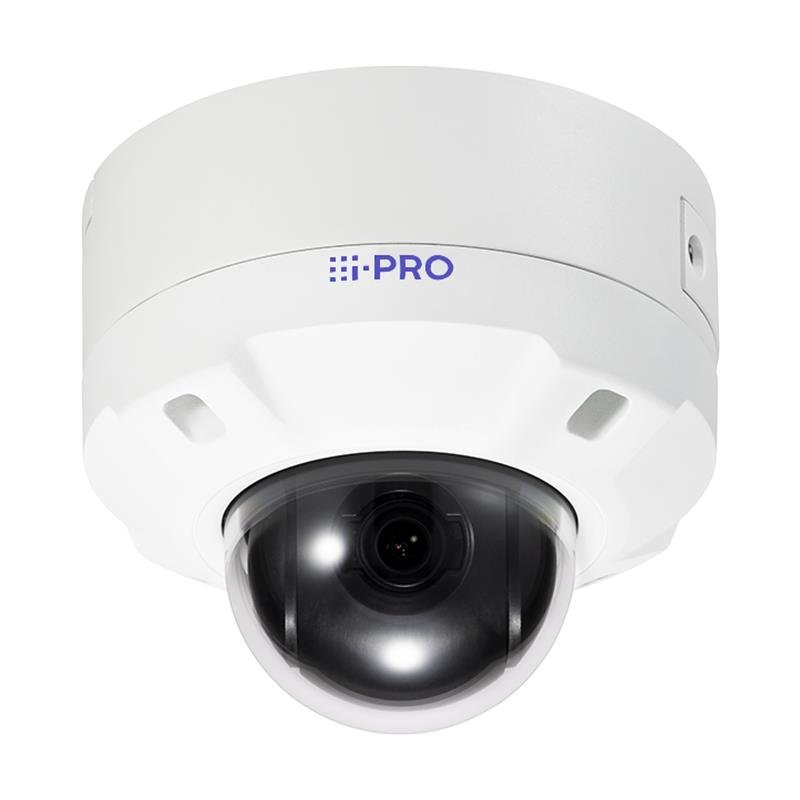

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO

NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO
NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
59,057ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443676
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO U series PTZ camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0003 lx, Lens viewing angle, horizontal: 113°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Digital zoom: 49.6x, Focal length range: 2.9 - 9 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u65300-zy
  • Name: NET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO
  • Category Code: FNC
  • Model: WV-U65300-ZY
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Dust resistant/Water resistant/Wind resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset sequence
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.0003
  • Lens viewing angle, horizontal: 113
  • Lens viewing angle, vertical: 60
  • Tilt angle range: 0 - 90
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 150
  • Pan range: 0 - 350
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/4000 - 16/30
  • Number of Privacy masking areas: 32
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 3.1
  • Digital zoom: 49.6
  • Focal length range: 2.9 - 9
  • Auto focus: Yes
  • Maximum aperture number: 1.3
  • Detect distance (tele): 118.2
  • Detect distance (wide): 25.4
  • Identify distance (tele): 11.8
  • Identify distance (wide): 2.5
  • Normal focusing range: 0.3
  • Observe distance (tele): 47.3
  • Observe distance (wide): 10.2
  • Recognize distance (tele): 23.6
  • Recognize distance (wide): 5.1
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Supported video modes: 1080p
  • Video recording: Yes
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Brightness
  • Audio formats supported: AAC-LC/ADPCM/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, NMPv1/v2/v3, UPnP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Fiber optic connector: RJ-45
  • Alarm input channels: 3
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Scene change
  • Security algorithms: FIPS 140-2/HTTPS
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 890
  • Power consumption (typical): 10.7
  • Power consumption (Power over Ethernet (PoE)): 12
  • DC output voltage: 12
  • Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 10 - 95
  • Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
  • Height: 134
  • Diameter: 155
  • Weight: 1600
  • Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
  • Number of cameras: 1
  • Audio input: 3.5mm
  • Audio output: 3.5mm
  • Browser supported: Microsoft Edge, Firefox, Google Chrome
  • Data transfer rate: 100
  • Number of simultaneous users: 14
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 2
Specifications
Alarm input channels3
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/ADPCM/G.711/G.726
Audio input3.5mm
Audio output3.5mm
Auto focusYes
Auto pan modeYes
Auto patrol modeYes
Back Light Compensation (BLC)Yes
Browser supportedMicrosoft Edge, Firefox, Google Chrome
Camera pan controlYes
Camera shutter speed1/4000 - 16/30
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatescUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL
Connectivity technologyWired
DC output voltage12
Detect distance (tele)118.2
Detect distance (wide)25.4
Diameter155
Digital zoom49.6
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Fiber optic connectorRJ-45
Focal length range2.9 - 9
Fog proofYes
Form factorDome
Height134
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)11.8
Identify distance (wide)2.5
IK codeIK10
Image quality adjustmentBrightness
Intelligent Video Surveillance (IVS) system featuresScene change
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
Lens viewing angle, horizontal113
Lens viewing angle, vertical60
Maximum aperture number1.3
Maximum memory card size512
Maximum resolution2048 x 1536
Minimum illumination0.0003
Mobile operating systems supportedAndroid/iOS/iOS 8.0/iPadOS
Mounting typeCeiling
Networking standardsIEEE 802.1x
Noise reductionYes
Normal focusing range0.3
Number of cameras1
Number of Privacy masking areas32
Number of simultaneous users14
Observe distance (tele)47.3
Observe distance (wide)10.2
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.8
Optical zoom3.1
Pan manual speed0.065 - 150
Pan preset speed150
Pan range0 - 350
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))12
Power consumption (typical)10.7
Power source typeDC,PoE
Preset pointsYes
Product colourWhite
Protection featuresDust resistant/Water resistant/Wind resistant
PTZ controlYes
PTZ modesPreset sequence
Recognize distance (tele)23.6
Recognize distance (wide)5.1
Security algorithmsFIPS 140-2/HTTPS
Sensor typeCMOS
Storage relative humidity (H-H)10 - 95
Storage temperature (T-T)-30 - 60
Summaryi-PRO U series PTZ camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0003 lx, Lens viewing angle, horizontal: 113°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.1x, Digital zoom: 49.6x, Focal length range: 2.9 - 9 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, NMPv1/v2/v3, UPnP
Supported video modes1080p
Tilt angle range0 - 90
Tilt manual speed0.065 - 150
Tilt preset speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
Web browserYes
Weight1600
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Data transfer rate100
Description

U-Series launch gives customers PTZ’s that meet top security certifications (FIPS 140-2 level 3) while also providing a unique blend of imaging performance, reliability and affordability.

Highly durable pan-tilt drive unit Reduced maintenance costs
PAN,TILT drive endurance (1 million cycles) to reduce maintenance frequency.

Easy installation
Both pigtail or gromet are available to be flexibly to adapt to the installation environment.
Easy Kitting will also save your time for installation.

High security standard
Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign®), FIPS 140-2 level3-certified hardware is installed.

  • 2MP (1080p) 1920x1080
  • 3.1x optical zoom
  • Intelligent Auto
  • Super Dynamic 144dB
  • Color night vision (0.001 to 0.01 lx)
  • Durable Pan/Tilt gear mechanism
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified Secure Element
  • (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

ModelWV-U65300-ZY
NameNET CAMERA 2MP PTZ DOME OUTD./VANDAL WV-U65300-ZY I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/afd057df-54d3-4eb2-a766-9a0db2cd90ed.Jpeg
Power consumption890
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/afd057df-54d3-4eb2-a766-9a0db2cd90ed.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight2
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u65300-zy
