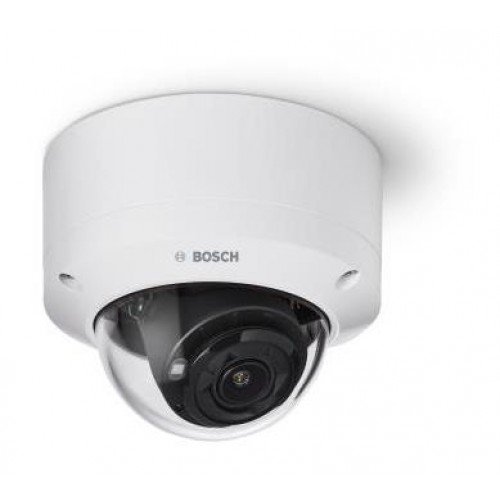

NET CAMERA 5MP IR DOME/NDV-5703-AL BOSCH

NET CAMERA 5MP IR DOME/NDV-5703-AL BOSCH
NET CAMERA 5MP IR DOME/NDV-5703-AL BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
66,827ден.
  • Достапност:
  • Шифра: 415381
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
BOSCH
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: Bosch NDV-5703-AL. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2688 x 1944 pixels. Lens diameter: 1.05 cm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 5MP IR DOME/NDV-5703-AL BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP54
  • IK code: IK10
  • Country of origin: Thailand
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Certification: CE, FCC, UL, WEEE, RCM, VCCI, UKCA, China RoHS, BIS
  • Camera shutter type: Electronic
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.7
  • Number of effective pixels (H x V): 2688 x 1944
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Lens diameter: 10.5
  • Night vision: Yes
  • Night vision distance: 45
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Frame rate: 30
  • Signal-to-Noise Ratio (SNR): 50
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Maximum memory card size: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • USB port: Yes
  • Mirror: Yes
  • Power source type: DC,PoE
  • Power consumption (Power over Ethernet (PoE)): 7.5
  • Operating temperature (T-T): -20 - 50
  • Storage temperature (T-T): -30 - 70
  • Operating relative humidity (H-H): 5 - 93
  • Storage relative humidity (H-H): 0 - 98
  • Height: 122
  • Diameter: 148
  • Weight: 920
  • Number of cameras: 1
  • Manual: Yes
  • Packaging content: 1 FLEXIDOME indoor 5100i IR - 5 MP camera 1 T-20 security Torx Allen key 1 8-pin terminal block 1 Adapter plate for cable conduit (Ø 3/4" / M25) 1 Adapter plate for cable conduit (Ø 1/2" / M20) 1 RJ45 guider 1 Mount plate 1 Safety information 1 Quick inst
  • Doesnt contain: PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01102
  • Unit Calculated Weight: 1.5
