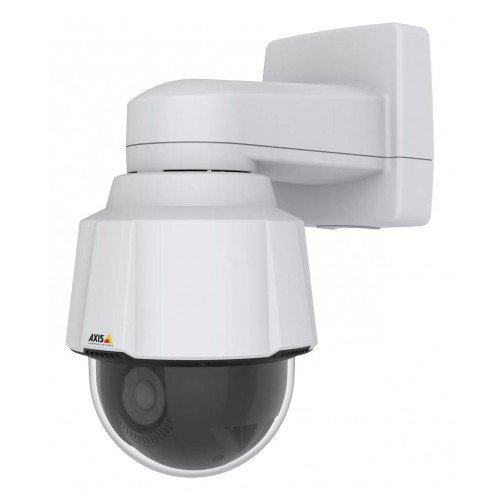

NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS

Technical Specifications

• Summary: Axis 01681-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
• Vendor Homepage: https://www.axis.com/products/axis-p5655-e
• Name: NET CAMERA P5655-E 50HZ PTZ/01681-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: Black/White
• Housing material: Aluminium
• Protection features: Shock resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Weatherproof: Yes
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Certification: NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1,
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.02
• Lens viewing angle, horizontal: 58.7
• Lens viewing angle, vertical: 35.7
• Tilt angle range: 0 - 180
• Tilt speed: 350
• Pan range: 0 - 360
• Pan speed: 350
• Camera shutter speed: 1/66500 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Digital zoom: 12
• Number of lenses: 1
• Focal length range: 4.3 - 137.6
• Auto focus: Yes
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Maximum resolution: 1920 x 1080
• Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 180
• Supported video modes: 1080p
• Frame rate: 60
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio formats supported: ADPCM/LC-AAC/LPCM/PCM
• Sample rate: 48
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Flash memory: 512
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• DC-in jack: Yes
• Password protection: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption (typical): 10.5
• Power consumption (max): 19
• Operating temperature (T-T): -30 - 55
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 10 - 100
• Width: 188
• Depth: 188
• Height: 217
• Weight: 2500
• Number of cameras: 1
• Mounting kit: Yes
• Manual: Yes
• Harmonized System (HS) code: 85258900
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01974
• Unit Calculated Weight: 3.26
