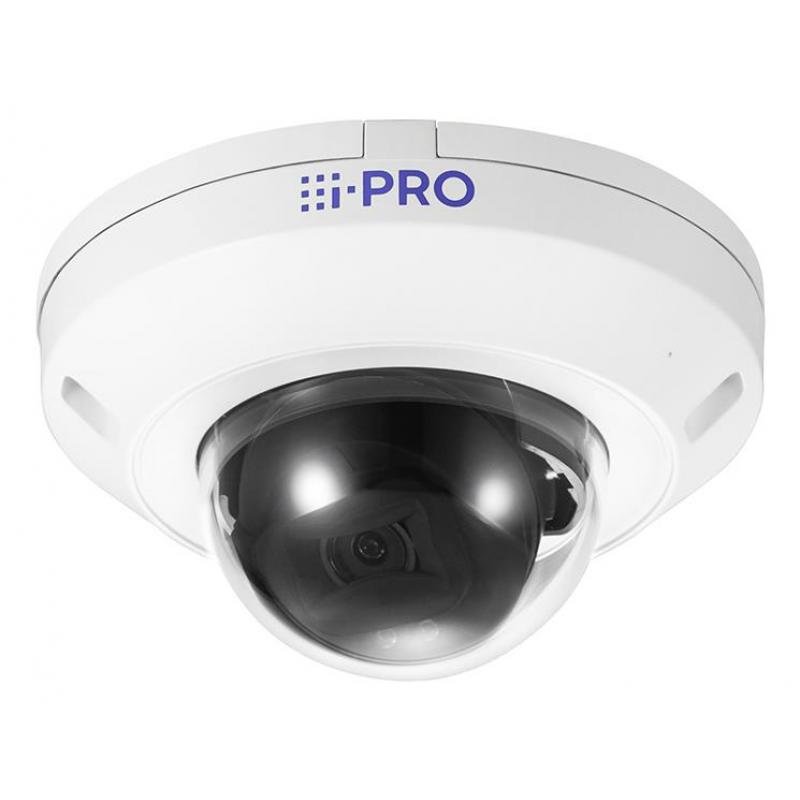

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO

NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO
NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO
  • Connectivity technology: Wired
  • Total megapixels: 2
Врз основа на 0 коментари. - Напиши коментар
19,221ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443655
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U22350-F3L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 80°, Pan range: -175 - 175°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Digital zoom: 3x, Detect distance: 29.5 m, Observe distance: 11.8 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u22350-f3l
  • Name: NET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO
  • Category Code: FNC
  • Model: WV-U22350-F3L
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • International Protection (IP) code: IP42
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Alarm input/output: Yes
  • Dynamic range: 102
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  • Minimum illumination: 0.07
  • Tilt angle range: -30 - 80
  • Pan range: -175 - 175
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/30
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Digital zoom: 3
  • Detect distance: 29.5
  • Observe distance: 11.8
  • Recognize distance: 5.9
  • Focal length range: 3.2
  • Identify distance: 2.9
  • Night vision: Yes
  • Night vision distance: 42
  • LED type: IR
  • Total megapixels: 2
  • Video formats supported: H.264/H.265
  • Frame rate: 30
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Power source type: PoE
  • Power consumption: 200
  • Power consumption (typical): 9.6
  • DC output voltage: 48
  • Operating temperature (T-T): -10 - 50
  • Operating relative humidity (H-H): 10 - 90
  • Width: 109
  • Depth: 109
  • Height: 62
  • Weight: 250
  • Compliance certificates: cUL/Federal Communications Commission (FCC)/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.4
Specifications
Alarm input/outputYes
Back Light Compensation (BLC)Yes
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/10000 - 16/30
Card reader integratedYes
CertificationUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatescUL/Federal Communications Commission (FCC)/UL
Connectivity technologyWired
DC output voltage48
Depth109
Detect distance29.5
Digital zoom3
Dynamic range102
Focal length range3.2
Fog proofYes
Form factorDome
Frame rate30
Height62
Highlight Compensation (HLC)Yes
Identify distance2.9
IK codeIK10
International Protection (IP) codeIP42
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Maximum memory card size512
Minimum illumination0.07
Mounting typeCeiling
Night visionYes
Night vision distance42
Number of cameras1
Number of languages9
Number of users14
Observe distance11.8
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-10 - 50
Optical sensor size1/2.8
Pan range-175 - 175
Placement supportedIndoor
Power consumption (typical)9.6
Power source typePoE
Product colourBlack/White
Recognize distance5.9
Sensor typeCMOS
Streaming methodMulticast/Unicast
Summaryi-PRO WV-U22350-F3L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 80°, Pan range: -175 - 175°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Digital zoom: 3x, Detect distance: 29.5 m, Observe distance: 11.8 m
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
Tilt angle range-30 - 80
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265
Weight250
White balanceATW/AWC
Width109
Specs
Category CodeFNC
Description

2MP AI Indoor Vandal IR Dome Camera

  • 2MP Indoor vandal dome camera
  • AI-based image analytics using AI-VMD app
  • Audio recording
  • Built-in IR LED (42m/138ft)
  • IP42, IK10 certified
  • Built-in FIPS 140-3 Level 3 Certified SecureElement (EdgeLock® SE052F NXP® Semiconductors)
  • NDAA Compliant

ModelWV-U22350-F3L
NameNET CAMERA 2MP DOME AI INDOOR/VANDAL WV-U22350-F3L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/1b43c71f-904d-431e-bf47-77cbfbc308dc.Jpeg
Power consumption200
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/1b43c71f-904d-431e-bf47-77cbfbc308dc.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight0.4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u22350-f3l
