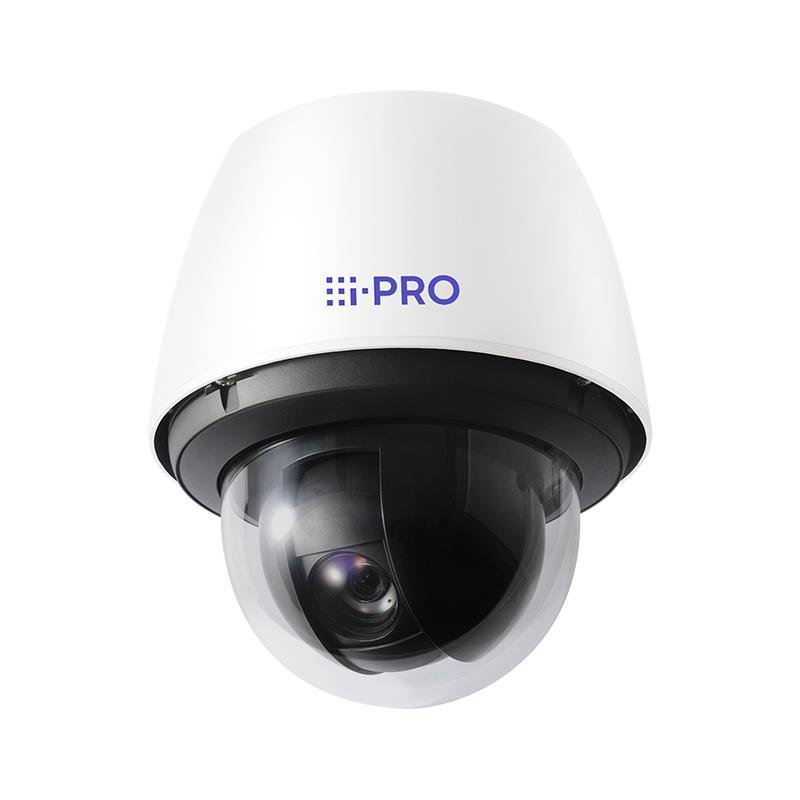

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO
NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
190,148ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454063
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S65340-Z4N. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0004 lx, Tilt angle range: -15 - 195°, Tilt preset speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 16x, Focal length range: 4.25 - 170 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65340-z4n
  • Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Dynamic range: 144
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.0004
  • Tilt angle range: -15 - 195
  • Tilt manual speed: 0.065 - 150
  • Tilt preset speed: 500
  • Pan range: 0 - 360
  • Pan manual speed: 0.065 - 150
  • Pan preset speed: 500
  • White balance: ATW/AWC
  • Camera shutter speed: 1/60 - 1/10000
  • Number of Privacy masking areas: 32
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Digital zoom: 16
  • Focal length range: 4.25 - 170
  • Auto focus: Yes
  • Detect distance (tele): 2095.2
  • Detect distance (wide): 60.3
  • Identify distance (tele): 209.5
  • Identify distance (wide): 6
  • Observe distance (tele): 838.1
  • Observe distance (wide): 24.1
  • Recognize distance (tele): 419
  • Recognize distance (wide): 12.1
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
  • Web browser: Yes
  • Power source type: AC,DC,PoE
  • AC input voltage: 24
  • DC output voltage: 54
  • Operating temperature (T-T): -30 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 278
  • Diameter: 229
  • Weight: 4300
  • Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 5
Specifications
AC input voltage24
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Camera pan controlYes
Camera shutter speed1/60 - 1/10000
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
Compliance certificatesCE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
Connectivity technologyWired
DC output voltage54
Detect distance (tele)2095.2
Detect distance (wide)60.3
Diameter229
Digital zoom16
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Focal length range4.25 - 170
Form factorDome
Height278
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)209.5
Identify distance (wide)6
IK codeIK10
International Protection (IP) codeIP66, IP67
Maximum resolution1920 x 1080
Minimum illumination0.0004
Mounting typeCeiling
Noise reductionYes
Number of cameras1
Number of Privacy masking areas32
Number of users14
Observe distance (tele)838.1
Observe distance (wide)24.1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 60
Optical sensor size1/2.8
Optical zoom40
Pan manual speed0.065 - 150
Pan preset speed500
Pan range0 - 360
Placement supportedOutdoor
Power source typeAC,DC,PoE
Product colourWhite
PTZ controlYes
Recognize distance (tele)419
Recognize distance (wide)12.1
Sensor typeCMOS
Summaryi-PRO WV-S65340-Z4N. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0004 lx, Tilt angle range: -15 - 195°, Tilt preset speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 16x, Focal length range: 4.25 - 170 mm
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
Tilt angle range-15 - 195
Tilt manual speed0.065 - 150
Tilt preset speed500
Total megapixels2
TypeIP security camera
Web browserYes
Weight4300
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

S series models come standard with AI automatic tracking. It can automatically detect, zoom, and track intruders in a wide area, thereby supporting surveillance operators in many scenes. It also achieves the industry‘s highest level of drive durability to withstand high-speed and high-frequency camera movement by the automatic monitoring function.


  • 2MP (1080p) 1920x1080
  • Intelligent Auto (with AI Engine)
  • Color night vision (0.001 to 0.015 lx)
  • Durable Pan/Tilt gear mechanism
  • ClearSight Coating
  • IP66, IP67, IK10 certified
  • 40x optical zoom
  • Super Dynamic 144dB
  • Built-in FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/8cfed003-bc47-4ea7-819f-bcc1c863c240.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/8cfed003-bc47-4ea7-819f-bcc1c863c240.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65340-z4n
