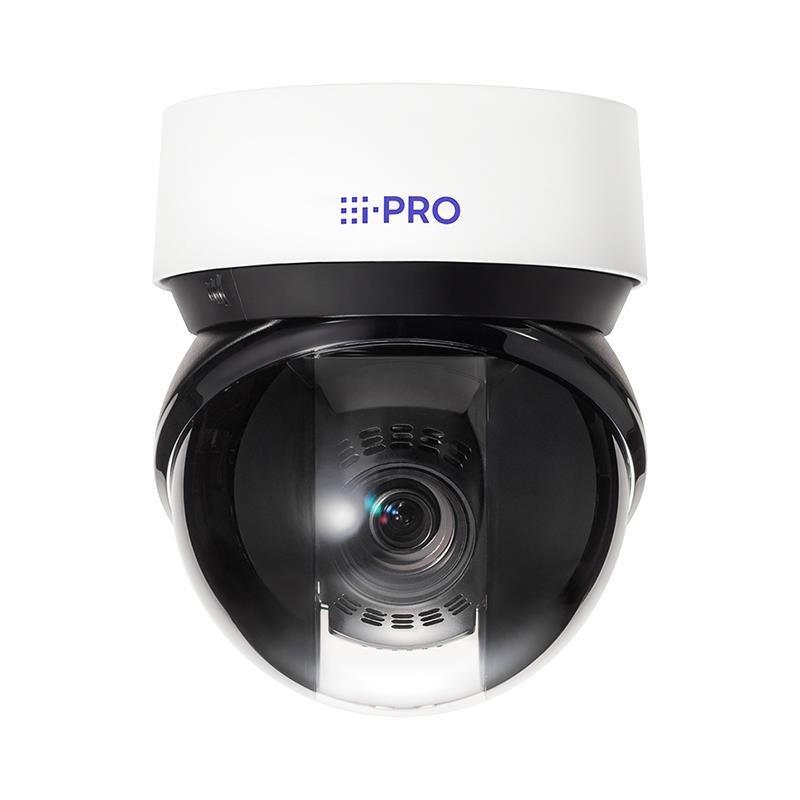

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO
NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
165,391ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454050
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S66300-Z3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Spherical. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Tilt angle range: -20 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Focal length range: 4.25 - 136 mm, Detect distance (wide): 60.3 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66300-z3
  • Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO
  • Category Code: FNC
  • Form factor: Spherical
  • Mounting type: Ceiling
  • Product colour: Black/White
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Auto pan/Preset point
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Dynamic range: 144
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 NEMA-TS2
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.006
  • Angle of rotation: 360
  • Tilt angle range: -20 - 90
  • Tilt preset speed: 700
  • Tilt speed: 150
  • Pan preset speed: 500
  • Pan speed: 150
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 1/60
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Focal length range: 4.25 - 136
  • Detect distance (tele): 1833.2
  • Detect distance (wide): 60.3
  • Identify distance (tele): 183.3
  • Identify distance (wide): 6
  • Observe distance (tele): 733.3
  • Observe distance (wide): 24.1
  • Recognize distance (tele): 366.6
  • Recognize distance (wide): 12.1
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video formats supported: H.264/H.265
  • Frame rate: 60
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Alarm input channels: 3
  • Power source type: PoE
  • Power consumption: 700
  • Power consumption (typical): 37.8
  • Operating temperature (T-T): -50 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 205
  • Diameter: 167
  • Weight: 3000
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.015
  • Unit Calculated Weight: 4
Specifications
Alarm input channels3
Angle of rotation360
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Bit rate range16 - 128
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/10000 - 1/60
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 NEMA-TS2
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Detect distance (tele)1833.2
Detect distance (wide)60.3
Diameter167
Dynamic range144
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.25 - 136
Form factorSpherical
Frame rate60
Height205
Highlight Compensation (HLC)Yes
Identify distance (tele)183.3
Identify distance (wide)6
IK codeIK10
International Protection (IP) codeIP66
Maximum memory card size512
Maximum resolution1920 x 1080
Minimum illumination0.006
Mounting typeCeiling
Number of cameras1
Observe distance (tele)733.3
Observe distance (wide)24.1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/2.8
Optical zoom32
Pan preset speed500
Pan speed150
Placement supportedOutdoor
Power consumption (typical)37.8
Power source typePoE
Preset pointsYes
Product colourBlack/White
PTZ controlYes
PTZ modesAuto pan/Preset point
Recognize distance (tele)366.6
Recognize distance (wide)12.1
Sensor typeCMOS
Summaryi-PRO WV-S66300-Z3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Spherical. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Tilt angle range: -20 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Focal length range: 4.25 - 136 mm, Detect distance (wide): 60.3 m
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
Tilt angle range-20 - 90
Tilt preset speed700
Tilt speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265
Weight3000
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

2MP Outdoor 32x PTZ Network Camera with AI engine

  • 2MP 32x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 2 Edge AI analytic apps
  • AI auto tracking
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/e7a5aa53-83fe-4c35-ae99-19332f856338.Jpeg
Power consumption700
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/e7a5aa53-83fe-4c35-ae99-19332f856338.Jpeg
Unit Calculated Volume0.015
Unit Calculated Weight4
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66300-z3
