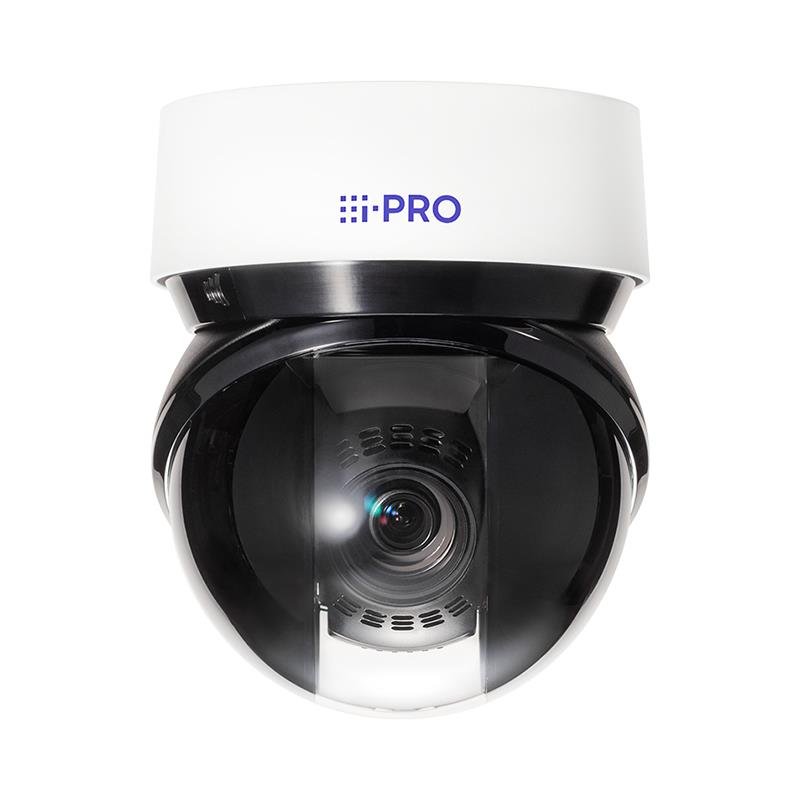

NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LK I-PRO

NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LK I-PRO
NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LK I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
270,036ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453945
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-X66300-Z4LK. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 1.5 - 65°, Lens viewing angle, vertical: 1.2 - 39°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 40x, Focal length range: 4.25 - 170 mm, Focus: Motorized
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x66300-z4lk
  • Name: NET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LK I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • Protection features: Tamper resistant/Wind resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Preset point
  • Auto-tracking: Yes
  • Auto pan mode: Yes
  • Auto patrol mode: Yes
  • Preset points: Yes
  • Alarm input/output: Yes
  • Dynamic range: 144
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.006
  • Lens viewing angle, horizontal: 1.5 - 65
  • Lens viewing angle, vertical: 1.2 - 39
  • Tilt angle range: -20 - 90
  • Tilt preset speed: 500
  • Tilt speed: 150
  • Pan range: 0 - 360
  • Pan speed: 700
  • White balance: ATW/AWC
  • Camera shutter speed: 16/25 - 1/10000
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 5.57 x 3.13
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 40
  • Number of lenses: 1
  • Focal length range: 4.25 - 170
  • Focus: Motorized
  • Maximum aperture number: 4.95
  • Minimum aperture number: 1.6
  • Closest focusing distance: 3
  • Detect distance (tele): 2199.9
  • Detect distance (wide): 60.3
  • Identify distance (tele): 220
  • Identify distance (wide): 6
  • Observe distance (tele): 880
  • Observe distance (wide): 24.1
  • Recognize distance (tele): 440
  • Recognize distance (wide): 12.1
  • Night vision: Yes
  • Night vision distance: 350
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
  • Frame rate: 60
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3bt
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption: 850
  • Power consumption (Power over Ethernet (PoE)): 45.9
  • Operating temperature (T-T): -50 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: iOS 8.0
  • Width: 167
  • Depth: 167
  • Height: 205
  • Weight: 3000
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 3.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Auto pan modeYes
Auto patrol modeYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed16/25 - 1/10000
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
Closest focusing distance3
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
Depth167
Detect distance (tele)2199.9
Detect distance (wide)60.3
Digest authenticationYes
Dynamic range144
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range4.25 - 170
FocusMotorized
Fog proofYes
Form factorDome
Frame rate60
Gain control typeAuto
Height205
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
HTTPS encryptionYes
Identify distance (tele)220
Identify distance (wide)6
IK codeIK10
Image stabilizerYes
Intelligent Video Surveillance (IVS) system featuresFace detection/Scene change/Vehicle detection
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
Lens viewing angle, horizontal1.5 - 65
Lens viewing angle, vertical1.2 - 39
Maximum aperture number4.95
Maximum memory card size512
Maximum resolution2048 x 1536
Microphone inYes
Minimum aperture number1.6
Minimum illumination0.006
Mobile operating systems supportediOS 8.0
Mounting typeCeiling
Networking standardsIEEE 802.3bt
Night visionYes
Night vision distance350
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)5.57 x 3.13
Number of languages9
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Number of users14
Observe distance (tele)880
Observe distance (wide)24.1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-50 - 60
Optical sensor size1/2.8
Optical zoom40
Pan range0 - 360
Pan speed700
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))45.9
Power source typePoE
Preset pointsYes
Privacy maskingYes
Product colourBlack
Protection featuresTamper resistant/Wind resistant
PTZ controlYes
PTZ modesPreset point
Recognize distance (tele)440
Recognize distance (wide)12.1
Security algorithmsFIPS 140-2
Sensor typeCMOS
Summaryi-PRO WV-X66300-Z4LK. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 1.5 - 65°, Lens viewing angle, vertical: 1.2 - 39°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 40x, Focal length range: 4.25 - 170 mm, Focus: Motorized
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
Text caption overlayYes
Tilt angle range-20 - 90
Tilt preset speed500
Tilt speed150
Total megapixels2
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight3000
White balanceATW/AWC
Width167
Zoom capabilityYes
Specs
Category CodeFNC
Description

Rapid PTZ camera with AI engine and IR-LED

2MP Outdoor 40x PTZ Network Camera with AI engine

  • 2MP 40x PTZ camera
  • Innovative New Form Factor PTZ
  • Up to 2 Edge AI analytic apps
  • AI auto tracking
  • Built-in IR-LED (250m/820ft)
  • High speed Pan/Tilt drive (Pan: 700deg./s, Tilt: 500deg./s)
  • Heavy salt damage resistance specifications (ISO 14993 compliant)
  • IP66, IK10 certified

NameNET CAMERA 2MP PTZ AI OUTD./WV-X66300-Z4LK I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/d3e6a07f-e0ef-4abe-b4a4-8deba51149ad.Jpeg
Power consumption850
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d3e6a07f-e0ef-4abe-b4a4-8deba51149ad.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight3.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-x66300-z4lk
