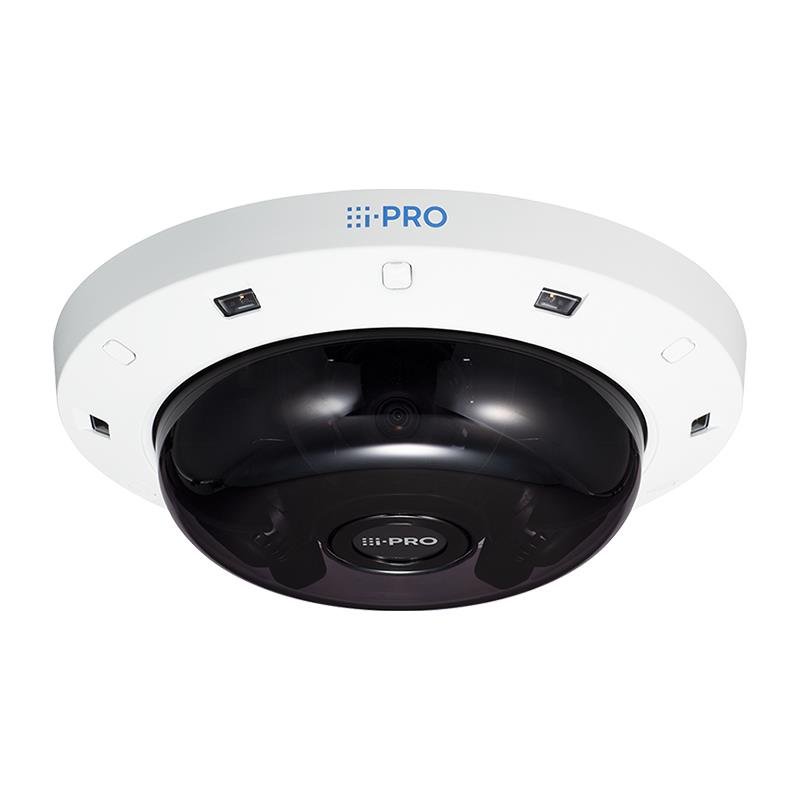

NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8543LG I-PRO

NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8543LG I-PRO
NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8543LG I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
123,266ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453987
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S8543LG. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.34 lx, Field of view (FOV) angle: 270°, Lens viewing angle, horizontal: 43 - 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 5.38 x 3.02 pixels. Optical zoom: 10.5x, Focal length range: 2.9 - 7.3 mm, Detect distance (wide): 45.1 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8543lg
  • Name: NET CAMERA 4MP DOME AI OUTDOOR/VANDAL WV-S8543LG I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Alarm input/output: Yes
  • Dynamic range: 108
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Camera tilt control: Yes
  • Minimum illumination: 0.34
  • Field of view (FOV) angle: 270
  • Lens viewing angle, horizontal: 43 - 100
  • Lens viewing angle, vertical: 24 - 56
  • Tilt angle range: 10 - 105
  • Pan range: -125 - 125
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 16/30
  • Number of Privacy masking areas: 8
  • Number of sensors: 3
  • Optical sensor size: 1/2.7
  • Number of effective pixels (H x V): 5.38 x 3.02
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 10.5
  • Number of lenses: 3
  • Focal length range: 2.9 - 7.3
  • Auto focus: Yes
  • Maximum aperture number: 3
  • Minimum aperture number: 2
  • Closest focusing distance: 1
  • Detect distance (tele): 136.5
  • Detect distance (wide): 45.1
  • Identify distance (tele): 13.6
  • Identify distance (wide): 4.5
  • Observe distance (tele): 54.6
  • Observe distance (wide): 18
  • Recognize distance (tele): 27.3
  • Recognize distance (wide): 9
  • Night vision: Yes
  • Night vision distance: 15
  • LED type: IR
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 12
  • Video compression formats: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/640 x 360
  • Frame rate: 30
  • Noise reduction: Yes
  • Gain control type: Auto
  • Back Light Compensation (BLC): Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Highlight Compensation (HLC): Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: G.711/G.726
  • Audio detection: Yes
  • Bit rate range: 16 - 128
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet/Gigabit Ethernet
  • Networking standards: IEEE 802.3at
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
  • Number of users: 24
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Alert notification type: E-mail
  • Intelligent Video Surveillance (IVS) system features: Face detection/Vehicle detection
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 470
  • Power consumption (typical): 25.4
  • DC output voltage: 54
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Width: 300
  • Depth: 300
  • Height: 90
  • Weight: 4100
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01
  • Unit Calculated Weight: 4.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Audio detectionYes
Audio formats supportedG.711/G.726
Audio system full duplexYes
Auto focusYes
Back Light Compensation (BLC)Yes
Bit rate controlVariable Bit Rate (VBR)
Bit rate range16 - 128
Camera shutter speed1/10000 - 16/30
Camera tilt controlYes
Card reader integratedYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Closest focusing distance1
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
DC output voltage54
Depth300
Detect distance (tele)136.5
Detect distance (wide)45.1
Dynamic range108
Ethernet interface typeFast Ethernet/Gigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle270
Focal length range2.9 - 7.3
Fog proofYes
Form factorDome
Frame rate30
Gain control typeAuto
Height90
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)/Stainless steel
Identify distance (tele)13.6
Identify distance (wide)4.5
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/Vehicle detection
International Protection (IP) codeIP66, IP67
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal43 - 100
Lens viewing angle, vertical24 - 56
Maximum aperture number3
Maximum memory card size512
Maximum resolution2688 x 1520
Microphone inYes
Minimum aperture number2
Minimum illumination0.34
Mounting typeCeiling
Networking standardsIEEE 802.3at
Night visionYes
Night vision distance15
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)5.38 x 3.02
Number of languages9
Number of lenses3
Number of Privacy masking areas8
Number of sensors3
Number of users24
Observe distance (tele)54.6
Observe distance (wide)18
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.7
Optical zoom10.5
Pan range-125 - 125
Placement supportedOutdoor
Power consumption (typical)25.4
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Recognize distance (tele)27.3
Recognize distance (wide)9
Security algorithmsFIPS 140-2
Sensor typeCMOS
Summaryi-PRO WV-S8543LG. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.34 lx, Field of view (FOV) angle: 270°, Lens viewing angle, horizontal: 43 - 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 5.38 x 3.02 pixels. Optical zoom: 10.5x, Focal length range: 2.9 - 7.3 mm, Detect distance (wide): 45.1 m
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGM
Text caption overlayYes
Tilt angle range10 - 105
Total megapixels12
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Web browserYes
Weight4100
White balanceATW/AWC
Width300
Zoom capabilityYes
Specs
Category CodeFNC
Description

The thinnest multi-directional camera (3.5 inches/90 mm)

It can be fitted in not only outside, but it also is fitted in inside the facility. (Low profile/Blends in seamlessly with environment) Even though it is rated IK10, it achieves the light weight body.

A variety kinds of AI Apps selection

It can install and use up to 4 different types of AI Apps all together. Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries. Also, new multi-directional has IR-LED function which will increase AI intruder detection accuracy in the low light environment.

Easy installation

- Just 1 LAN cable covers 3 directions.
- Thin and hook architecture make easy installation
- Continuous view assistance by using smartphone navigates you the best angle position.
- You can change angle by using motorized zoom after installation.

High security standard

Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.







  • 3 x 4MP(12MP) 2688x1520 up to 30fps
  • 270° coverage with one IP address
  • Intelligent Auto (with AI Engine)
  • Super Dynamic 108dB
  • Color night vision (0.21 to 0.3 lx)
  • Smart Coding (with AI Engine)
  • Built-in 360° IR LED
  • Remote zoom and focus
  • Continuous view assistance
  • Wide range tilt angle adjustment mechanism
  • NDAA Compliant
