NET CAMERA M3905-R DOME/03118-001 AXIS

NET CAMERA M3905-R DOME/03118-001 AXIS
NET CAMERA M3905-R DOME/03118-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
25,647ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 434253
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m
  • Vendor Homepage: https://www.axis.com/products/axis-m3905-r
  • Name: NET CAMERA M3905-R DOME/03118-001 AXIS
  • Category Code: FNC
  • Model: M3905-R
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Tour recording: Yes
  • Preset points: Yes
  • Wide Dynamic Range (WDR): Yes
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Certification: CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A, Korea: KS C 9835,
  • Minimum illumination: 0.02
  • Angle of rotation: 350
  • Lens viewing angle, horizontal: 107
  • Lens viewing angle, vertical: 56
  • Tilt angle range: 15 - 90
  • Pan range: -30 - 30
  • Camera pixel size: 2.8
  • Camera shutter speed: 1/19000 - 1/5
  • Number of Privacy masking areas: 32
  • Number of sensors: 1
  • Optical sensor size: 1/2.9
  • Sensor type: CMOS
  • Number of lenses: 1
  • Detect distance: 21.1
  • Observe distance: 7.4
  • Recognize distance: 4.2
  • Identify distance: 2.1
  • Maximum aperture number: 1.2
  • Closest focusing distance: 0.3
  • Fixed focal length: 2.8
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1280 x 800/1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360/640 x 400
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Sharpness
  • Privacy masking: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP,
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • Pixel counter: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP
  • Video motion detection: Yes
  • Power source type: PoE
  • Power consumption (typical): 2.2
  • Power consumption (max): 3.8
  • Operating temperature (T-T): -30 - 55
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Width: 110
  • Depth: 110
  • Height: 50
  • Weight: 241
  • Compliance certificates: REACH/RoHS
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: CFR/PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.373
Specifications
Alert notification typeE-mail
Angle of rotation350
Bit rate controlVariable Bit Rate (VBR)
Camera pixel size2.8
Camera shutter speed1/19000 - 1/5
Card reader integratedYes
CertificationCE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A, Korea: KS C 9835,
Closest focusing distance0.3
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesREACH/RoHS
Connectivity technologyWired
Depth110
Detect distance21.1
Digest authenticationYes
Doesn\'t containCFR/PVC/BFR
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.8
Flash memory512
Form factorDome
Frame rate30
Height50
Housing materialAluminium
Identify distance2.1
IK codeIK10
Image quality adjustmentBrightness/Contrast/Sharpness
Internal memory1024
International Protection (IP) codeIP66, IP67
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Lens viewing angle, horizontal107
Lens viewing angle, vertical56
ManualYes
Maximum aperture number1.2
Maximum resolution1920 x 1080
Minimum illumination0.02
Mounting typeCeiling
Networking standardsIEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of lenses1
Number of Privacy masking areas32
Number of sensors1
Observe distance7.4
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 55
Optical sensor size1/2.9
Pan range-30 - 30
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)3.8
Power consumption (typical)2.2
Power source typePoE
Preset pointsYes
Privacy maskingYes
Product colourBlack/White
PTZ controlYes
PTZ modesDigital PTZ
Recognize distance4.2
Security algorithms256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP
Sensor typeCMOS
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m
Supported graphics resolutions1280 x 800/1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360/640 x 400
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP,
Tilt angle range15 - 90
Total megapixels2
Tour recordingYes
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video motion detectionYes
Video streamingYes
Weight241
Wide Dynamic Range (WDR)Yes
Width110
Specs
Category CodeFNC
Description

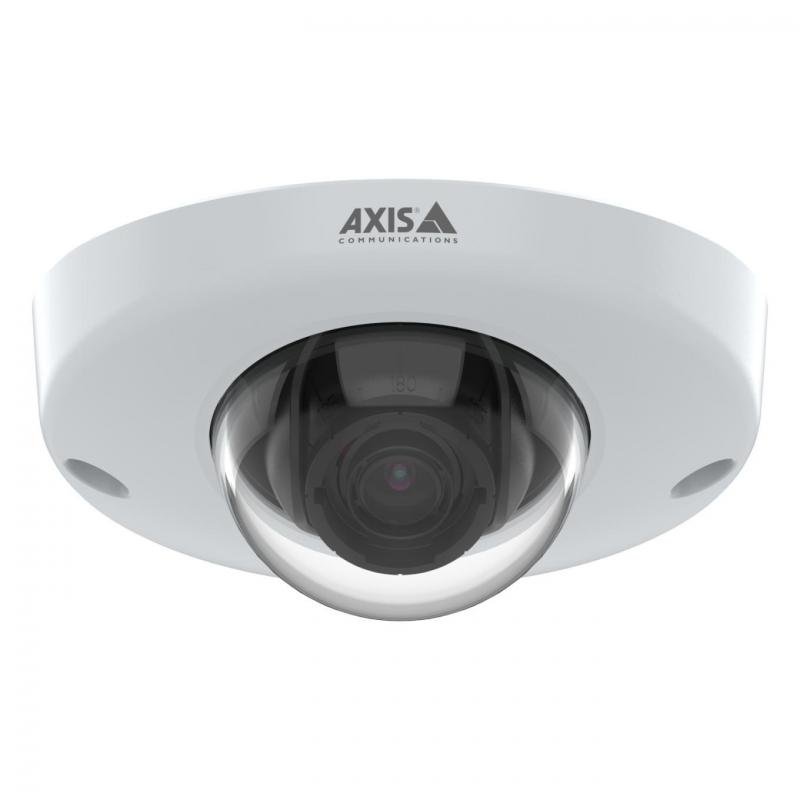

AXIS M3905-R Dome Camera

Specifically designed for indoor surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.

Optimized for surveillance onboard buses

This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, this product comes in two different product variations with different lens options. And additionally, there are various lens options available as accessories for customized monitoring purposes.

For tough onboard conditions

AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged indoor camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXIS TP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather.

Secure and cost-effective

This onboard indoor camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions.


ModelM3905-R
NameNET CAMERA M3905-R DOME/03118-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/d9a3b8bf-28b2-49be-91cf-79b8b106bc18.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d9a3b8bf-28b2-49be-91cf-79b8b106bc18.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight0.373
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m3905-r
