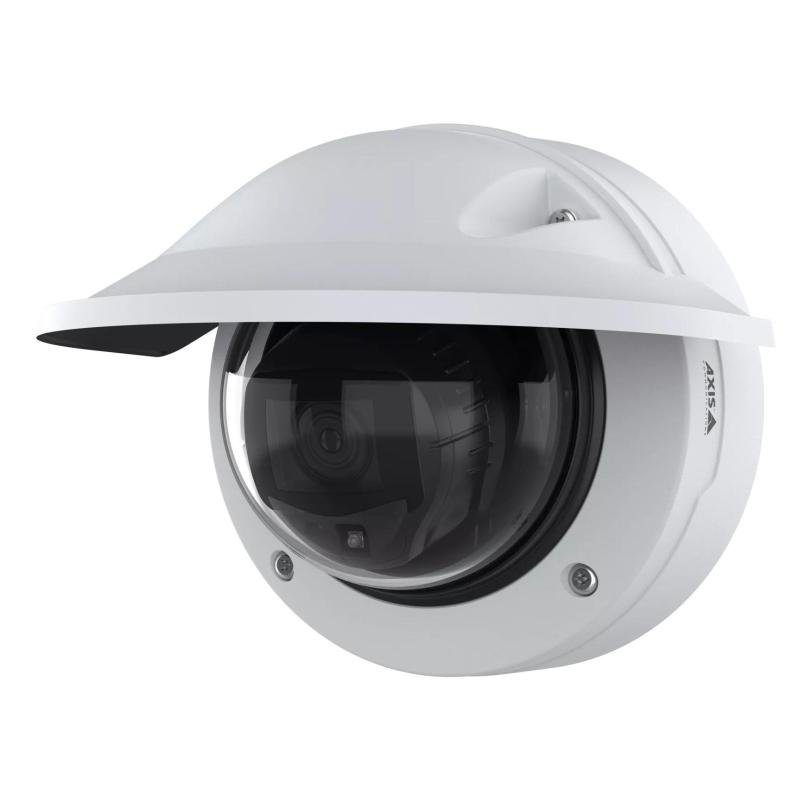

NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS

NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS
NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
69,792ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 450291
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis P3277-LVE Mic. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 104 - 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m, Detect distance (tele): 170 m
  • Vendor Homepage: https://www.axis.com/products/axis-p3277-lve
  • Name: NET CAMERA P3277-LVE 5MP DOME/03213-001 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Plastic/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Alarm input/output: Yes
  • Built-in processor: Yes
  • Processor model: ARTPEC-9
  • Dynamic range: 120
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.03
  • Angle of rotation: 95
  • Lens viewing angle, horizontal: 104 - 34
  • Lens viewing angle, vertical: 76 - 26
  • Tilt angle range: -45 - 80
  • Pan range: -190 - 190
  • Camera pixel size: 2
  • Camera shutter speed: 1/30500 - 2
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Focal length range: 3 - 8.5
  • Auto focus: Yes
  • Maximum aperture number: 2.58
  • Minimum aperture number: 1.38
  • Detect distance (tele): 170
  • Detect distance (wide): 60
  • Identify distance (tele): 17
  • Identify distance (wide): 6
  • Observe distance (tele): 67
  • Observe distance (wide): 24
  • Recognize distance (tele): 34
  • Recognize distance (wide): 12
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video compression formats: H.264/H.265/M-JPEG
  • Video recording: Yes
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Gain control type: Auto
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Built-in microphone: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
  • Quality of Service (QoS) support: Yes
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • RAM capacity: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes
  • Network access storage (NAS): Yes
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 4.7
  • Power consumption (max): 12.6
  • DC output voltage: 12
  • DC output current: 0.025
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Weight: 850
  • Number of cameras: 1
  • Mounting kit: Yes
  • Manual: Yes
  • Unit Calculated Volume: 0.00663
  • Unit Calculated Weight: 1.2
Specifications
Alarm input/outputYes
Angle of rotation95
Audio system2-way
Audio system full duplexYes
Auto focusYes
Built-in microphoneYes
Built-in processorYes
Camera pan controlYes
Camera pixel size2
Camera shutter speed1/30500 - 2
Camera tilt controlYes
Card reader integratedYes
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output current0.025
DC output voltage12
DC-in jackYes
Detect distance (tele)170
Detect distance (wide)60
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory8192
Focal length range3 - 8.5
Form factorDome
Frame rate30
Gain control typeAuto
Housing materialPlastic/Polycarbonate (PC)
Identify distance (tele)17
Identify distance (wide)6
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness/White balance
Infra-red wavelength850
Infrared (IR) cut-off filterYes
International Protection (IP) codeIP66
LED indicatorsYes
LED typeIR
Lens viewing angle, horizontal104 - 34
Lens viewing angle, vertical76 - 26
ManualYes
Maximum aperture number2.58
Maximum resolution2592 x 1944
Microphone inYes
Minimum aperture number1.38
Minimum illumination0.03
Mounting kitYes
Mounting typeCeiling/wall
Network access storage (NAS)Yes
Networking standardsIEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance40
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of sensors1
Observe distance (tele)67
Observe distance (wide)24
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.8
Pan range-190 - 190
Placement supportedOutdoor
Power consumption (max)12.6
Power consumption (typical)4.7
Power source typeDC,PoE
Processor modelARTPEC-9
Product colourWhite
Progressive scanYes
PTZ controlYes
Quality of Service (QoS) supportYes
RAM capacity2048
Recognize distance (tele)34
Recognize distance (wide)12
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis P3277-LVE Mic. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 104 - 34°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3 - 8.5 mm, Detect distance (wide): 60 m, Detect distance (tele): 170 m
Terminal block portYes
Text caption overlayYes
Tilt angle range-45 - 80
Total megapixels5
TypeIP security camera
Video compression formatsH.264/H.265/M-JPEG
Video motion detectionYes
Video recordingYes
Video streamingYes
Weight850
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. Plus, it's available with a built-in microphone, so it's out-of-the-box-ready for AXIS Audio Analytics.

Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.

Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. And, AXIS P3277-LVE Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics. Furthermore, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.

Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.

  • Excellent image quality in 5 MP
  • Next-generation AI-powered analytics
  • Lightfinder 2.0 and Forensic WDR
  • Variant with built-in microphone
  • Built-in cybersecurity with Axis Edge Vault
